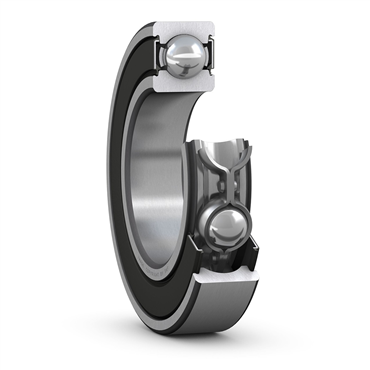

SKF 6304-2RSH/C3GJN Single Row Cylindrical Bore Deep Groove Ball Bearing

Product Description

The SKF 6304-2RSH/C3GJN is a single row cylindrical bore deep groove ball bearing designed for various applications. It features a bore diameter of twenty millimeters and an outer diameter of fifty-two millimeters. This bearing is double sealed to protect against contaminants, ensuring longer service life and reliability.

• Manufactured with bearing steel for durability
• Rated for high speeds up to 9500 RPM
• Designed with C3 internal clearance for operational efficiency

Product Highlights

The SKF 6304-2RSH/C3GJN is suitable for electric motor applications and can handle radial loads.

Product Information

Standard Information

• Brand: SKF
• Part Number: 101175204

Technical Specifications

• Bore Diameter: twenty millimeters
• Outside Diameter: fifty-two millimeters
• Overall Width: fifteen millimeters
• Weight: 0.33 pounds
• Max RPM: 9500 rpm
• Cage Type: Sheet metal
• Internal Clearance: C3
• Operating Temperature Range: -40 to +210 degrees Fahrenheit
