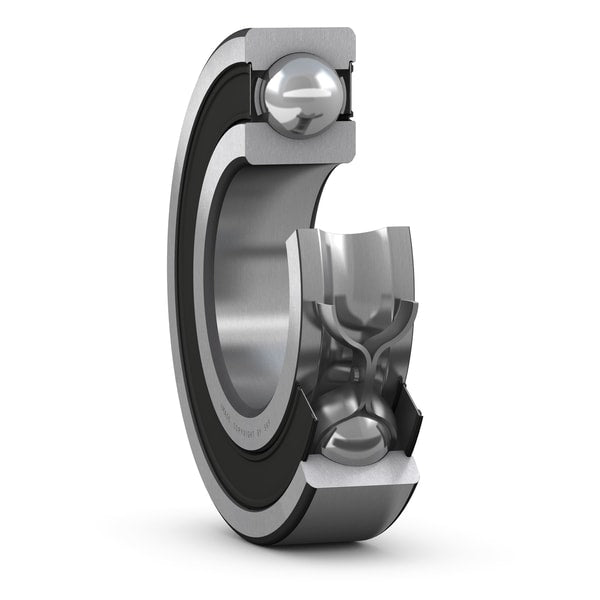

SKF 6217-2RS1 Radial/Deep Groove Ball Bearing - Straight Bore, 85 mm ID, 150 mm OD, 28 mm Width, Double Sealed, Without Snap Ring

Product Description

The SKF 6217-2RS1 is a radial and deep groove ball bearing designed for high performance in various applications. This bearing features an inner diameter of eighty-five millimeters and an outer diameter of one hundred fifty millimeters. It has a width of twenty-eight millimeters and comes double sealed to protect against contaminants. The design does not include a snap ring, making it versatile for different mounting options.

• Deep groove ball bearing for reliable performance
• Double sealed for protection against dirt and moisture
• Designed for operating temperatures from minus forty to plus two hundred ten degrees Fahrenheit

Product Highlights

The SKF 6217-2RS1 offers excellent load capacity and durability, ensuring longevity in various applications.

Product Information

Standard Information

• Brand: SKF
• MPN: 6217-2RS1

Technical Specifications

• Series: 62
• Weight: 4.11 lbs
• Bore Diameter: 85 mm
• Outside Diameter: 150 mm
• Overall Width: 28 mm
• Precision Rating: ABEC 1
• Radial Dynamic Load Capacity: 19581 lbf
• Radial Static Load Capacity: 14388 lbf
• Internal Clearance: CN
• Operating Temperature Range: -40 to +210 °F
• Cage Type: Sheet metal
• Cage Material: Bearing steel
• Fillet Radius: 2 mm
• Closure Type: Double Sealed
• Snap Ring Included: Without Snap Ring
