SKF 62052ZJEM Radial/Deep Groove Ball Bearing - 25 mm ID, 52 mm OD, 15 mm W, C3 Internal Clearance

Product Description

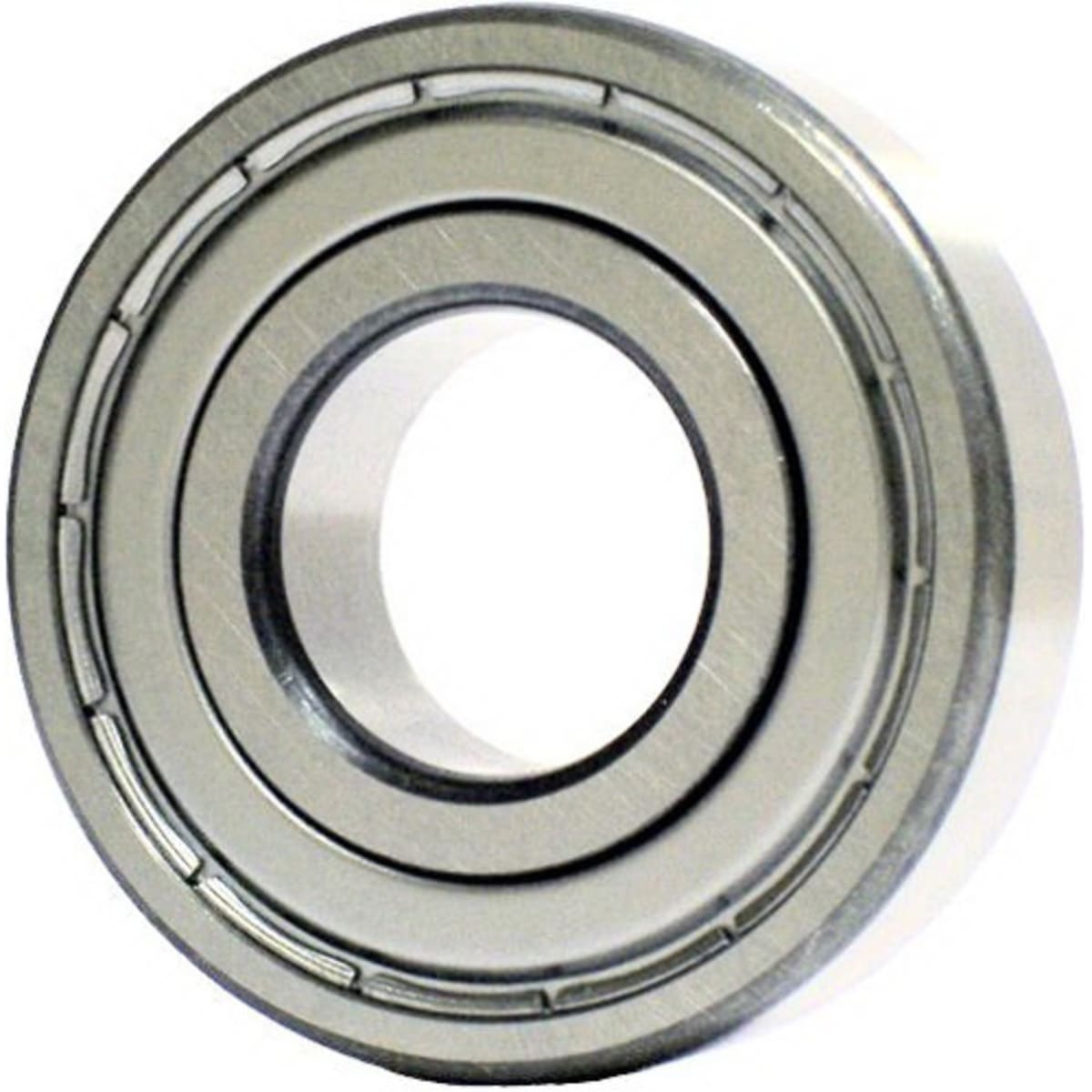

SKF 62052ZJEM is a single row deep groove ball bearing designed to handle radial loads and axial loads in both directions. This bearing features a bore diameter of twenty-five millimeters, an outer diameter of fifty-two millimeters, and a width of fifteen millimeters. The deep grooves provide uninterrupted raceway grooves, ensuring optimal performance in various applications. This model is equipped with double shields made of pressed steel, which enhance its durability and reduce maintenance needs.

• Employs deep grooves for better load handling
• Equipped with double shielding for extended service life
• C3 internal clearance for proper fit

Product Highlights

SKF 62052ZJEM is suitable for fans, pumps, and agricultural applications. Its efficient design promotes low operational costs and minimal maintenance. The bearing operates effectively at high speeds, making it a reliable choice for various machinery.

Product Information

Standard Information

• Brand: SKF BEARINGS
• Part Number: 62052ZJEM

Technical Specifications

• Bore Diameter: 25 mm
• Outside Diameter: 52 mm
• Width: 15 mm
• Dynamic Load Capacity: 14800 N
• Static Load Capacity: 7800 N
• Internal Clearance: C3
• Speed Rating: 14000 rpm Limiting, 28000 rpm Reference
• Temperature Rating: -40 to 100 °C
