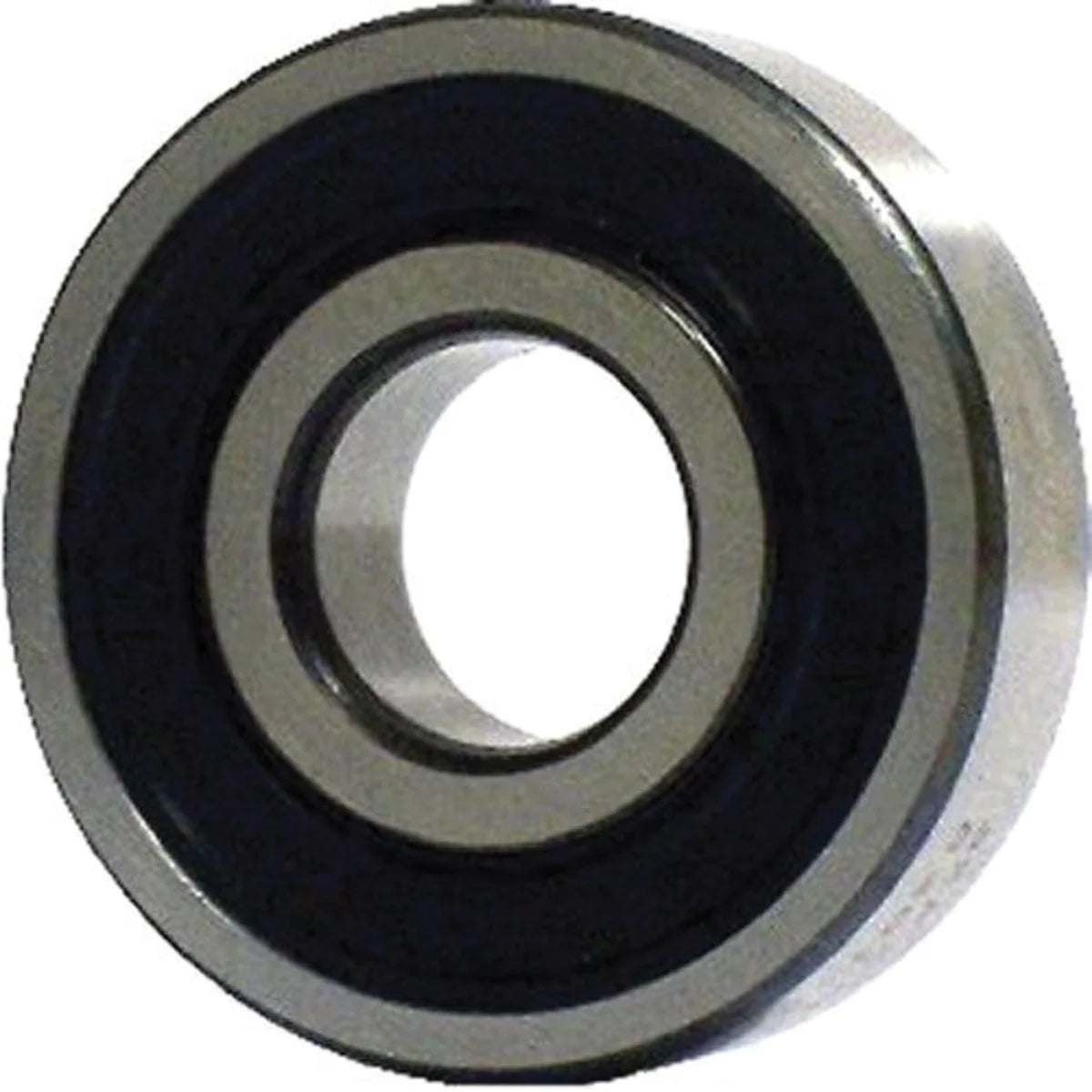

SKF 6205-2RS Single Row Deep Groove Radial Ball Bearing 25 mm Bore x 52 mm OD x 15 mm W

Product Description

The SKF 6205-2RS is a single row deep groove radial ball bearing. This bearing features a bore diameter of twenty-five millimeters, an outer diameter of fifty-two millimeters, and a width of fifteen millimeters. It is designed to handle both radial and axial loads effectively, making it suitable for various applications. The double seal offers enhanced protection against contaminants, while the pressed steel cage ensures durability.

• Double sealed for maximum protection
• Effective in various industrial applications
• Optimized for low maintenance costs

Product Highlights

This bearing is effective in applications such as fans and pumps, ensuring smooth operation and longevity.

Product Information

Standard Information

• Brand: SKF Bearings
• Part Number: 6205-2RS04

Technical Specifications

• Bore Diameter: 25 mm
• Outside Diameter: 52 mm
• Overall Width: 15 mm
• Seal Material: Rubber
• Cage Material: Pressed Steel
• Dynamic Load Capacity: 14800 N
• Static Load Capacity: 7800 N
• Speed Rating: 8500 rpm
• Operating Temperature Range: -40 to 100 °C
