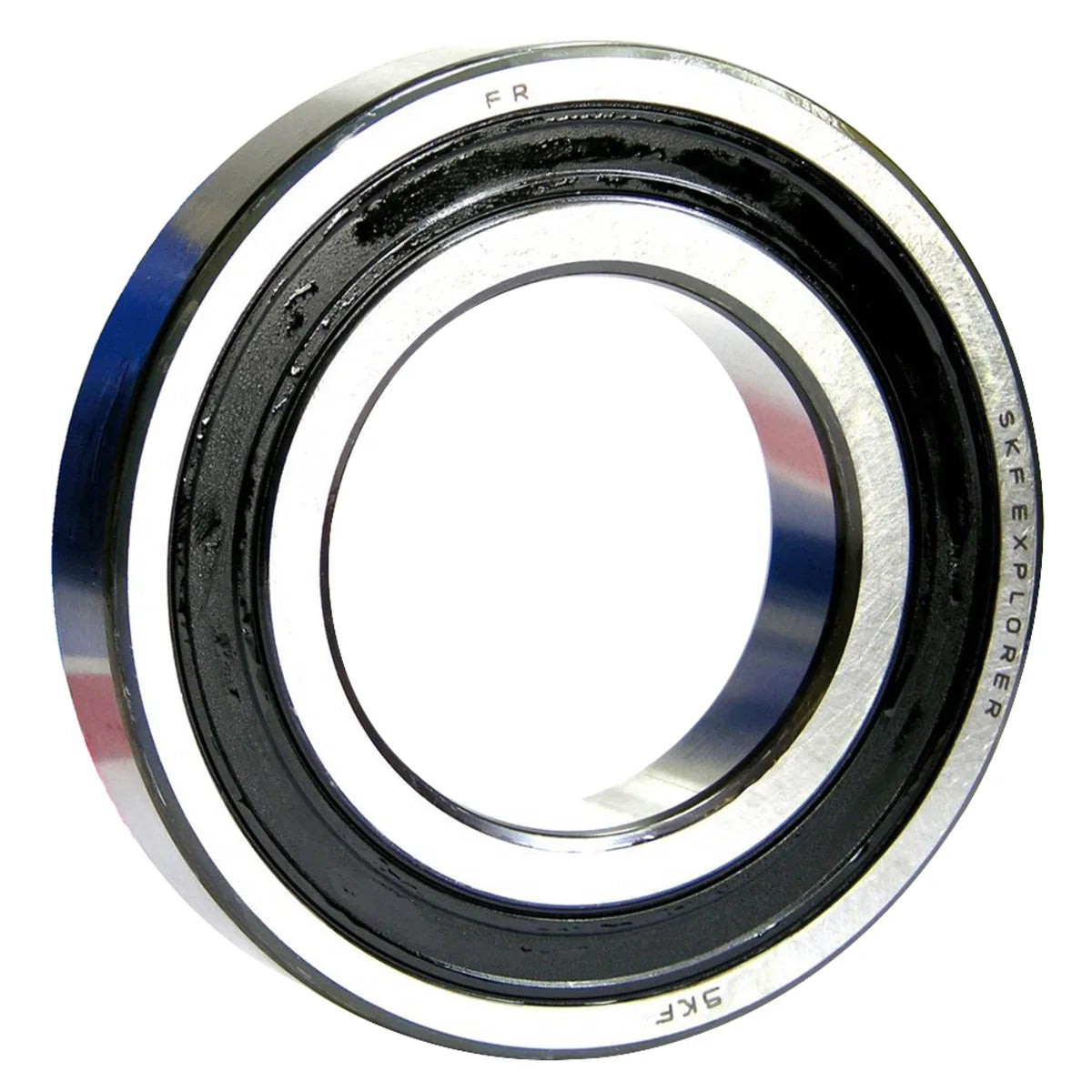

SKF 6204 2RS Single Row Deep Groove Radial Ball Bearing 20 mm Bore x 47 mm OD x 14 mm W Double Seal

Product Description

SKF 6204-2RS is a single row deep groove radial ball bearing with a bore diameter of twenty millimeters, an outside diameter of forty-seven millimeters, and a width of fourteen millimeters. This bearing features two rubber seals that prevent dirt and debris from entering, thus prolonging its operational life. This design allows it to accommodate both radial and axial loads efficiently in either direction.

• Double seal to enhance protection against dirt
• Available for various applications including fans and pumps
• Manufactured with pressed steel cage for improved strength

Product Highlights

This bearing is suitable for various industrial applications and is designed to operate with reduced noise. It is built with a C3 internal clearance, making it ideal for high-speed operations.

Product Information

Standard Information

• Brand: SKF BEARINGS
• Part Number: 6204-2RS04

Technical Specifications

• Bore Diameter: 20 mm
• Outside Diameter: 47 mm
• Width: 14 mm
• Seal Material: Rubber
• Cage Material: Pressed Steel
• Dynamic Load Capacity: 13500 N
• Static Load Capacity: 6500 N
• Speed Rating: 10000 rpm
• Operating Temperature Range: -40 to 100 °C
