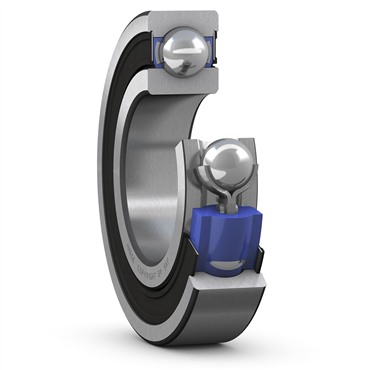

SKF 6012-2RS1/C3W64 | Single Row Cylindrical Bore Deep Groove Ball Bearing

Product Description

The SKF 6012-2RS1/C3W64 is a deep groove ball bearing designed for various applications. It features a cylindrical bore and is suitable for both radial and axial loads. This bearing is made from bearing steel and includes seals on both sides for protection against contaminants.

• Inner diameter of two point three six inches.
• Outer diameter of three point seven four inches.
• Width of zero point seventy one inches.

Product Highlights

This ball bearing ensures reduced friction and increased efficiency in multiple industrial settings.

Product Information

Standard Information

• Brand: SKF
• MPN: 6012-2RS1/C3W64

Technical Specifications

• Element Material: Bearing Steel
• Internal Clearance: C3
• Cage Material: Bearing Steel
• Precision Rating: ABEC 3
• Inner Diameter: 2.36 inches, 60 mm
• Width: 0.71 inches, 18 mm
• Enclosure: Seal on Both Sides
• Seal Type: Contacting Seal
• Rows of Balls: Single
• Rolling Element: Ball
• Bearing Type: Deep Groove
• Outer Ring Width: 0.71 inches, 18 mm
• Bore Type: Cylindrical
• No. of Rows: Single
• Series: 60
• Outer Diameter: 3.74 inches, 95 mm
• Seal Material: Nitrile Rubber (NBR)
• Lubricant: Solid Oil
• Weight: 0.961 LB
• EAN or UPC: 7316571781129
