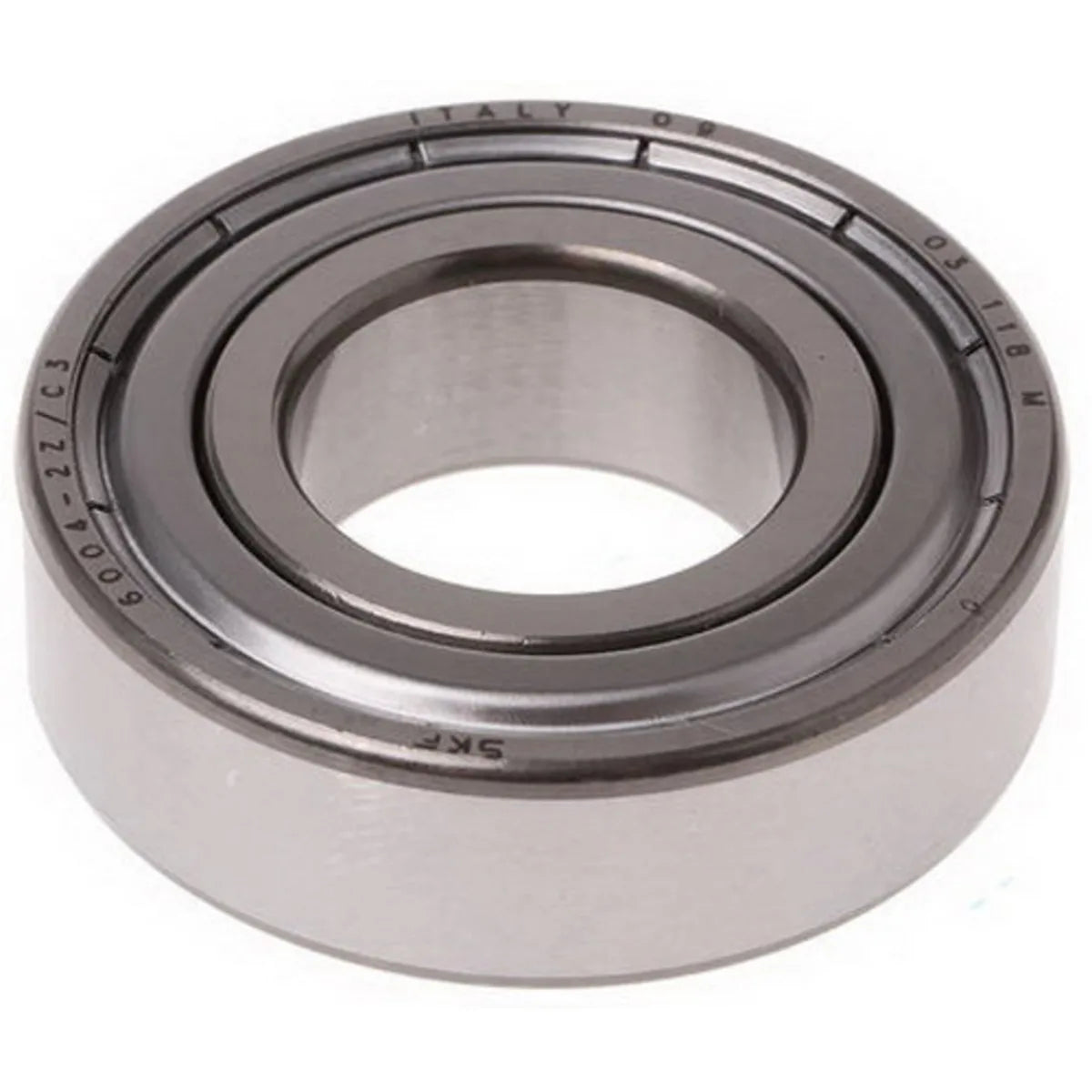

SKF 6004-2Z Single Row Deep Groove Radial Ball Bearing 20 mm Bore x 42 mm OD x 12 mm W

Product Description

SKF 6004-2Z is a single row deep groove radial ball bearing with a bore diameter of twenty millimeters and an outside diameter of forty-two millimeters, featuring a width of twelve millimeters. This bearing includes double shields for enhanced protection and a pressed steel cage. It is designed to accommodate radial loads and axial loads in both directions.

• Single row configuration for versatile applications.
• Temperature rating from minus forty to one hundred degrees Celsius.
• Speed rating up to nineteen thousand rpm limiting, thirty-eight thousand rpm reference.

Product Highlights

This bearing is ideal for applications that require durability and smooth operation, suitable for fans, pumps, and agricultural machinery.

Product Information

Standard Information

• Brand: SKF BEARINGS
• Part Number: 6004ZZ04

Technical Specifications

• Bore Diameter: 20 mm
• Outside Diameter: 42 mm
• Width: 12 mm
• Cage Material: Pressed Steel
• Internal Clearance: C3
• Static Load Capacity: 5000 N
• Dynamic Load Capacity: 9900 N
• Fillet Radius: 0.6 mm
