SKF 3312A/C3 Double Row Cylindrical Bore Angular Contact Ball Bearing

Product Description

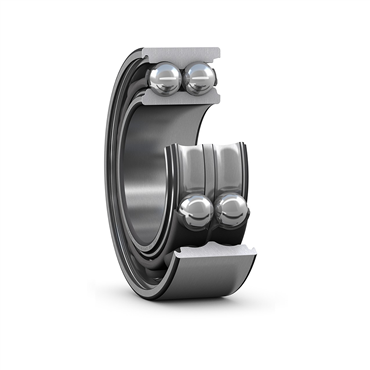

The SKF 3312A/C3 is a double row cylindrical bore angular contact ball bearing. This bearing accommodates both radial and axial loads. Its design features two single row angular contact bearings arranged back-to-back. This allows for efficient space utilization and improved performance.

• Inner Diameter: 2.36 inches
• Outer Diameter: 5.12 inches
• Width: 2.13 inches

Product Highlights

The SKF 3312A/C3 is suitable for a variety of applications, including those that require high precision and rigidity. It is designed to handle complex load combinations, making it ideal for use in machinery and equipment.

Product Information

Standard Information

• Brand: SKF
• MPN: 3312A/C3

Technical Specifications

• Inner Diameter: 2.36 inches (60 mm)
• Outer Diameter: 5.12 inches (130 mm)
• Width: 2.13 inches (53.98 mm)
• Material: Bearing Steel
• Number of Rows: Double
• Contact Angle: 30 degrees
• Precision Rating: ABEC 3
• Weight: 6.589 lb
