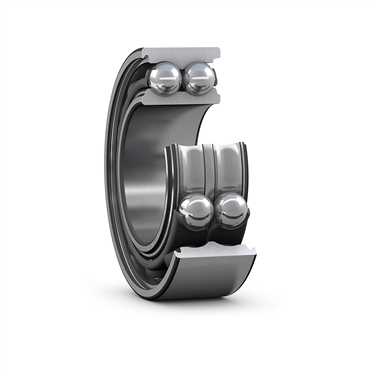

SKF 3312 A Double Row Angular Contact Bearing 60 mm Bore 130 mm OD 54 mm Width

Product Description

The SKF 3312 A is a double row angular contact bearing designed for high-performance applications. It features a bore diameter of 60 mm and an outer diameter of 130 mm, making it suitable for various machinery. The bearing's width is 54 mm, allowing for a sturdy construction that supports radial and axial loads effectively. This unmounted ball bearing is crafted from bearing steel, enhancing its durability and performance.

• Double row configuration for increased load capacity
• Open design for easy lubrication
• Suitable for various industrial applications

Product Highlights

This bearing is ideal for use in electric motors, gearboxes, and other equipment requiring high precision. The 30-degree contact angle provides optimal load distribution for stable operation.

Product Information

Standard Information

• Brand: SKF
• Part Number: 3312 A

Technical Specifications

• Bore Diameter: 60 mm
• Outside Diameter: 130 mm
• Width: 54 mm
• Weight: 6.59 lbs
• Max RPM: 5000 rpm
• Material: Steel
• Contact Angle: 30 degrees
• Cage Material: Metal
