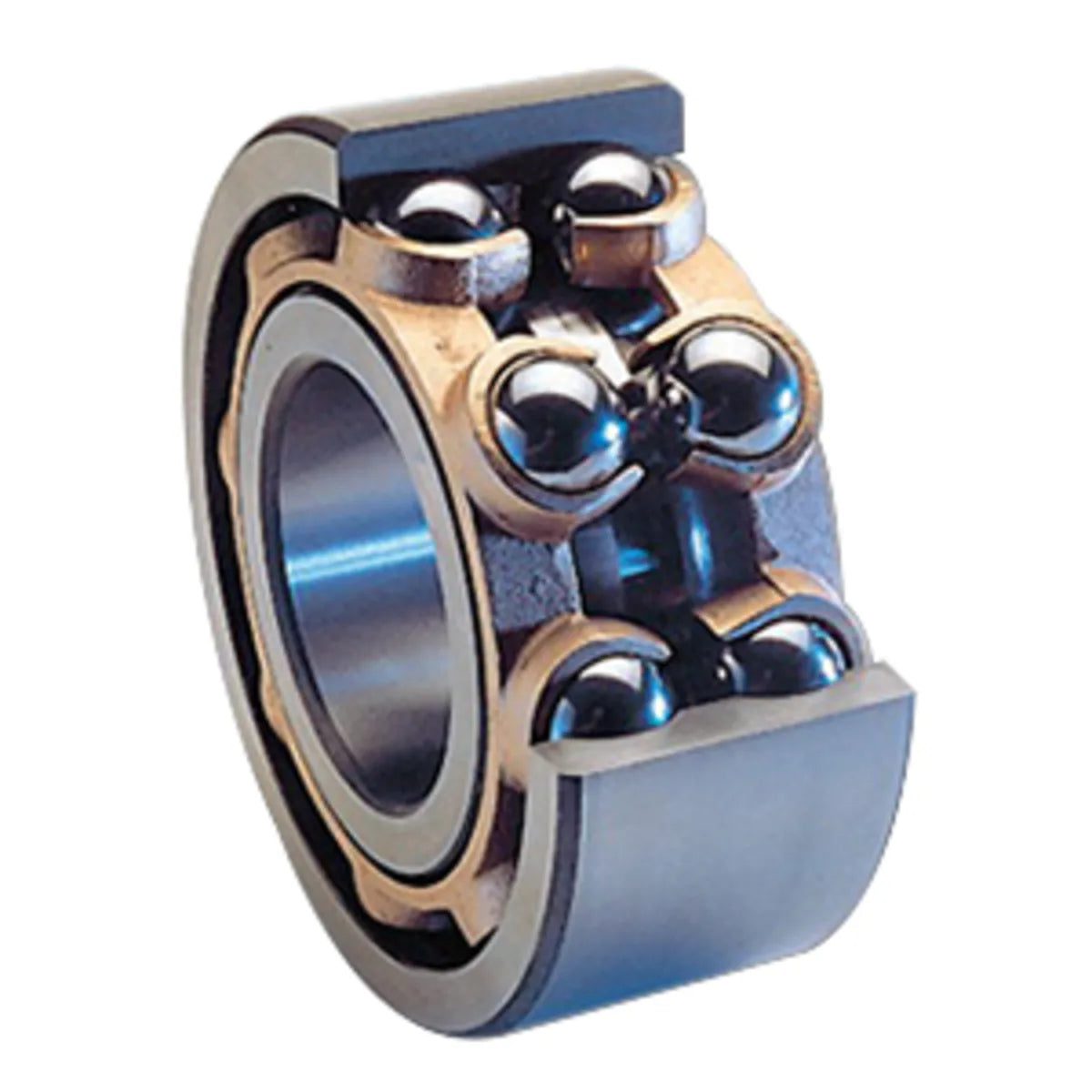

SKF 3309A-2Z/C3 Double Row Angular Contact Ball Bearing 45 mm Bore, 100 mm OD, 39.7 mm W

Product Description

SKF double row angular contact ball bearing 3309A-2Z/C3 features a bore of forty-five millimeters and an outer diameter of one hundred millimeters. This bearing can handle both radial and axial loads effectively. Designed as two single row bearings positioned back-to-back, it occupies less axial space. The structure allows for stiff arrangements and tilting moments. This model is part of the 33 series and is designed to replace older models in series 52 and 53.

• Accommodates radial and axial loads
• Lower axial space compared to single row designs
• Interchangeable with older series bearings

Product Highlights

Performance features include enhanced life with ultra steel construction and a speed rating of 6700 RPM. Optimal for various applications in machinery.

Product Information

Standard Information

• Brand: SKF BEARINGS
• Part Number: 3309A-2Z/C3

Technical Specifications

• Bore Diameter: 45 mm
• Outside Diameter: 100 mm
• Width: 39.7 mm
• Dynamic Load Capacity: 75 kN
• Static Load Capacity: 53 kN
• Cage Material: Steel
• Contact Angle: 30 degrees
• Enclosure Type: Double Shield
