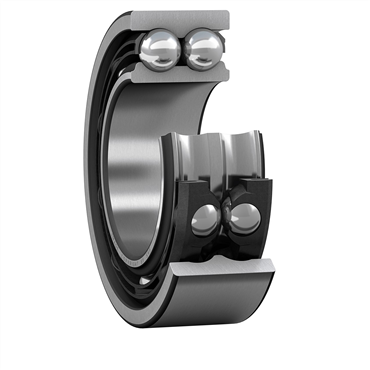

SKF 3201ATN9/C3 Double Row Cylindrical Bore Angular Contact Ball Bearing

Product Description

The SKF 3201ATN9/C3 is a double row cylindrical bore angular contact ball bearing. This bearing is designed for high load capacity and enhanced stability. It can accommodate radial and axial loads in both directions. Typically used in applications where axial rigidity is important, this bearing supports various equipment types.

• Unmounted design for easy installation
• 30-degree contact angle for optimal load distribution
• Constructed from bearing steel for durability

Product Highlights

The SKF 3201ATN9/C3 bearing is suitable for situations requiring precise alignment and minimal friction. It features a cylindrical outer diameter and works effectively in systems that demand high-speed performance.

Product Information

Standard Information

• Brand: SKF
• Part Number: 3201ATN9/C3

Technical Specifications

• Series: 3220
• Contact Angle: 30 Degree
• No. of Bearings: 1
• No. of Rows: Double
• O.D. Type: Cylindrical
• Precision Rating: ABEC 1
• Element Material: Bearing Steel
• Cage Material: Polyamide
• Inch/Metric: Metric
• Rolling Element: Ball
• Inner Ring Width: 0.63 in, 15.88 mm
• Bearing Type: Unmounted, Angular Contact
• Preload Level: C3 Axial Clearance
• O.D.: 1.26 in, 32 mm
• Bore Type: Cylindrical
• Material: Bearing Steel
• Width: 0.63 in, 15.88 mm
• Outer Ring Width: 0.63 in, 15.88 mm
• Row Type: 2
• I.D.: 0.47 in, 12 mm
• Weight: 0.138 LB
• EAN or UPC: 7316571314624
