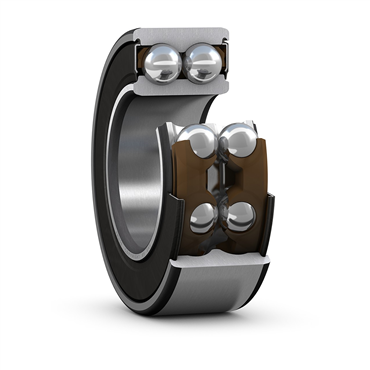

SKF 3201A-2RS1TN9/MT33 Double Row Angular Contact Bearing - 12 mm Bore, 32 mm OD, 0.6250 in Width, Open, 30 Degree Contact Angle, C0

Product Description

The SKF 3201A-2RS1TN9/MT33 is a double row angular contact bearing designed for high axial and radial loads. The bore measures twelve millimeters, and the outside diameter is thirty-two millimeters. This bearing has a width of zero point six two five inches and operates well under a maximum RPM of fifteen thousand. The contact angle of thirty degrees provides stability during operation.

• Heavy duty design for axial and radial load support
• Temperature range from minus forty to plus two hundred ten degrees Fahrenheit
• Manufactured with fiberglass reinforced nylon cage material

Product Highlights

High-quality steel construction and nitrile rubber seals enhance durability and performance. Suitable for various applications in HVAC, electric, and plumbing systems.

Product Information

Standard Information

• Brand: SKF
• UPC: 7316570452716

Technical Specifications

• Bore Diameter: 12 mm
• Outside Diameter: 32 mm
• Overall Width: 0.6250 in
• Weight: 0.14 lbs
• Seal Type: Contact Seal
• Cage Material: Fiberglass Reinforced Nylon
• Operating Temperature Range: -40 to +210 °F
• Radial Static Load Capacity: 5.6 kN
• Radial Dynamic Load Capacity: 10.1 kN
• Precision Rating: Not Rated
