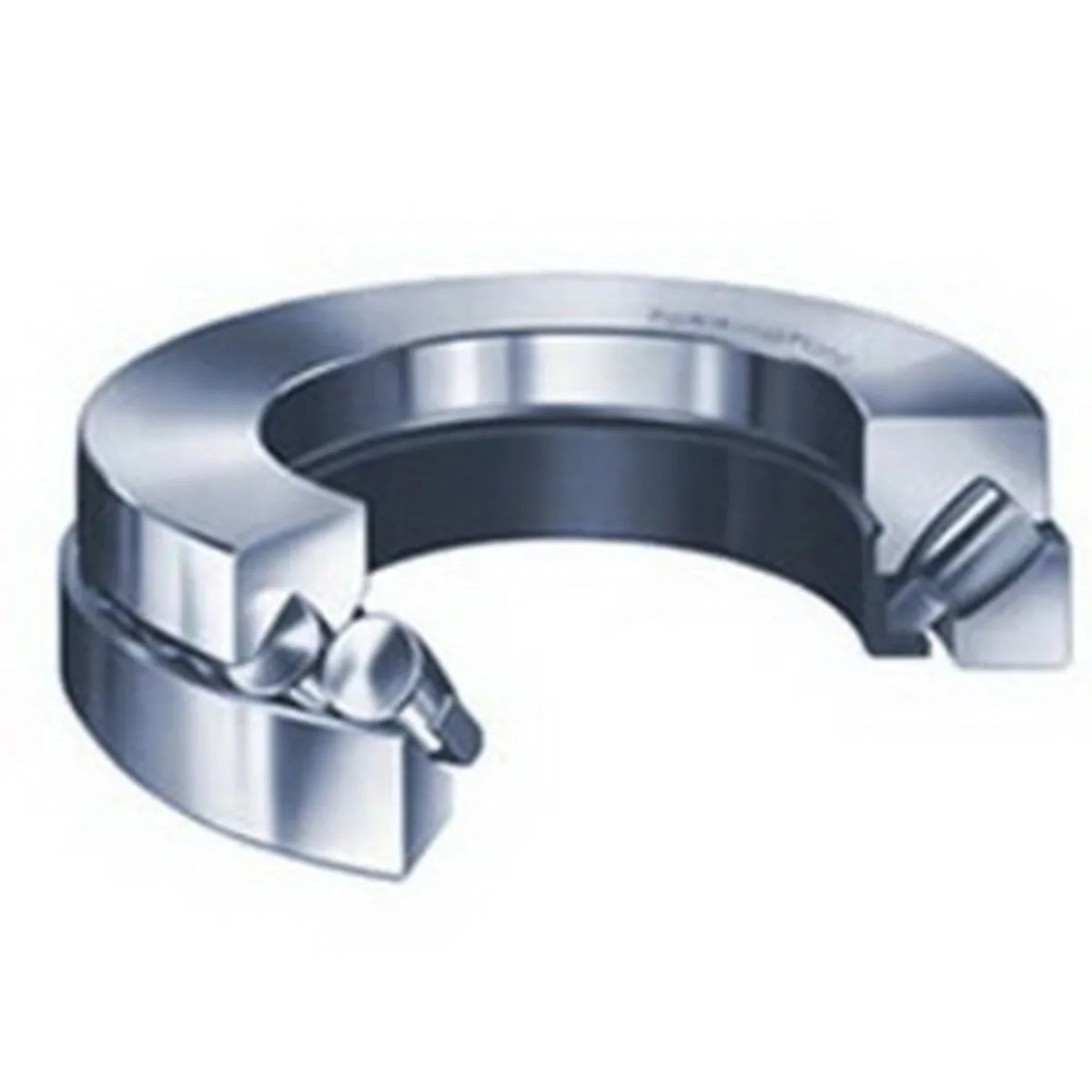

SKF 29426 E Spherical Roller Thrust Bearing 130 mm Bore x 270 mm OD x 85 mm W

Product Description

SKF 29426E is a spherical roller thrust bearing designed to handle heavy axial loads in one direction. It features specially designed raceways that accommodate a large number of asymmetrical rollers. The rollers provide an optimum fit with the washer raceways, allowing for efficient load distribution along the roller length. This bearing is suited for high-speed applications and can support heavy radial loads as well. Spherical roller thrust bearings are self-aligning, which means they can adjust to misalignment caused by shaft deflection.

• High-speed performance
• Accommodates heavy axial and radial loads
• Self-aligning design

Product Highlights

The SKF 29426E bearing delivers robust performance under heavy load conditions. It is suitable for applications requiring high-speed operation and excellent load-carrying capacity.

Product Information

Standard Information

• Brand: SKF
• MPN: 29426E

Technical Specifications

• Bore Diameter: 130 mm
• Outside Diameter: 270 mm
• Width: 85 mm
• Dynamic Load Capacity: 1560000 N
• Static Load Capacity: 4050000 N
• Cage Material: Steel
• Operating Temperature: 392 °F
• Internal Clearance: C3
