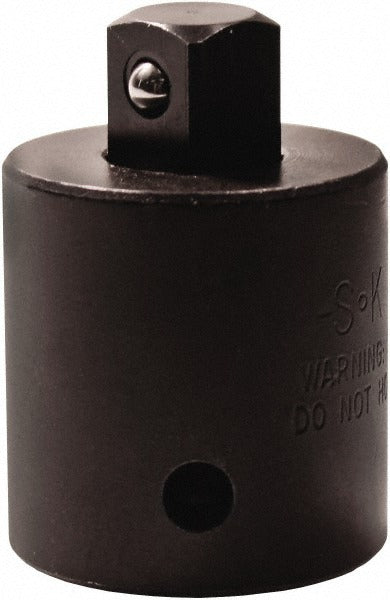

Sk 84609A Impact Drive Socket Adapter 1/2 to 3/4 Inch

Product Description

The SK 84609A is an impact-rated socket adapter designed to convert a 1/2-inch square male drive to a 3/4-inch square female drive. Built for use with impact wrenches and impact drivers, it allows technicians to run larger 3/4-inch drive sockets from a 1/2-inch drive tool without switching equipment. The overall length is 2.5 inches, keeping the adapter compact and practical in tight spaces. HVAC, mechanical, and industrial service techs reach for adapters like this when torquing larger fasteners on equipment without having a dedicated 3/4-inch impact driver on hand. The 84609A weighs 0.594 pounds and handles the stress loads generated by impact drive tools.

This adapter is a standard fit for trade and industrial service applications where mixed-drive tools are common. It is well suited for equipment rooms, rooftop units, chillers, mechanical rooms, and any setting where technicians work with both 1/2-inch and 3/4-inch drive tool sets. The compact 2.5-inch overall length makes it practical in areas with limited clearance around large fasteners.

Key Features

• Impact-rated construction handles the stress and shock loads generated by pneumatic and electric impact tools
• 1/2-inch square male drive input connects to standard 1/2-inch impact wrenches and ratchets
• 3/4-inch square female drive output accepts 3/4-inch drive sockets
• 2.5-inch overall length keeps the assembly compact for restricted-access fastener locations
• Lightweight at 0.594 pounds for easy handling during extended service calls

Compatibility

Designed as a standard impact drive socket adapter compatible with 1/2-inch square drive impact tools and 3/4-inch square drive sockets used in trade and industrial service applications.

Installation Notes

This adapter is used by HVAC technicians, plumbers, and mechanical contractors working with impact wrenches. Verify that the male drive end is fully seated in the tool anvil and that the retaining pin or ring is engaged before applying torque. Inspect the adapter for cracks or wear before each use, and do not use impact-rated adapters on hand-tool-only drive equipment. Replace the adapter if any deformation or rounding of the drive surfaces is observed.
