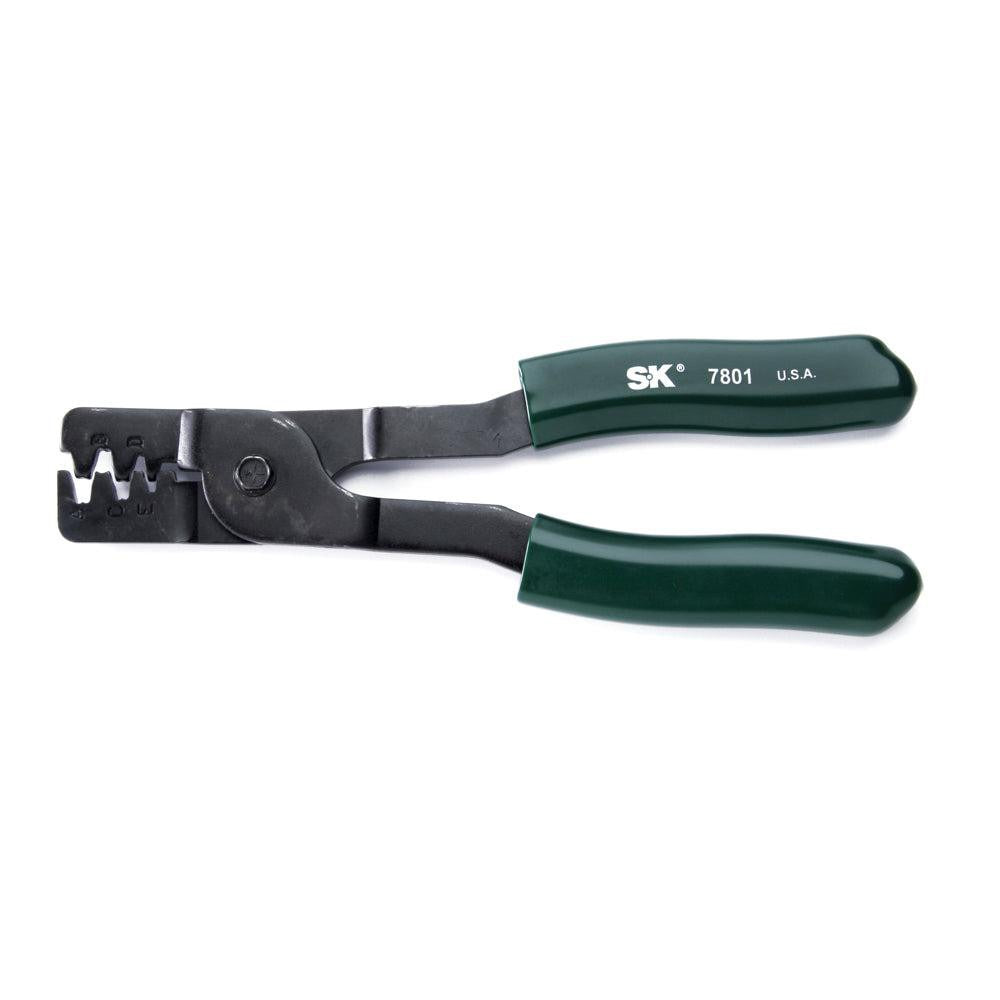

Sk 7801 Crimping Pliers 22-10 Awg Non-insulated Terminal

Product Description

The SK 7801 is a 5-station microterminal crimping plier designed for creating secure, reliable crimps on non-insulated and open barrel terminals. Built with a plastisol cushion handle for comfort during repetitive work, this tool handles wire gauges from 24 AWG minimum up to 10 AWG maximum, with a primary capacity range of 22-10 AWG. At 8 inches overall length and 0.512 pounds, it is compact enough for tight underdash or panel work. Licensed electricians, automotive technicians, and field service techs will find this tool well suited for terminal repair and harness work where precision crimping is required.

The SK 7801 is intended for use with non-insulated and open barrel terminals, including Weatherpack terminals commonly found on GM vehicles and motorcycles. Its 5-station jaw design allows the tech to select the correct die for the wire gauge being terminated, reducing the risk of under-crimp or over-crimp failures. This tool is appropriate for light commercial and automotive electrical applications, connector repair, and wire harness assembly work where terminal integrity is critical to system performance.

Key Features

• 5-station microterminal crimper jaw supports multiple wire gauge selections in a single tool
• Capacity range of 22-10 AWG covers common automotive and light electrical terminal sizes
• Compatible with Weatherpack terminals used on GM vehicles and motorcycles
• Non-insulated and open barrel terminal application — no insulated terminal use
• Plastisol cushion handle reduces hand fatigue during extended crimping tasks
• Compact 8-inch overall length suits confined work areas such as engine bays and control panels

Compatibility

Designed for use with non-insulated and open barrel terminals, including Weatherpack terminals used on GM vehicles and motorcycles across a wire gauge range of 22-10 AWG.

Installation Notes

This tool is used by electricians, automotive technicians, and low-voltage wiring specialists. Before crimping any terminal, de-energize the circuit and verify wire gauge matches the selected crimping station. Do not use this tool on insulated terminals, as the jaw geometry is designed for non-insulated and open barrel terminals only. Follow applicable NEC or OEM wiring guidelines for terminal selection and pull-test requirements.
