Product Description

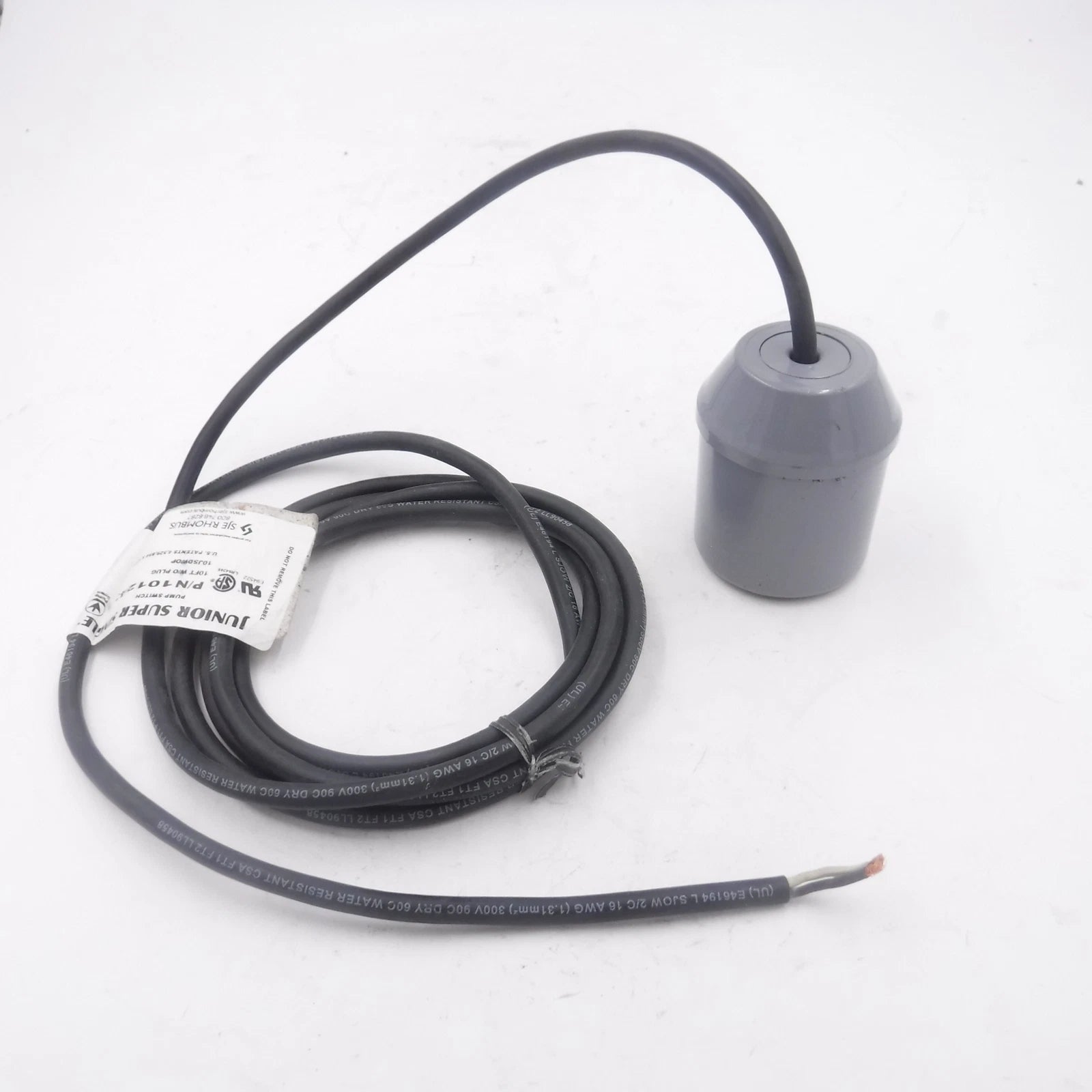

The SJE Rhombus pump switch, model SJE1012434, is designed to control pumps effectively. It operates with a compatibility of up to 1 horsepower for 230 VAC applications or up to 1/2 horsepower for 120 VAC applications. The switch has an adjustable pump activation range of six and a half inches to nineteen inches. This feature allows for adaptability based on application needs. It is designed for direct hard wiring and suitable for both sewage and water environments, handling temperatures up to one hundred forty degrees Fahrenheit. Installation is simplified with the included mounting clamp.
- Controls pumps up to 1/2 HP at 120 VAC and 1 HP at 230 VAC
- Adjustable pumping range of six and a half to nineteen inches
- Includes a mounting clamp for easy installation
Product Highlights
This switch is well-suited for both residential and commercial use in sewage and water settings, ensuring reliable operation in challenging environments.
Product Information
Standard Information
-
Brand: SJE Rhombus
-

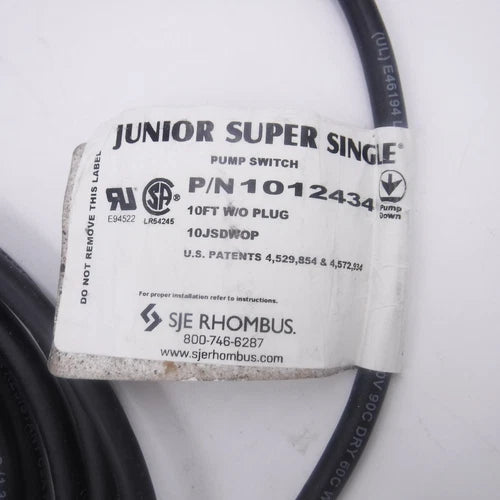

MPN: SJE1012434
Technical Specifications
-
Voltage Rating: 120V - 230V
-
HP Rating: 1/2 HP (120 VAC) / 1 HP (230 VAC)
-
Phase: 1 Phase
-
Amperage Rating: 40 Amps
-

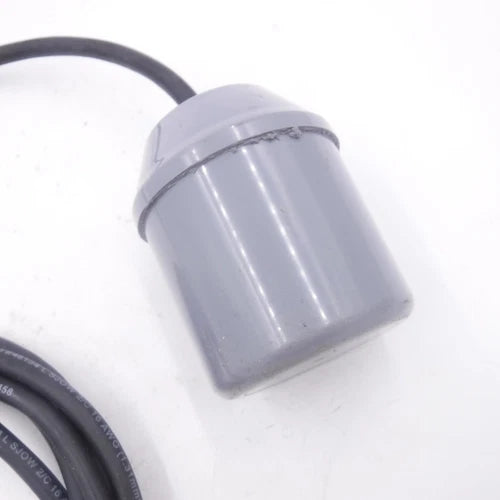

Floating Diameter: 2.81 inches
-
Floating Length: 3.42 inches
-
Cable Type: Flexible 16 gauge, 2 conductor, water-resistant
-
Material: High impact, corrosion-resistant PVC
-
Operating Temperature: Up to 140°F
-
Maximum Pump Running Current (120 VAC): 13 amps
-
Maximum Pump Starting Current (120 VAC): 40 amps
-
Recommended Pump HP (120 VAC): 1/2 HP or less
-
Maximum Pump Running Current (230 VAC): 8 amps
-
Maximum Pump Starting Current (230 VAC): 20 amps
-
Recommended Pump HP (230 VAC): 1 HP or less
