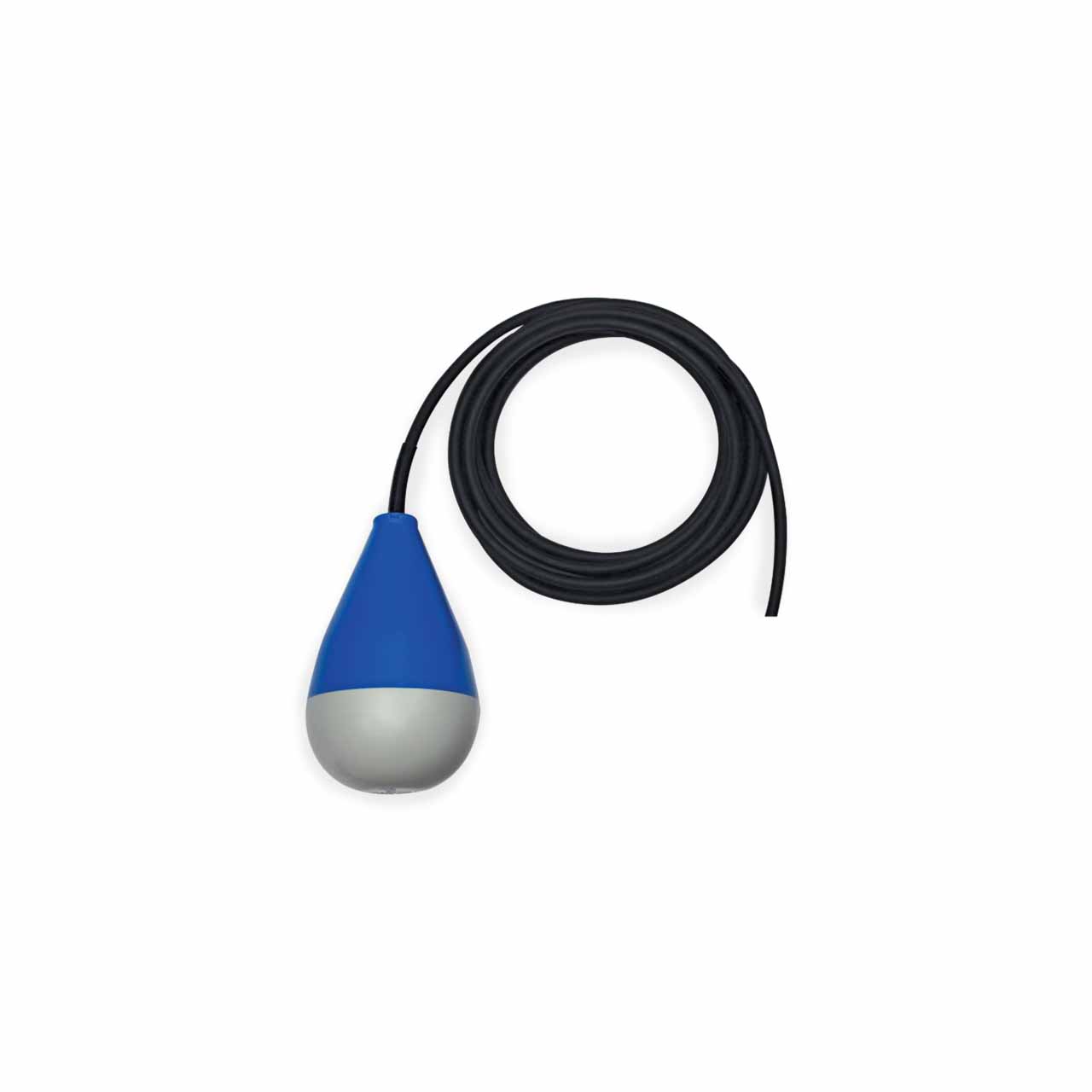

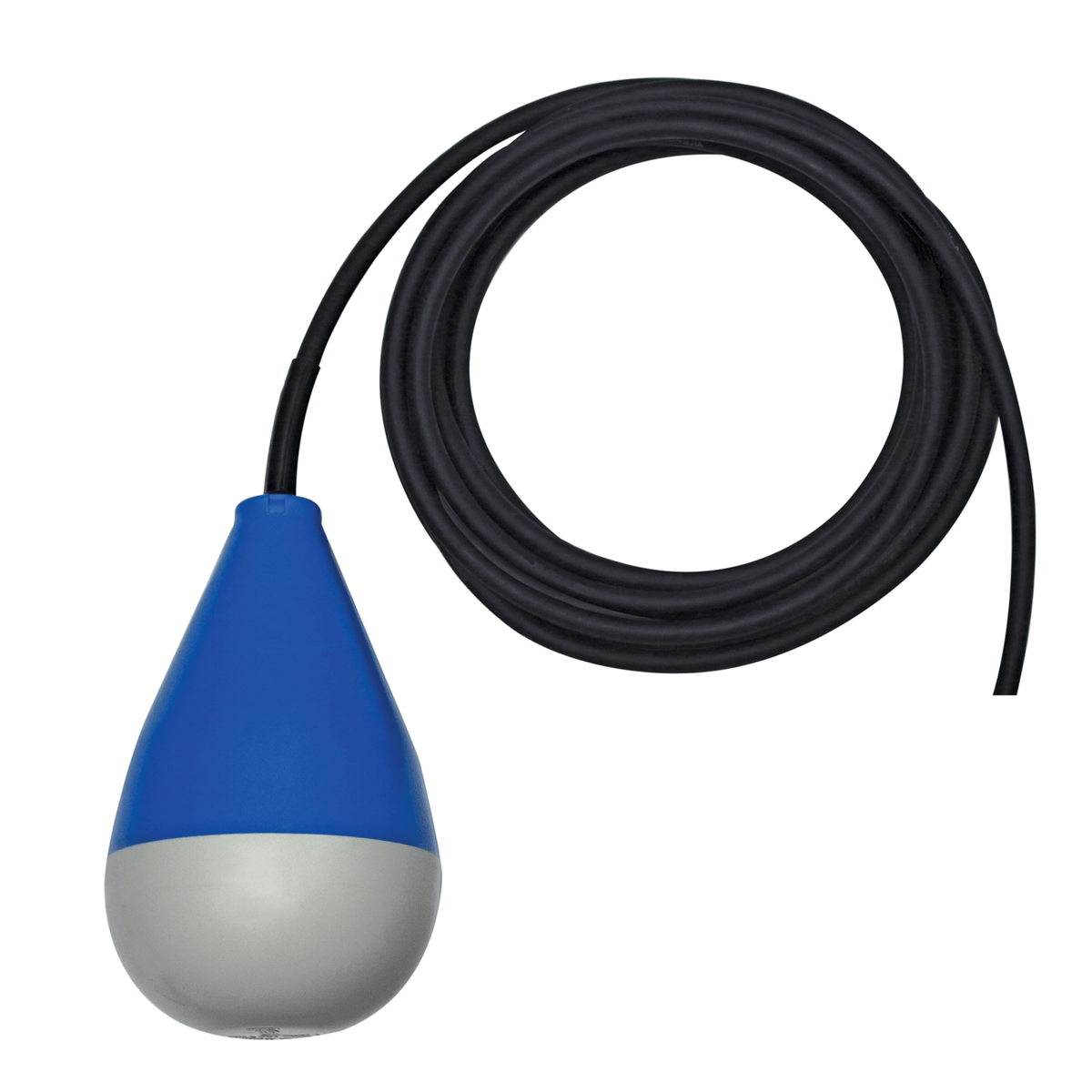

SJE RHOMBUS 50MGMSPDT MegaMaster Control Switch 50' Cord

Product Description

The SJE RHOMBUS 50MGMSPDT MegaMaster control switch is designed for level control in sewage pumping stations. It features a mechanically-activated, narrow-angle, internally weighted float switch suitable for various wastewater applications.

• Internally weighted design
• Three-wire cable with SPDT configuration
• Large twin wall teardrop shape for increased buoyancy

Product Highlights

This switch provides reliable performance with its gold cross-point contacts, delivering control signals up to one amp. It can be wired for normally open or normally closed operation and is resistant to rotation, ensuring consistent operation.

Product Information

Standard Information

• Cable: Flexible 18 Gauge, 3 Conductor (UL) SJOW, Water-Resistant (CPE)
• Float: 4.03 inches diameter x 6.62 inches long, high impact, corrosion resistant, polypropylene housing

Technical Specifications

• Maximum Water Depth: 30 feet (9 meters), 13 PSI (90 kPa)
• Electrical Load: Maximum 1 amp, 125 VAC; Minimum 1 mA, 4 VDC
• Model: 50MGMSPDT
• Series: MegaMaster
• Application: Municipal wastewater pumping stations
• Voltage: 125 VAC
• Cord Length: 50 feet
