Sje Rhombus 1221W114H Duplex Alternating Single Phase Pump Control 120/208/240 VAC

Product Description

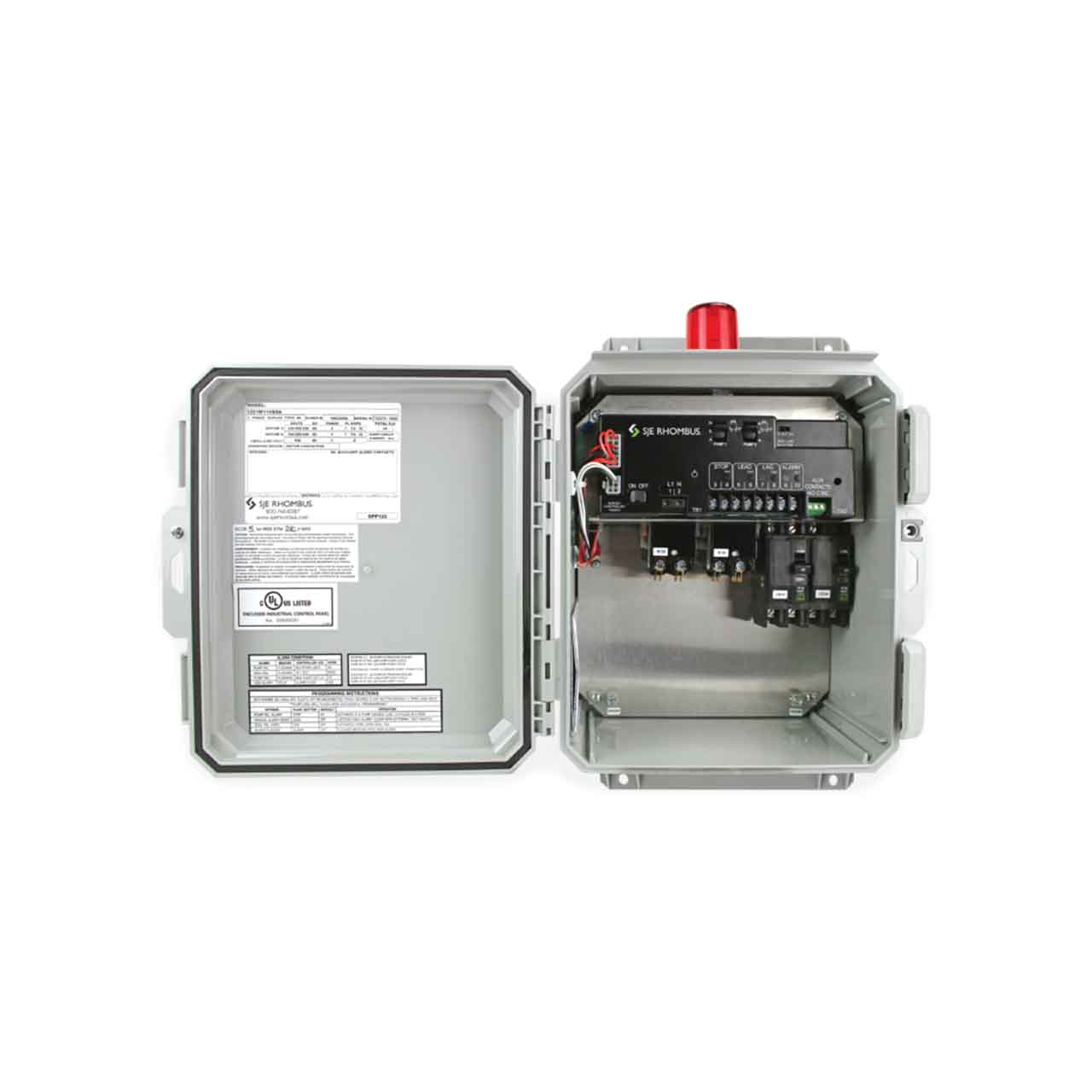

The SJE RHOMBUS 1221W114H is a duplex alternating pump control designed for single-phase pumps in water and sewage systems. It operates two alternating pumps at voltages of 120, 208, or 240 VAC. This product includes an override control for pump failures and an alarm switch that activates audio and visual alerts.

• Alternating action to prolong pump life.
• Override control available in case of a pump failure.
• Every control system is UL Listed for safety compliance.

Product Highlights

This pump control panel is essential for managing pump operations effectively, providing reliable alarm notifications and equipping users with necessary safeguards.

Product Information

Standard Information

• Enclosure: NEMA4X, UV stabilized plastic.
• Starting Device: Magnetic Motor Contactors.

Technical Specifications

• Voltage: 120/208/240V.
• Pump Full Load Amps: 0-15 FLA.
• Pump Disconnects: Circuit Breaker.
• Float Switch Application: Pump Down.
• Auxiliary Alarm Contact, Form C: Three SJE SignalMaster / Pipe Clamps per float.
• Standard Alarm Package: Red Alarm Beacon, Horn with 83 to 85 dB rating, Exterior Alarm Test/Normal/Silence Switch, Horn Silence Relay.
