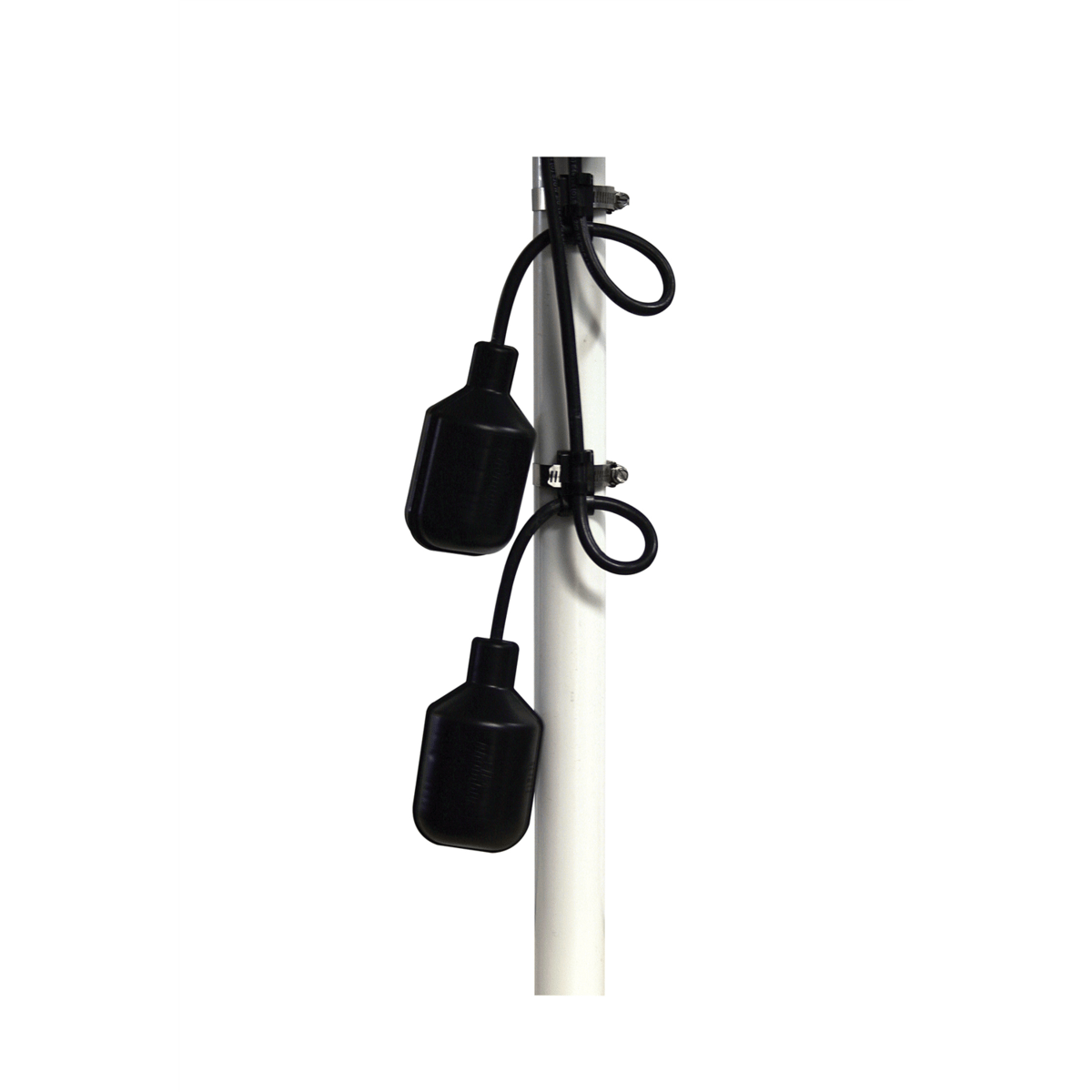

Sje Rhombus 1017660 Double Float Master Wide Angle 120 Volt (20 ft Cord) 20DFMMD1WP

Product Description

SJE Rhombus 1017660 is a mechanically activated double-float master pump switch rated for 120 VAC and designed for sewage and non-potable water service. The unit uses two mechanical floats with a splice tube holding relay to operate the floats in series, reducing pump chatter in turbulent conditions. It controls pumps within specified amp ratings and provides an adjustable pumping range for confined or wide-angle installations.

• Electrical: 120 VAC single phase; maximum pump running current 15 FLA and maximum pump starting current 90 LRA; normally open circuit
• Mechanical: Two polypropylene floats (2.74" diameter x 4.83" length) with splice-tube holding relay; adjustable pumping range 3" to 48"
• Installation and cabling: Piggyback plug with 20 ft cord; cable attached to float housing is 18 AWG 2-conductor SJOW, cable above splice is 14 AWG 3-conductor SJTW; includes mounting clamps

Product Highlights

Mechanically activated double-float switch with holding relay; 15 FLA/90 LRA at 120 VAC; adjustable 3"�48" pumping range; 20 ft piggyback cord; CSA certified

Product Information

Standard Information

• Brand: SJE RHOMBUS
• Manufacturer Part Number: 1017660

Technical Specifications

• Brand: SJE Rhombus
• MPN: 1017660
• Model: 20DFMMD1WP
• Series: Double Float Master
• Product type: Wide angle pump switch
• Input Voltage: 120 VAC
• Max Pump Run Current (FLA): 15 amps
• Max Pump Start Current (LRA): 90 amps
• Circuit Type: Normally open
• Adjustable Pumping Range: 3" to 48" (7.6 to 122 cm)
• Plug Type: Piggyback
• Cord Length: 20 ft
• Float Diameter: 2.74 inches
• Float Length: 4.83 inches
• Float Material: High-impact corrosion resistant polypropylene
• Maximum Fluid Temperature: 140�F (60�C)
• Cable (attached to float housing): Flexible 18 gauge, 2 conductor SJOW, water-resistant (CPE)
• Cable (above splice): Flexible 14 gauge, 3 conductor SJTW, water-resistant thermoplastic
• Mounting: Standard mounting clamps
• Operation: Mechanically activated; two floats operate in series with holding relay in splice tube
• Application: Sewage and non-potable water pump control
• Certifications: CSA certified
