Sje-Rhombus 1012668 TA AB-01HAUX Tank Alert AB Alarm System 120 Volts 6 ft Cord

Product Description

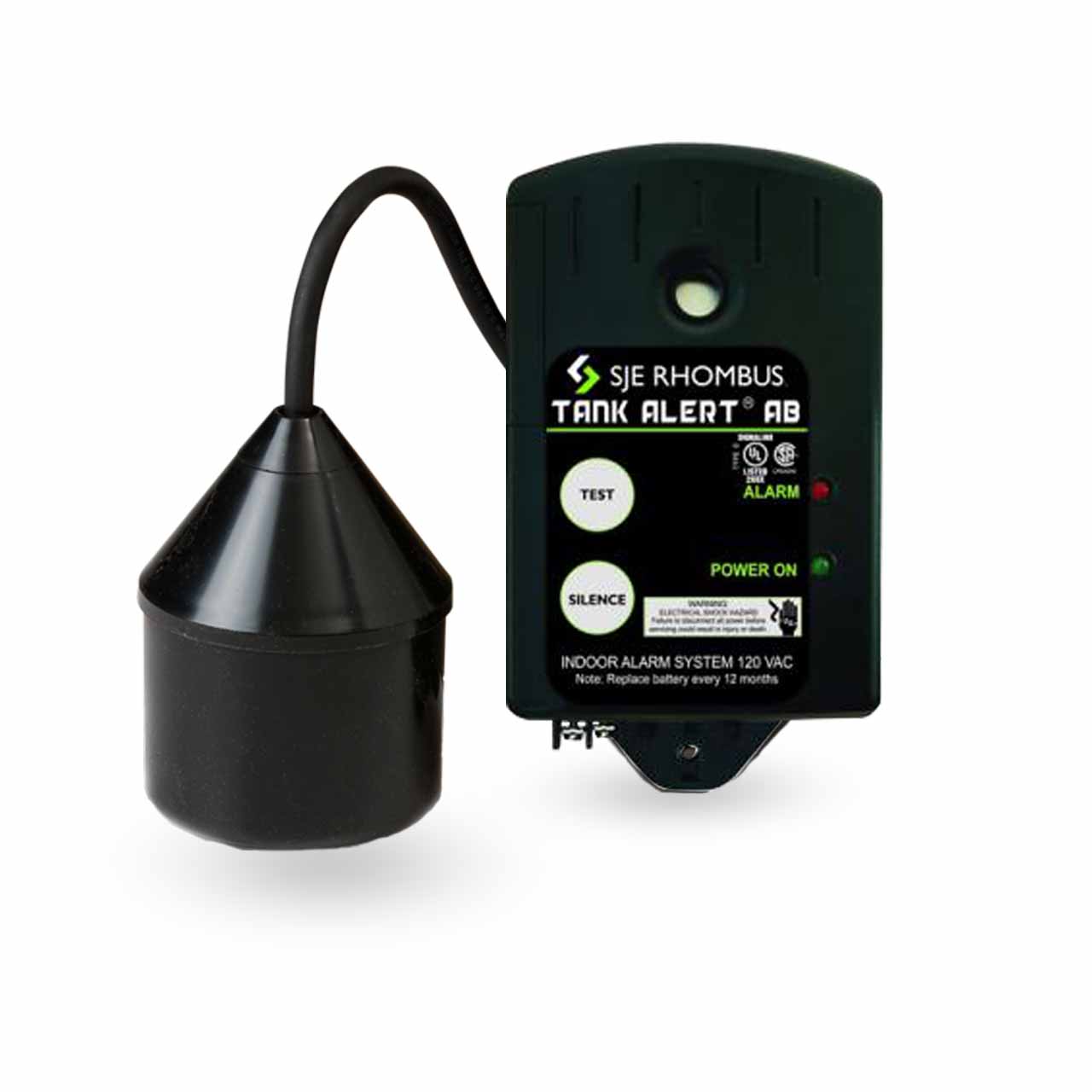

The SJE-RHOMBUS 1012668 TA AB-01HAUX Tank Alert AB indoor alarm system monitors liquid level conditions in various applications. The alarm features a user-friendly touch pad with LED indicators. The alarm horn and red LED activate for high water. Once cleared, the alarm resets automatically. The green LED indicates 120V primary power. If power fails, the alarm works due to 9V battery backup.

• NEMA 1 enclosure designed for ease of installation and rated for indoor use
• Automatic alarm reset
• Alarm horn sounds at 87 decibels at 10 feet

Product Highlights

Monitors liquid levels, has visual and audible alerts, and includes battery backup.

Product Information

Standard Information

• Brand: SJE-RHOMBUS
• Manufacturer Part Number: 1012668

Technical Specifications

• Brand: SJE-Rhombus
• Mfg. Number: 1012668
• Model: TA AB-01HAUX
• Series: Tank Alert AB
• Product Type: Water alarm system
• Application: Liquid level monitoring
• Primary Voltage: 120 VAC
• Battery Backup Voltage: 9 VDC
• Alarm Enclosure: NEMA 1
• Enclosure Material: Plastic
• Float Switch Type: Normally open
• Alarm Horn @ 10 ft: 87 decibels
• Power Cord Length: 6 ft
• VOLTAGE FOR 120V MODEL PRIMARY: 120 VAC, 60 Hz, 2.4 Watts Max. (alarm condition)
• SECONDARY: 9 VDC
• BATTERY BACKUP POWER: 9 VDC
• ALARM HORN: 87 Decibels at 10 feet (3 meters)
• POWER CORD: 6 feet (1.8 meters)
• FLOAT SWITCH CONNECTION TERMINAL: For Float Switch Connection Only. Do Not Apply Power ( Voltage across terminals is 8-9 VDC)
• FLOAT SWITCH: SJE SignalMaster Control Switch with Mounting Clamp
• CABLE: 15 feet (4.57 meters), Flexible 18 Gauge, 2 Conductor (UL) SJOW, Water-Resistant (CPE)
• FLOAT: 2.74 inches Diameter x 4.83 inches Long (7.0 x 12.3 cm), High Impact, Corrosion Resistant Polypropylene Housing for use in Sewage and Water Up to 140 . The SJE SignalMaster Control Switch with Mounting Clamp is a high-quality, corrosion-resistant polypropylene housing designed for use in sewage and water up to 140°F (60°C).
• AUXILIARY ALARM CONTACTS (Optional) NOTE: Units with Auxiliary Alarm Contacts are CSA Certified Only
• VOLTAGE: 120 VAC
• CURRENT: 5 Amps Maximum N/O; 3 Amps Maximum N/C
• Collection: Tank Alert®
• Material: Plastic
• NEMA: NEMA 1
• Power Source: Electric, Battery
• UL Listed: Yes
• Volts: 120V
