SJE Rhombus 1007457 Tank Alert I Alarm System 120 VAC w/15' SJE SignalMaster High Level

Product Description

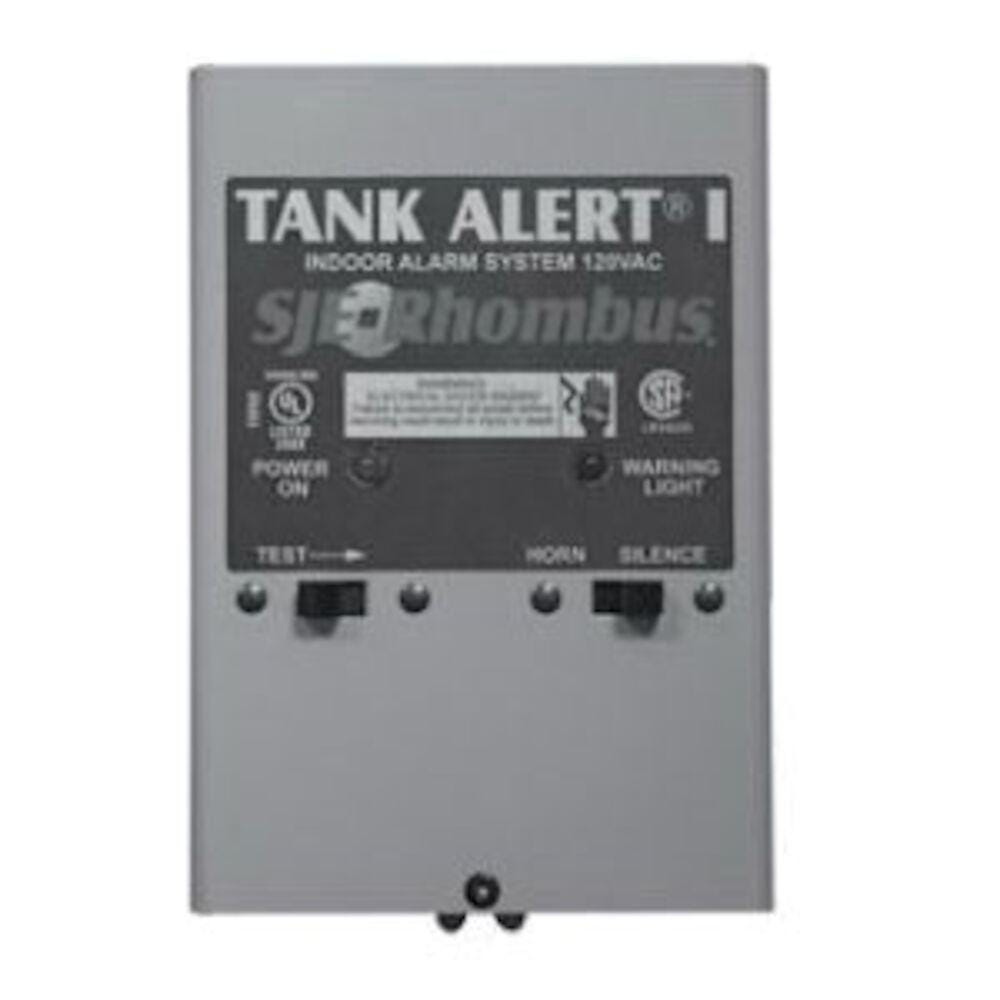

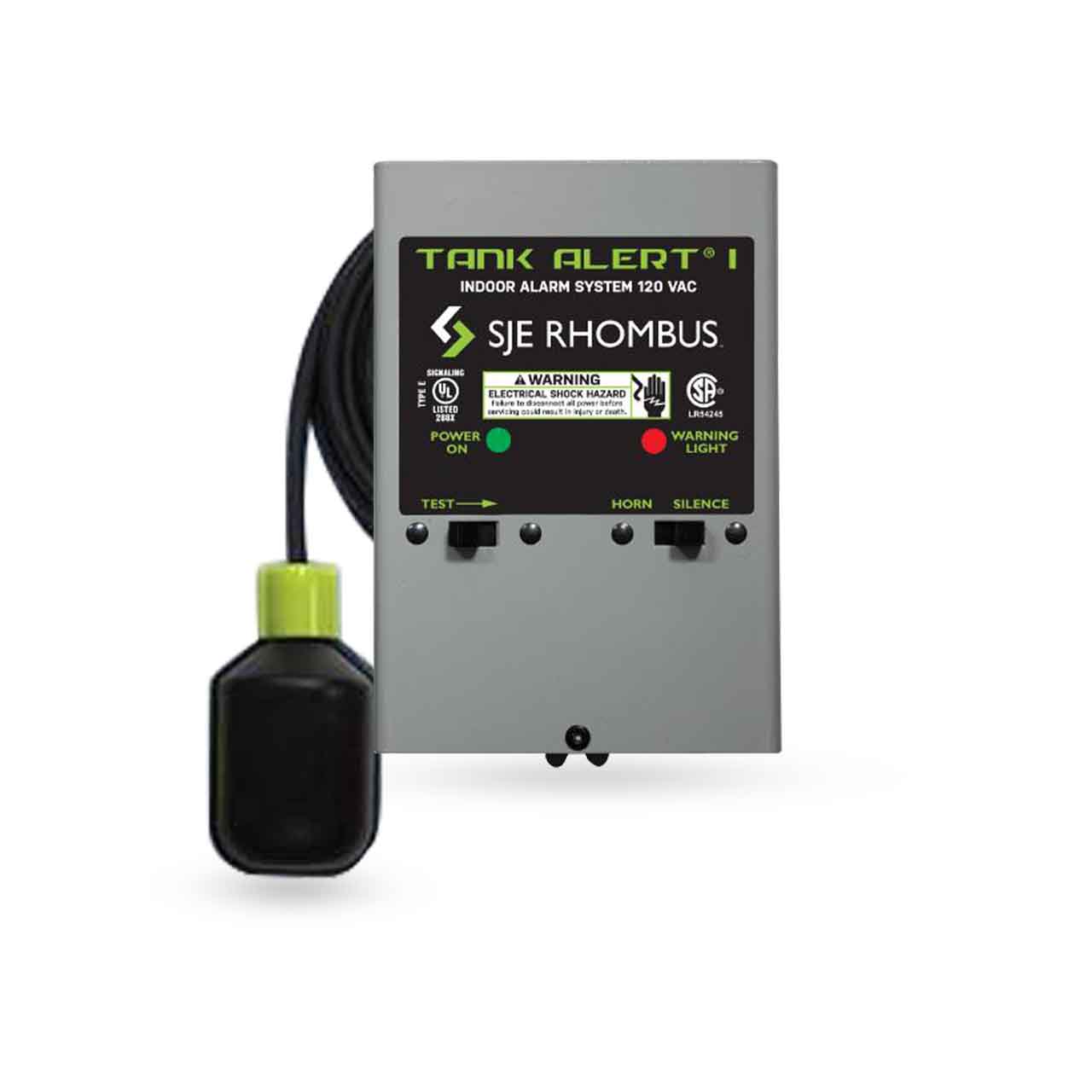

The SJE Rhombus 1007457 Tank Alert I alarm system helps monitor liquid levels in lift pump chambers, sump pump basins, holding tanks, and other water applications. This system activates an alarm horn at eighty-six decibels when liquid levels reach a problematic state. Designed for indoor use, it features a NEMA 1 enclosure for straightforward installation.

• NEMA 1 enclosure suitable for indoor settings
• Includes red alarm light, green power indicator, alarm test switch, and horn silence switch
• Operates independently of the pump circuit if installed on a separate circuit

Product Highlights

The Tank Alert I provides crucial audio and visual alerts for liquid levels, supporting various non-potable water applications.

Product Information

Standard Information

• Voltage (Primary): 120 VAC, 50/60 Hz
• Power Consumption: 5 Watts Max (alarm condition)

Technical Specifications

• Voltage (Secondary): 12 VAC
• Alarm Enclosure Size: 6 x 4 x 2.5 inches
• Alarm Horn Sound Level: 86 Decibels at 10 Feet
• Power Cord Length: 6 feet
• Float Switch Connection: For Float Switch Only, Do Not Apply Power
• Float Switch Type: SJE SignalMaster Control Switch with Mounting Clamp
• Cable Length: 15 feet, Flexible 18 Gauge
• Float Dimensions: 2.74 inch Diameter x 4.83 inch Long
• Maximum Water Depth: 30 Feet
• CSA Certified: Yes
• UL Listed: Yes
• Decibel Rating: 86 dB
