Sje-Rhombus 1006056 SignalMaster Control Switch 20 feet Cord

Product Description

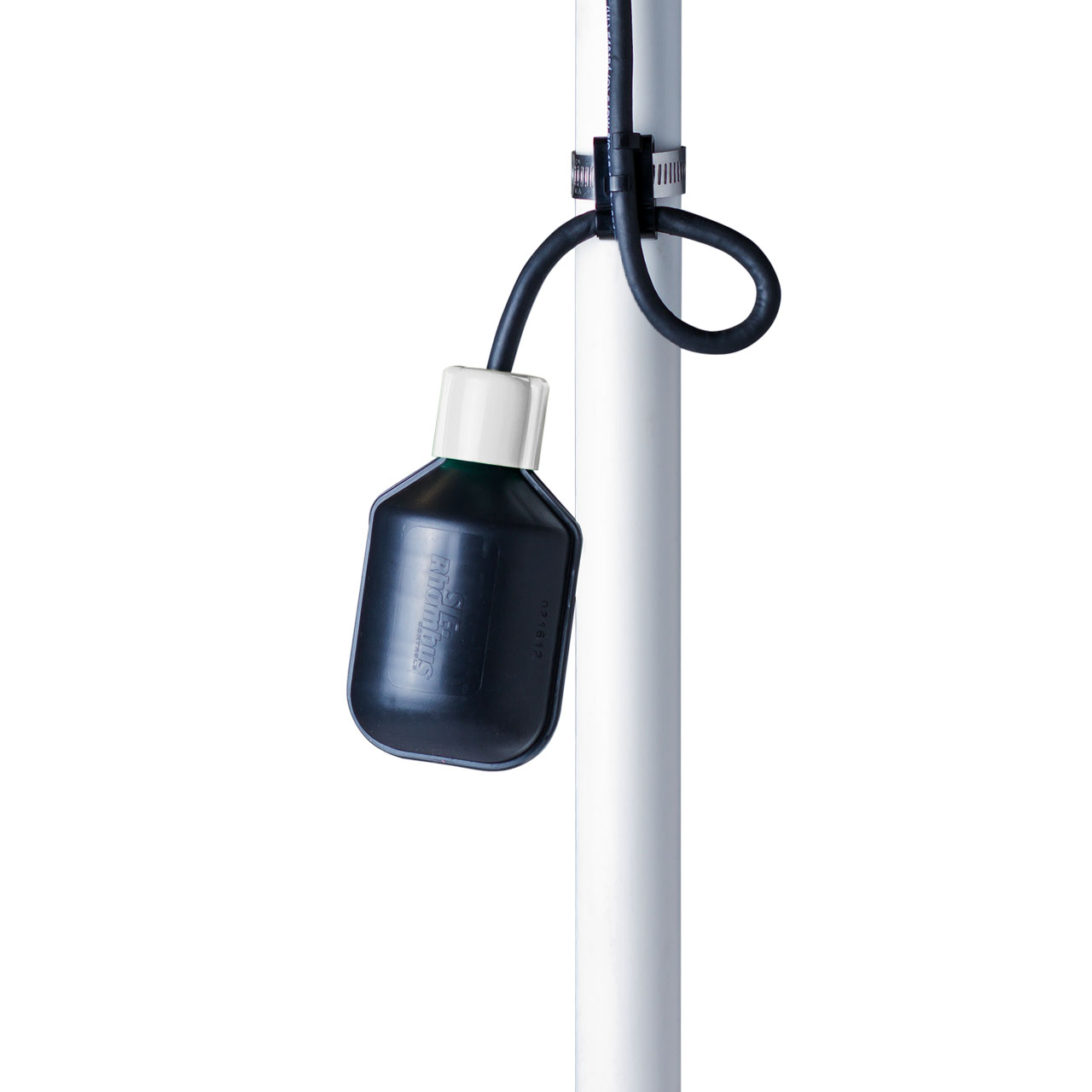

The SJE-RHOMBUS 1006056 SignalMaster control switch accurately monitors liquid levels to activate pump control panels and alarms in water and sewage applications. This mechanically-activated, narrow-angle float switch is not sensitive to rotation and is designed for sewage and non-potable water applications.

• Mechanically-activated, snap action contacts
• High impact, corrosion resistant, polypropylene float housing
• Not Sensitive to Rotation

Product Highlights

The SJE-RHOMBUS SignalMaster control switch is UL Listed and CSA Certified.

Product Information

Standard Information

• Brand: SJE-RHOMBUS
• Manufacturer Part Number: 1006056

Technical Specifications

• CABLE: Flexible 18 Gauge, 2 Conductor (UL, CSA) SJOW, Water-Resistant (CPE)
• FLOAT: 2.74" Diameter x 4.83" Long (7.0 x 12.3 cm) High Impact, Corrosion Resistant, Polypropylene Housing for use in Sewage and Water up to 140 F (60 C)
• MAXIMUM WATER DEPTH: 30 Feet (9 meters), 13 PSI (90 kPa)
• ELECTRICAL: 5 Amp, 125/250 VAC, 50/60 Hz
• NOTE: This switch is not recommended for controlling: Electric Loads Less than 100 Milliamps, 12 VAC Non-Arcing Electric Loads
• Brand: SJE-Rhombus
• Mfg. Number: 1006056
• Model: 20SGMWENC
• Series: SignalMaster
• Product Type: Narrow angle control switch
• Application: Sewage/non-potable water
• Voltage: 125 VAC or 250 VAC
• Max. Electrical Load: 5 Amps
• Circuit Type: Normally closed
• Plug Type: Bare leads
• Internally Weighted: Yes
• Float Diameter: 2.74"
• Float Length: 4.83"
• Cord Length: 20 ft
• Cable Length ft: 20 ft
• Collection: SignalMaster
• Material: Plastic
• Material Type: Polypropylene
• NSF Certified: Yes
• NSF Specifications: NSF 61
• Power Source: AC
• Temperature Range: Up to 140 Deg F (Up to 60 Deg C)
• UL Listed: Yes
• Volts: 125/250V
• Wire Gauge: 18 ga
