Sje-Rhombus 1003243 PumpMaster Plus Series Wide Angle 120 Volt Piggyback Pump Switch 15 ft Cord

Product Description

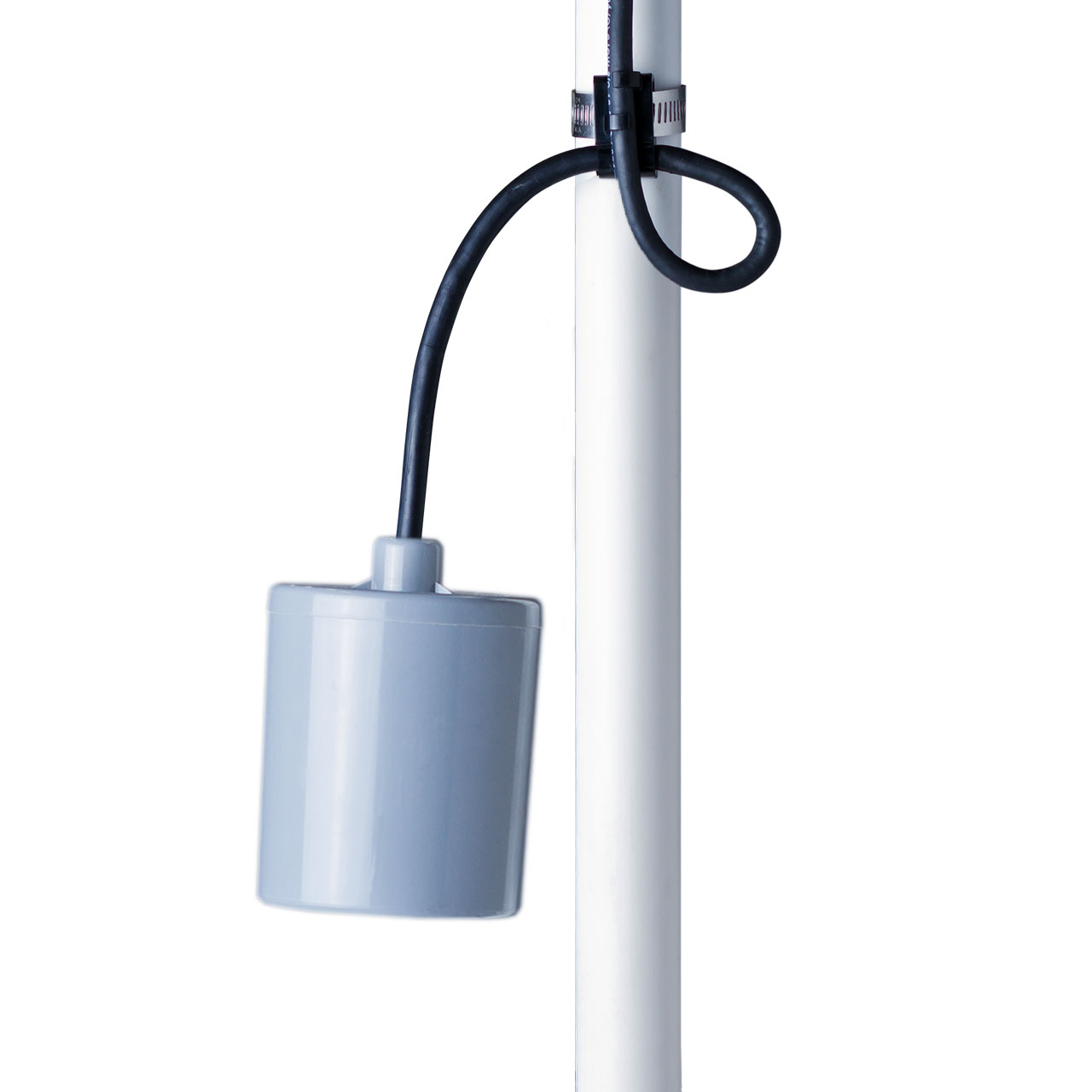

The SJE-RHOMBUS 1003243 is a mechanically-activated, wide-angle switch designed for direct control of pumps up to 3/4 HP at 120 VAC. The SJE PumpMaster pump switch is not sensitive to rotation or turbulence allowing it to be used in both calm and turbulent applications.

• For use with 50/60 Hz, single phase pumps up to 3/4 HP at 120 VAC.
• Adjustable pumping range of 7 to 36 inches.
• Float is made of high impact, corrosion resistant, PVC housing for use in sewage and water up to 140°F.

Product Highlights

This wide angle pump switch is suitable for sewage and non-potable water applications. It features heavy duty contacts and includes a standard mounting clamp.

Product Information

Standard Information

• Brand: SJE-RHOMBUS
• Manufacturer Part Number: 1003243
• Country of Origin: United States

Technical Specifications

• Brand: SJE-Rhombus
• Mfg. Number: 1003243
• Model: 15PMPD1WP
• Series: PumpMaster Plus
• Product Type: Wide angle pump switch
• Application: Sewage/non-potable water
• Recommended Pump Horsepower: 3/4 HP or less
• Voltage: 120 VAC
• Maximum Pump Run Current: 15 Amps
• Maximum Pump Start Current: 85 Amps
• Circuit Type: Normally open
• Adjustable Pumping Range: 7" to 36"
• Plug Type: Piggyback
• Mounting Clamp: Yes
• Float Diameter: 3.05"
• Float Length: 3.56"
• Cord Length: 15 ft
• CABLE: Flexible 14 Gauge, 2 Conductor (UL, CSA) SJOW, Water-Resistant (CPE)
• MPN: 1003243
• Type: Pump Accessories and Parts
• Country of Origin: United States
• Manufacturer: SJE-Rhombus
• Manufacturer #: 1003243
