SJE Rhombus 1002181 120/230 V 10 A Sensor Flat Mini Control Switch S1002181

Product Description

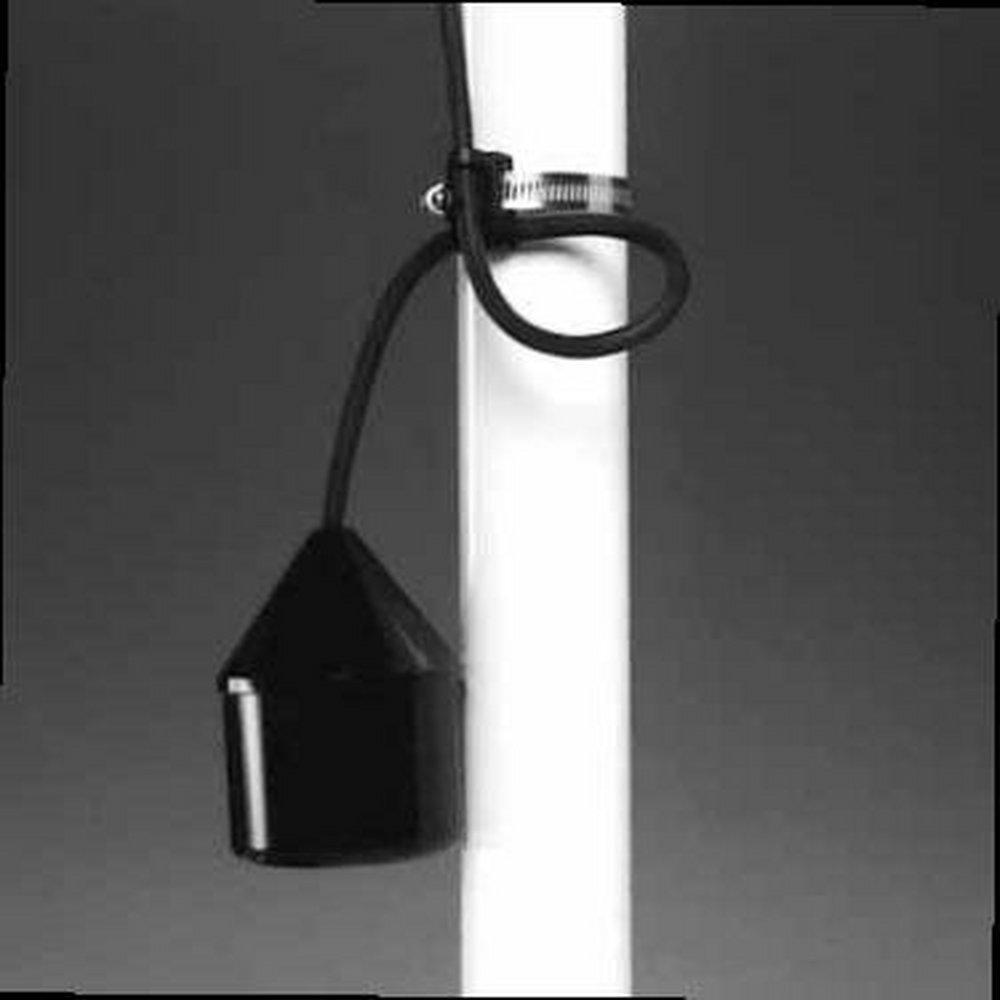

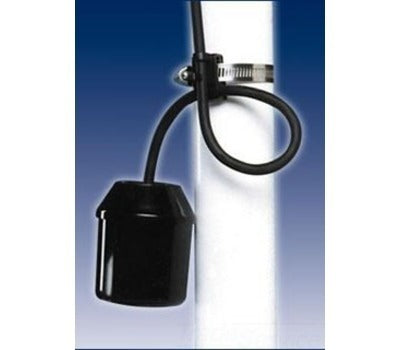

The SJE Rhombus 1002181 is a 120/230 V 10 A Sensor Flat Mini Control Switch designed for efficient pump operation. This control switch activates when the float rises slightly above horizontal. It indicates a high water level and shuts off when the float drops. It is ideal for use in confined spaces.

• Mercury activated design for reliable operation.
• Narrow-angle float switch suitable for pump control panels and alarms.
• Not sensitive to rotation for consistent performance.

Product Highlights

This device is essential for maintaining water levels in various applications, ensuring your pumps operate only when needed.

Product Information

Standard Information

• Brand: SJE Rhombus
• Part Number: S1002181

Technical Specifications

• Voltage: 120/230 V
• Current Rating: 10 A
• Switch Type: Mercury activated
• Application: Pump control panels and alarms
• Design: Flat mini sensor
• Length of Float: 10 ft.
• Width of Float: 4-11/20 in.
• Functionality: Responds to float position
