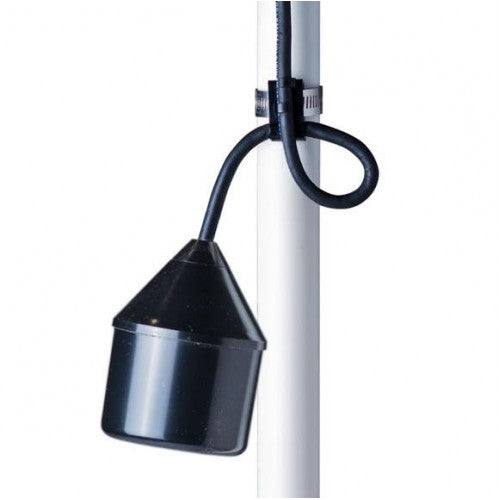

Sje-Rhombus 1002170 sensor float control switch 5 amps 120/230 VAC 30 foot cord narrow angle

Product Description

The SJE-RHOMBUS 1002170 Sensor Float Control Switch accurately monitors liquid levels in non-potable water and sewage applications. This mercury-activated, narrow-angle switch is designed for activating pump control panels and alarms. It operates at 5 amps, 120/230 VAC, 50/60 Hz, and features a 30-foot flexible 18 gauge, 2 conductor SJOW water-resistant cord. The PVC float housing is corrosion-resistant and suitable for temperatures up to 140�F (60�C).

• Suitable for use with intrinsically safe circuits.
• Features a control differential of 0.5 inches (1 cm) above or below horizontal.
• Available for normally open (high level) or normally closed (low level) applications.

Product Highlights

Accurately monitors liquid levels to activate pump control panels and alarms in non-potable water and sewage.

Product Information

Standard Information

• Brand: SJE-RHOMBUS
• Manufacturer Part Number: 1002170

Technical Specifications

• Product Code: 30SWENO
• Cable Type: Flexible 18 gauge, 2 conductor (UL, CSA) SJOW, water-resistant (CPE) jacket
• Float Dimensions: 3.38 inches diameter x 4.55 inches long (8.58 x 11.56 cm)
• Float Material: High impact, corrosion resistance, PVC housing
• Max Float Temperature: 140�F (60�C)
• Maximum Water Depth: 30 feet (9 meters)
• Maximum Pressure: 13 PSI (90 kPa)
• Switch Type: Mercury Tilt Switch
• Contacts: Single pole, single throw, mercury-to-mercury contacts
• Current: 5 Amps
• Voltage: 120/230 VAC
• Frequency: 50/60 Hz
• Activation Mode: Mercury
• Cable Length: 30 feet
• Operation Mode: Normally Open - Pump Down (empty)
• Product Collection: Sensor Float
