Sj Cord sjo16/3blkstr300v250s Sjow Sjo 16/3 Power Cord 300V

Product Description

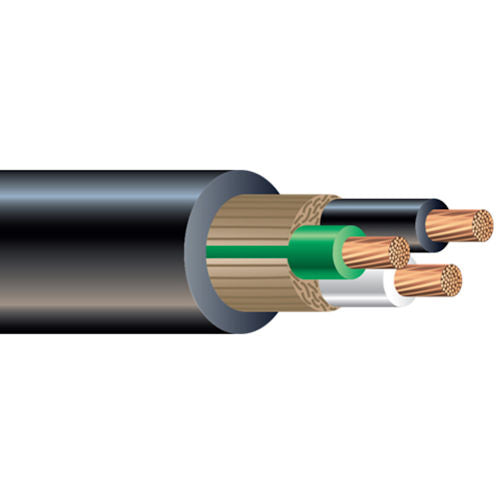

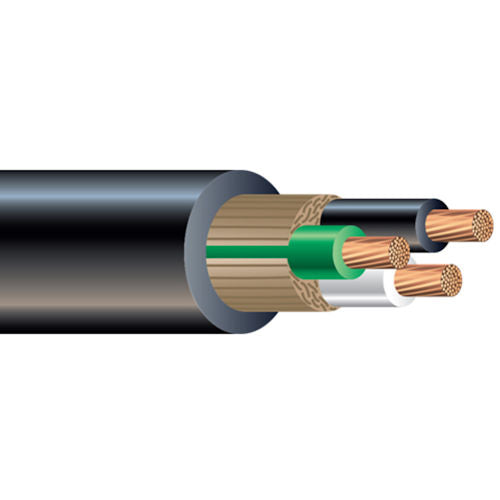

The SJ CORD sjo16/3blkstr300v250s is a 16 AWG, 3-conductor SJOW-rated flexible power cord supplied on a 250-foot spool. The cord is built with stranded copper conductors, EPDM rubber insulation, and a CPE outer jacket rated for 300 volts and 60 degrees C. SJOW designation means the cord is engineered for outdoor use and oil resistance, making it a practical choice anywhere cord sets or whips are assembled for service equipment. Electricians and service technicians reach for this cord when building extension assemblies, portable tool leads, and equipment power feeds in demanding environments.

This cord is appropriate for both residential and light commercial applications where a flexible, oil-resistant, outdoor-rated conductor is required. Common uses include portable power tool leads, temporary power drops, cord sets for service equipment, and replacement cord stock for panel feeders or appliance connections. The 250-foot spool provides enough continuous length to cut multiple whips or a single long run without splicing. Its black CPE jacket resists ultraviolet exposure, oils, and abrasion, making it well suited for shop floors, job sites, and outdoor service calls.

Key Features

• SJOW-rated for outdoor use and oil resistance
• 16 AWG stranded copper conductors for flexibility and conductivity
• EPDM rubber insulation rated to 60 degrees C
• CPE outer jacket resists oils, UV, and abrasion
• 300-volt rating suitable for standard portable equipment circuits
• 250-foot spool allows cutting to custom lengths with no splicing

Compatibility

Designed as a general-purpose SJOW/SJO flexible cord for use in cord set assembly, portable wiring, and equipment replacement applications requiring 16 AWG, 3-conductor, 300-volt rated conductor stock.

Installation Notes

Installation should be performed by a licensed electrician in accordance with NEC Article 400 governing flexible cords and cables. Power down and lock out the circuit before terminating or replacing any cord set. Use appropriately rated strain relief connectors at all termination points to prevent conductor damage at the entry. Do not use this cord as a substitute for permanent building wiring.

Technical Specifications

• Conductor Material: Copper (Stranded)
• Conductor Size: 16 AWG
• Number of Conductors: 3
• Voltage Rating: 300 volts
• Temperature Rating: 60 degrees C
• Cord Type: SJOW
• Insulation Material: EPDM Rubber
• Jacket Material: CPE
• Jacket Color: Black
• Length: 250 feet (spool)

Standard Information

• Brand: SJ CORD
• Manufacturer Part Number: sjo16/3blkstr300v250s
