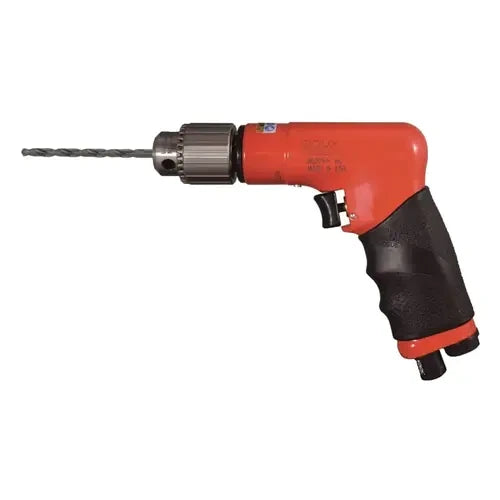

Sioux Tools sdr6p7nk3 Pneumatic Pistol Grip Drill 0.60 Hp

Product Description

The SIOUX TOOLS sdr6p7nk3 is a non-reversible pneumatic pistol grip drill built for industrial production environments. It runs a 3/8 inch keyless chuck at 700 RPM free speed and delivers 0.60 HP, making it a reliable choice for repetitive drilling operations on the production floor. The housing is lightweight aluminum, and the ergonomic handle features a soft textured rubber grip to reduce fatigue during extended use. A 3 idler gear system distributes load evenly across the drivetrain, extending tool life under continuous-duty conditions. Licensed pneumatic tool technicians and industrial maintenance crews are the primary installers and users of this drill.

The sdr6p7nk3 is designed for industrial production drilling applications where a compact, lightweight pistol grip form factor is required. Its non-reversible operation makes it well suited for dedicated forward-direction drilling tasks on assembly lines and fabrication operations. The overall length of 7.3 inches and a side-to-center distance of 0.8 inches allow access in tighter work envelopes. The 3/8 inch-24 spindle thread is compatible with standard pneumatic drill accessories used in production tooling setups.

Key Features

• Non-reversible pneumatic pistol grip drill rated at 0.60 HP and 700 RPM free speed
• 3/8 inch keyless chuck for fast bit changes without a chuck key
• Lightweight aluminum housing reduces operator fatigue in production settings
• 3 idler gear system increases load capacity and extends tool service life
• Soft textured rubber grip on ergonomic handle for sustained comfort during repetitive use
• Operates at 90 psi with a 1/4 inch NPT air inlet and minimum 3/8 inch supply hose

Compatibility

Designed for use with standard 1/4 inch NPT compressed air supply lines and pneumatic accessories with a 3/8 inch-24 spindle thread, typical of industrial production pneumatic drill tooling.

Installation Notes

Installation and setup should be performed by a qualified pneumatic tool technician or industrial maintenance professional. Before connecting or disconnecting the drill, shut off the compressed air supply and bleed the line to zero pressure. Verify the air supply is regulated to 90 psi and that the supply hose meets the minimum 3/8 inch inside diameter requirement to avoid performance loss. Follow applicable OSHA and facility safety guidelines when operating pneumatic tools in production environments.

Technical Specifications

• Power: 0.60 HP
• Free Speed: 700 RPM
• Chuck Size: 3/8 inch keyless
• Spindle Thread: 3/8 inch-24
• Operating Air Pressure: 90 psi
• Air Consumption: 25 SCFM
• Air Inlet: 1/4 inch NPT
• Minimum Hose Size: 3/8 inch
• Overall Length: 7.3 inches
• Side-to-Center Distance: 0.8 inches
• Weight: 2.7 pounds
• Housing Material: Aluminum
• Drive Mechanism: 3 idler gear system

Standard Information

• Brand: SIOUX TOOLS
• Manufacturer Part Number: sdr6p7nk3
