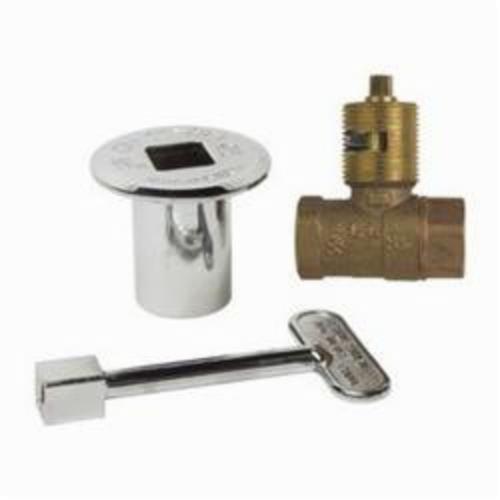

Sioux Chief 954 Tomahawk HearthMaster Straight Gas Ball Valve FNPT

Product Description

The Sioux Chief 954 is a straight gas ball valve designed for use with natural and liquid propane gas. This product features a durable cast brass body and P.T.F.E. seat for reliable performance. It provides a flow capacity of 350,000 BTU per hour with a pressure rating of 1/2 PSI.

• 1/4 turn angle or straight actuation type
• Available in bulk or with a flange and key
• Compatible with both natural and liquid propane gas

Product Highlights

This valve is suitable for controlling fuel gas in fire pits and barbecues.

Product Information

Standard Information

• Manufacturer: Sioux Chief
• MPN: 954

Technical Specifications

• Ball Material: Chrome Plated Brass
• Body Material: Brass
• End Style: FNPT
• Mfg Standards/Approvals: ANSI Z21.15-09, CSA Certified, NFPA 54, UPC Listed
• Pack Quantity: 24 cs
• Package Volume: 0.385 cu-in
• Package Weight: 0.94 lb
• Series: 954
• Softgoods Material: PTFE
• Temperature Rating: 32 to 125 deg F
• Top to Inlet Center: 2-1/8 in
• Type: Straight
