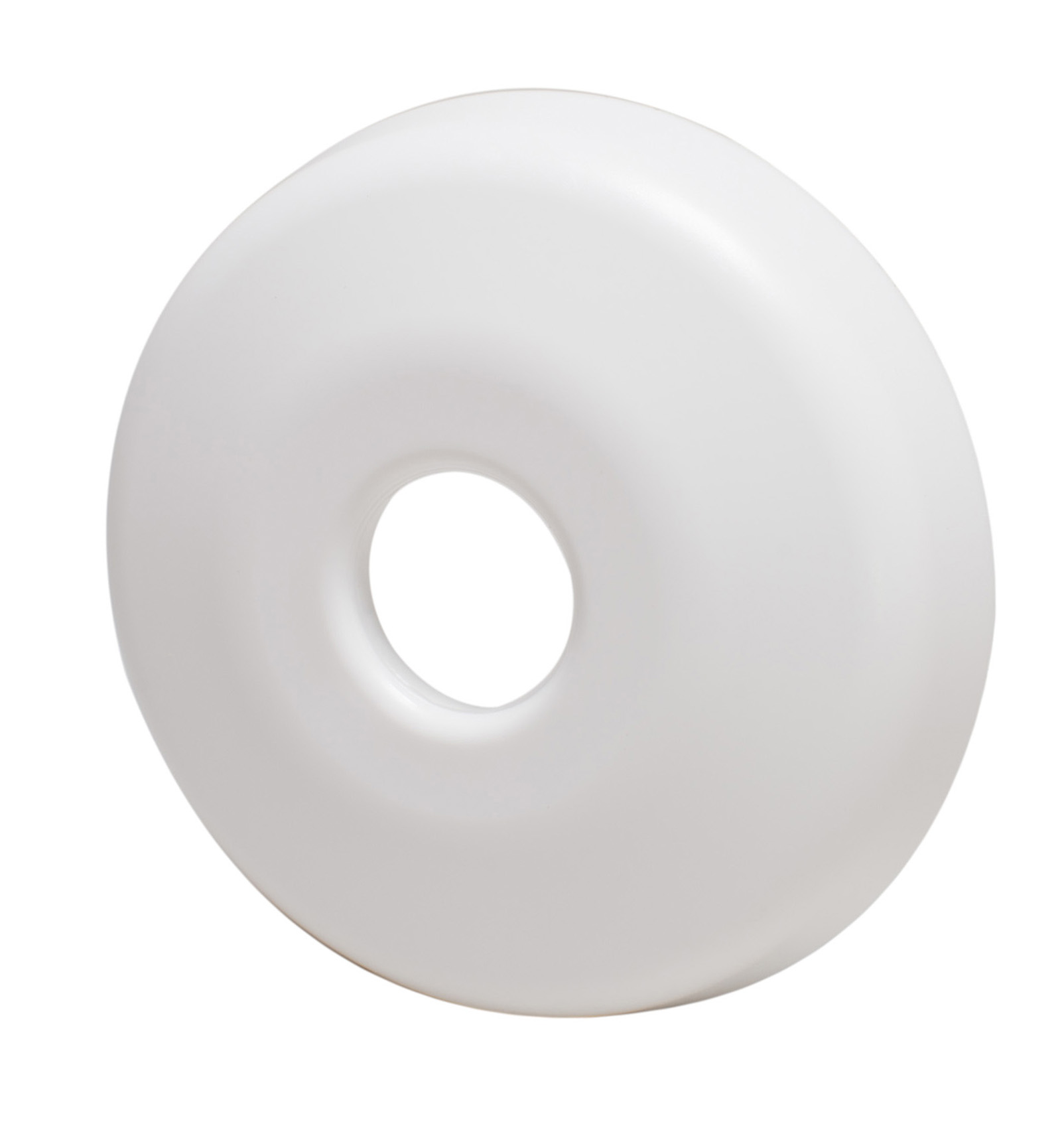

Sioux Chief 920-2W Trimtite Shallow Flange 1/2 in White

Product Description

The SIOUX CHIEF 920-2W is a shallow flange escutcheon designed to provide a clean, finished appearance around pipe penetrations in walls, floors, and ceilings. Built for 1/2 inch nominal pipe with a 5/8 inch outer diameter, this white escutcheon sits close to the surface for a low-profile look that suits tight clearances and finished spaces. Plumbers and finish installers use this fitting wherever a neat pipe cover is needed without the bulk of a standard deep flange. The white finish blends with common wall and trim colors in residential and light commercial applications.

The 920-2W is suited for use in residential and light commercial plumbing installations where supply lines, drain risers, or other pipe runs pass through finished surfaces. It is commonly installed on exposed copper, CPVC, or PEX tubing at wall stub-outs, under sink supplies, and at floor penetrations where appearance matters. The shallow profile is especially useful in retrofit work where wall clearance is limited or cabinetry sits close to the pipe exit point.

Key Features

• Shallow flange profile for low-clearance and finished-space installations
• Sized for 1/2 inch nominal pipe with 5/8 inch outer diameter tubing
• White finish for a clean look in residential and light commercial spaces
• Covers pipe penetrations in walls, floors, and ceilings for a finished appearance
• Compact design suits retrofit installations with limited wall clearance

Compatibility

Designed as an OEM-style cover escutcheon for 1/2 inch nominal plumbing pipe with a 5/8 inch outer diameter, typical of copper, CPVC, and PEX supply tubing in residential and light commercial systems.

Installation Notes

This escutcheon is installed by a licensed plumber or finish installer as part of a rough-in or trim-out phase. Slide the flange over the pipe before final connection, then position it flush against the finished surface. No special tools are required, but ensure the pipe stub-out length accommodates the flange depth before trimming. Consult local plumbing codes for requirements on pipe penetration covers in fire-rated assemblies.

Technical Specifications

• Pipe Size (Nominal): 1/2 inch
• Outer Diameter Compatibility: 5/8 inch
• Flange Type: Shallow
• Color: White
• UPC: 739236407061

Standard Information

• Brand: SIOUX CHIEF
• Manufacturer Part Number: 920-2W
