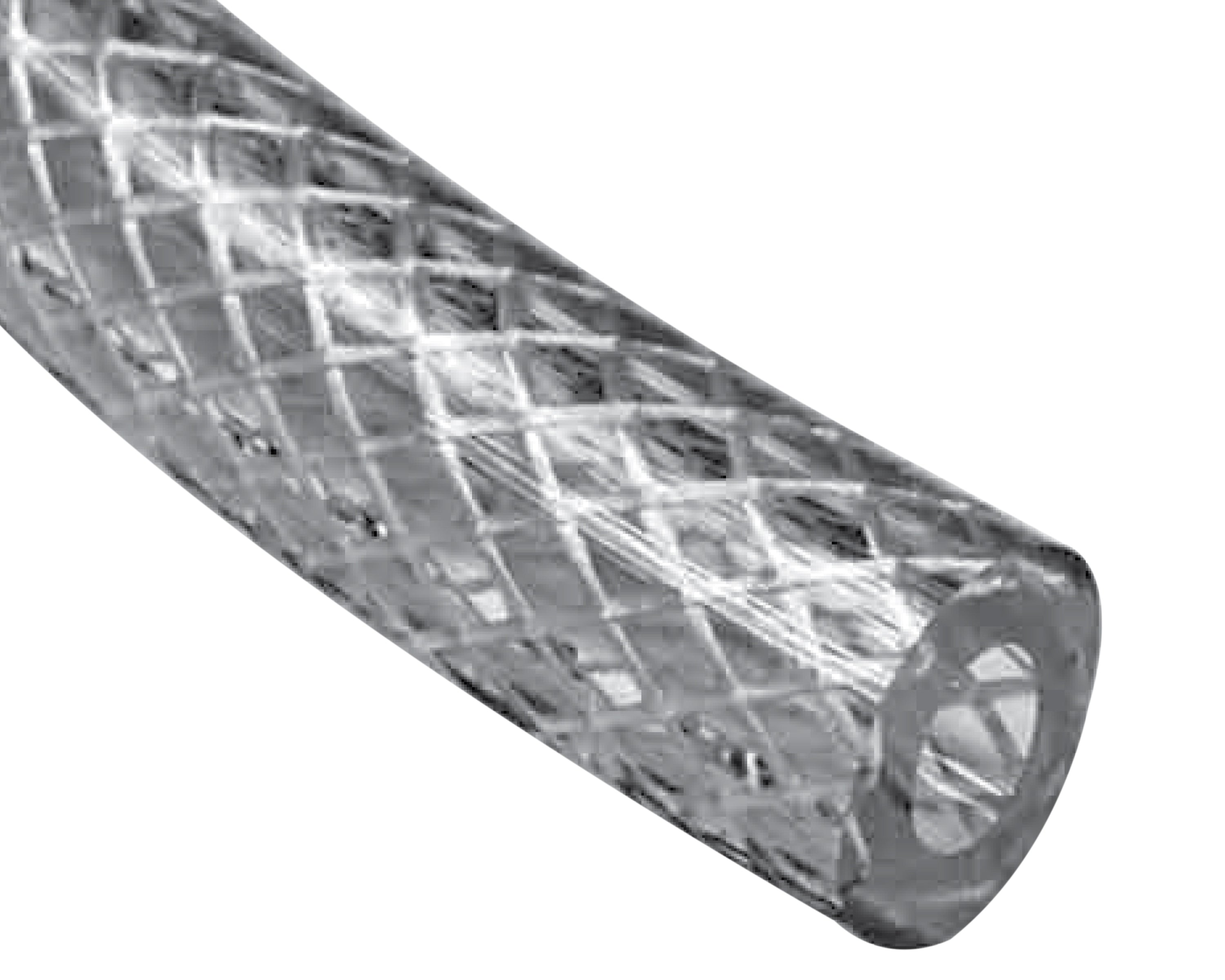

Sioux Chief 900-02206C01005 Braided vinyl tube 1/2 in ID x 3/4 in OD (1/8 in wall) 100 ft reel

Product Description

Sioux Chief 900-02206C01005 is braided clear vinyl tubing supplied on a 100 ft reel, with a 1/2 inch inner diameter, 3/4 inch outer diameter, and 1/8 inch wall thickness. The polyester-reinforced braid increases working pressure and the clear construction permits visual inspection of fluid flow. The tubing is flexible for routing and is suitable for fluid transfer and general-purpose hydraulic, pneumatic, and vacuum lines; rated 200 psi at 70�F.

• Polyester-reinforced braided vinyl construction for increased working pressure
• Dimensions: 1/2 in inside diameter x 3/4 in outside diameter with 1/8 in wall; supplied on a 100 ft reel
• Clear tubing allows visual inspection; suitable for fluid transfer, hydraulic, pneumatic, and vacuum applications

Product Highlights

Clear braided vinyl tubing, 1/2 in ID x 3/4 in OD, 100 ft reel, rated 200 psi at 70�F

Product Information

Standard Information

• Brand: SIOUX CHIEF
• Manufacturer Part Number: 900-02206C01005
• Country of Origin: US

Technical Specifications

• Brand: Sioux Chief
• Manufacturer Part Number: 900-02206C01005
• Material: Vinyl (polyvinyl chloride)
• Type: Braided vinyl tubing
• Reinforcement: Polyester braid
• Inside Diameter: 0.5 in
• Outside Diameter: 0.75 in
• Wall Thickness: 0.125 in
• Length: 100 ft
• Finish: Clear
• Working Pressure: 200 psi (at 70�F)
• Temperature Rating: Rated performance specified at 70�F (no operating temperature range provided)
• Suitable Applications: Fluid transfer, hydraulic lines, pneumatic lines, vacuum lines, general-purpose tubing
• Weight (specified): 15.2 lb
• Country of Origin: US
• UPC: 739236440273
