Product Description

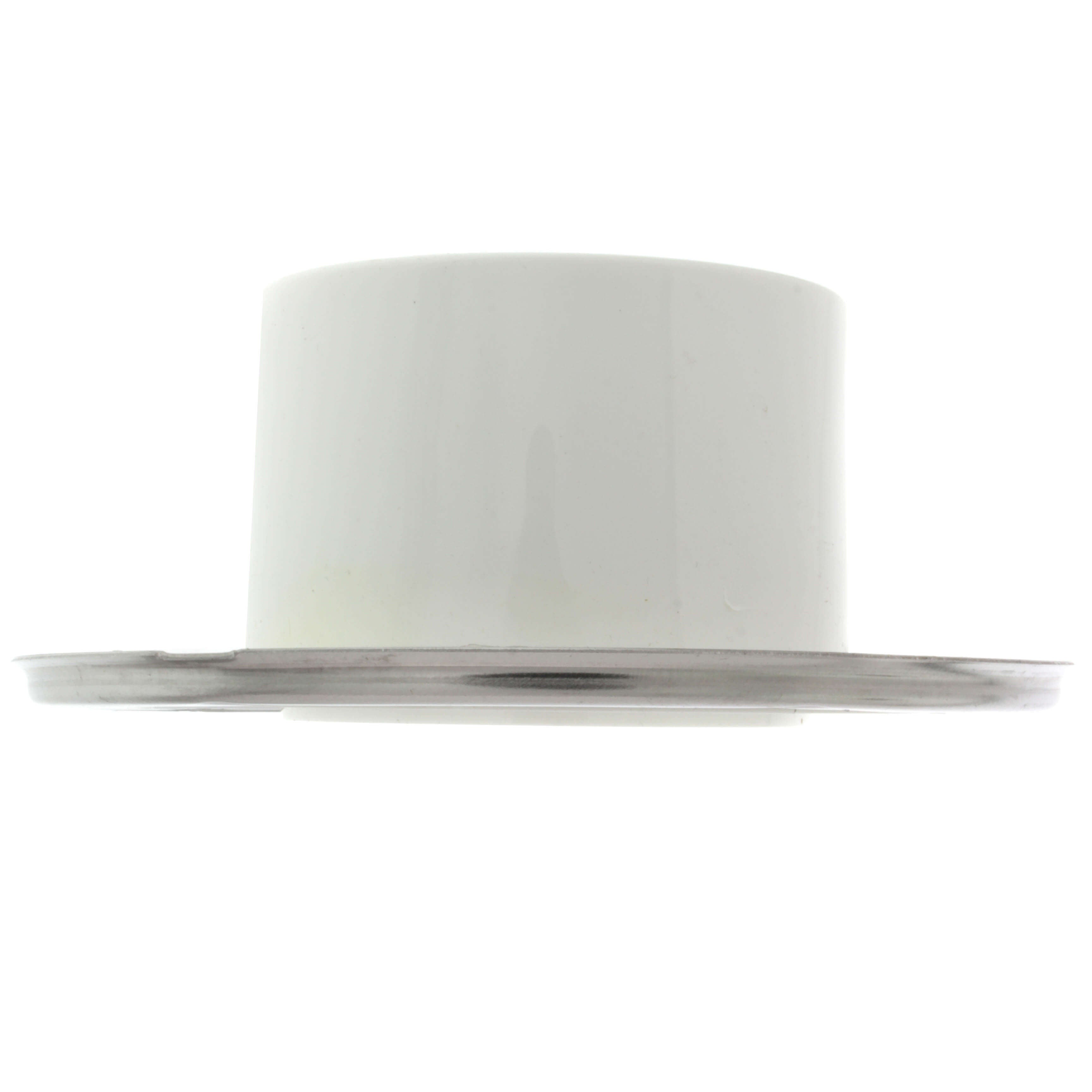

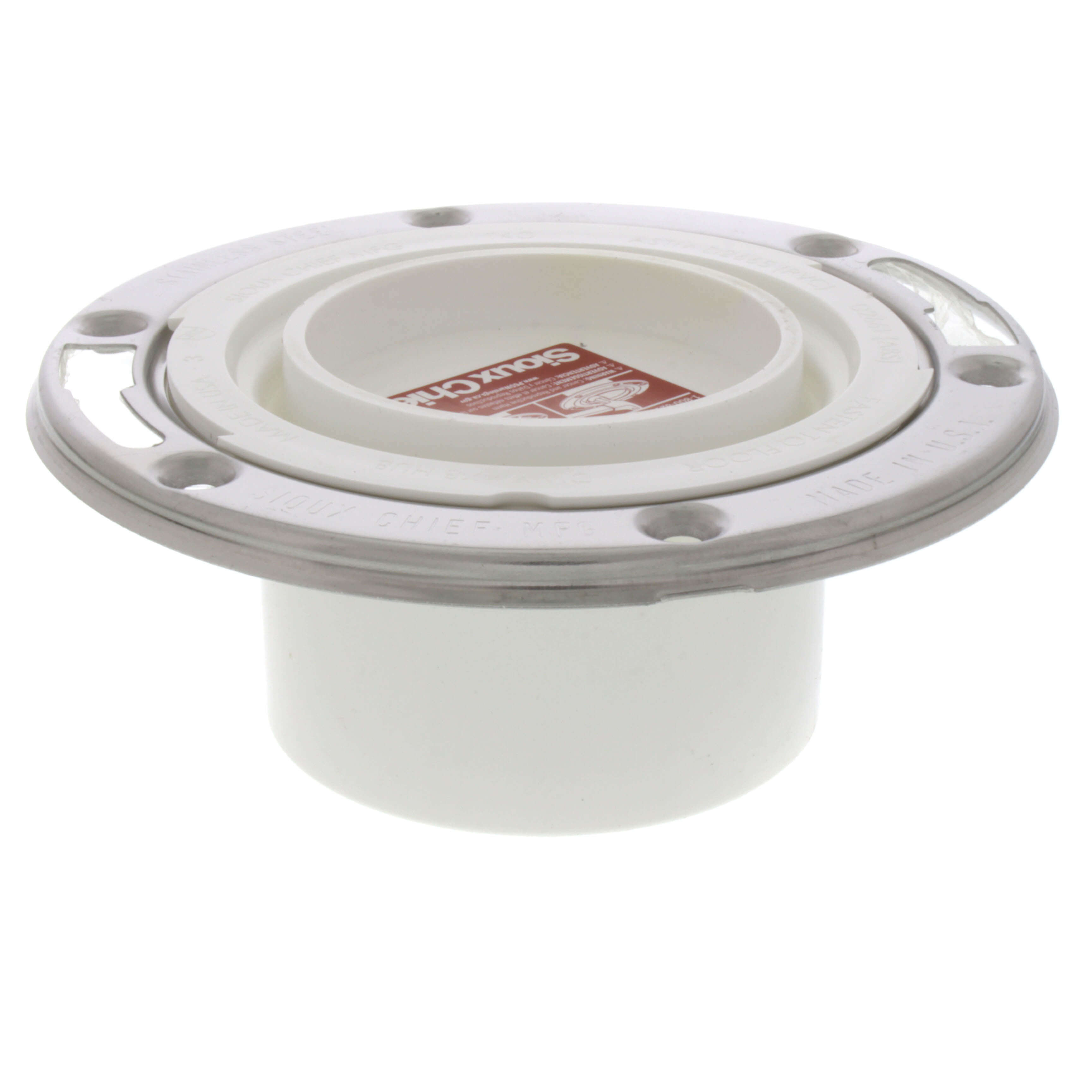

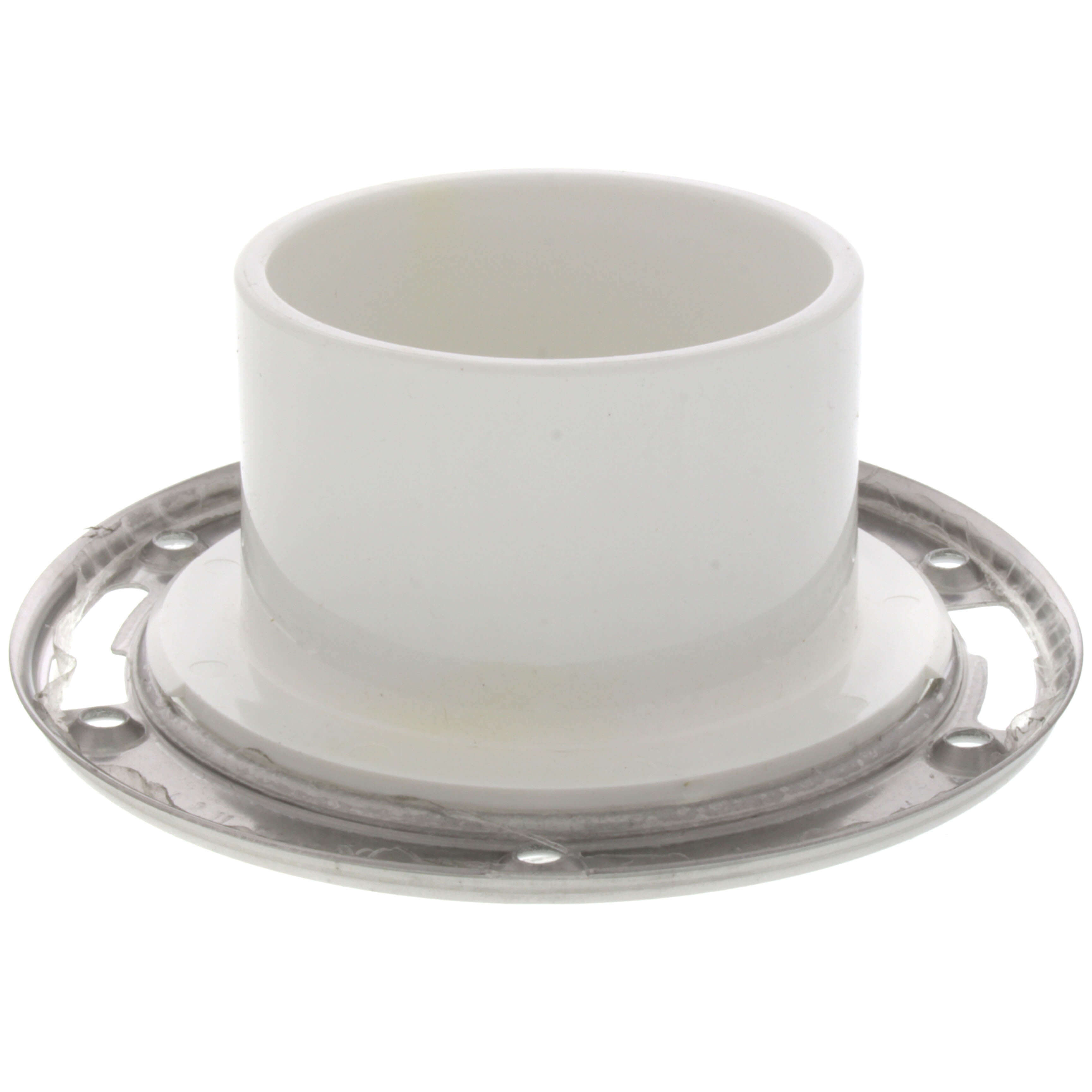

The SIOUX CHIEF 884-PTM is a 4 In.x 3 In. Schedule 40 DWV PVC Closet Flange. Designed for drainage systems, this closet flange provides a secure connection to the drain and anchors the toilet to the floor. It features a knockout cap that prevents debris from entering the drain line during rough-in and allows for testing of the DWV system.
- Flush-to-Floor design
- Durable PVC construction
- Includes stainless steel swivel ring
Product Highlights
This closet flange is easy to install and provides a secure, reliable connection for residential drainage systems.
Product Information
Standard Information
-
Brand: SIOUX CHIEF
-
Manufacturer Part Number: 884-PTM
-
Country of Origin: US
Technical Specifications
-
Brand: Sioux Chief
-
MPN: 884-PTM
-
UOM: Each
-
Item: Flange Fitting
-
Type: 1-Piece, Flush to Floor, Total Knockout
-
Size: 4 Inch Inner Diameter, 3 Inch Hub
-
Material: PVC (Body), 430 Stainless Steel (Swivel Ring)
-
Used On Item: Closet
-
Applicable Standard: UPC
-
Overall Dimension: 7.13 Inch Diameter x 2.75 Inch Height x 0.38 Inch Thickness
-
Hub Depth: 2.438 Inch
-
Screw Center Size: 6 Inch
-
Knockout Diameter: 4 Inch
-
Schedule: 40
-
Tailpiece: 2-1/2 Inch
-
Includes: 18 Gauge 430 Stainless Steel Flange Ring
-
Application: Residential
-
Packaging Type: Cut Case, Individually Bar Coded
-
Nominal Size: 3 inch x 4 inch
-
Connection: 3" SCH. 40 hub/inside
-
Flange body: PVC
-
Overall height: 2.75"
-
Overall diameter: 7.13"
-
Screw centers: 6"
-
Flange thickness: 0.38"
-
Hub depth: 2.4375"
-
Connection Type: Hub
-
Height: 2-3/4 in
-
Item Name: Closet Flange
-
Length: 7.13 in
-
Series: 884
-
Sub Brand: TKO
-
Width: 7.13 in
-
Outside Diameter: 7.13|in
-
Catalog Number: 884-PTM
-
Flange Thickness: 0.38|in
-
Schedule/Class: 40
-
Specifications Met: ASTM D2665, CSA Certified, UPC Approved
-
Resistance Properties/Features: Corrosion-Resistant
-
Connection 1 Size: 4 IN
-
Connection 1 Type: ID Fit
-
Flange Material: PVC
-
Flange Style: Swivel Ring
-
Maximum Pressure: 22 psi
-
Installation Method: Floor Mounted
