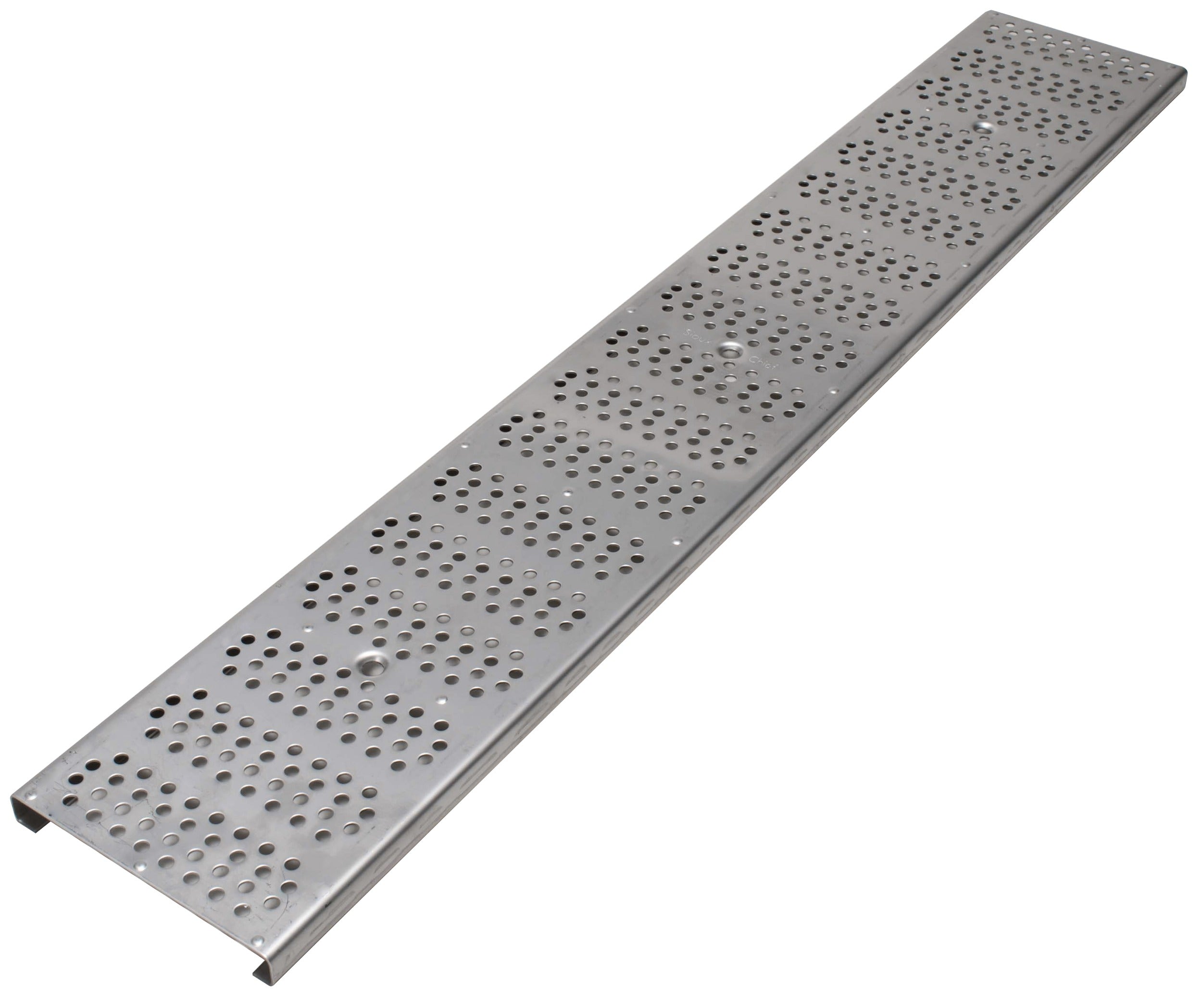

Sioux Chief 865-GSD FastTrack Grate 304 Stainless Steel Dot Pattern with Screws (36 in)

Product Description

The Sioux Chief 865-GSD is a FastTrack grate constructed from 304 stainless steel with a dot/perforated pattern and includes mounting screws for attachment. The grate measures 36 in long by 6 in wide and is 3/4 in thick, designed for integration with FastTrack trench drain channels. It is ADA-compliant, heel-resistant, and carries a DIN EN 1433 Class A15 load rating suitable for light-traffic pedestrian applications.

• 304 stainless steel perforated (dot) pattern; includes mounting screws
• Dimensions: 36 in L x 6 in W x 3/4 in Thk; weight 5.3 lbs
• ADA-compliant, heel-resistant design; DIN EN 1433 Class A15 (up to 3,300 lbs)

Product Highlights

304 stainless steel perforated FastTrack grate, 36 in x 6 in, Class A15, includes screws

Product Information

Standard Information

• Brand: SIOUX CHIEF
• Manufacturer Part Number: 865-GSD
• Country of Origin: China

Technical Specifications

• Brand: Sioux Chief
• Manufacturer Part Number: 865-GSD
• Series: 865 FastTrack
• Material: 304 Stainless Steel
• Pattern: Perforated dot pattern
• Length: 36 in
• Width: 6 in
• Thickness: 3/4 in
• Hole Diameter: 1/4 in
• Free Area: 37.0 in^2
• Finish: Matte
• Load Rating: DIN EN 1433 Class A15 (up to 3,300 lbs)
• ADA compliant: Yes
• Heel-resistant: Yes
• Standards: ASME A112.6.2, CSA B79.3, DIN EN 1433
• Compatible With: FastTrack trench drain channels
• Unit of Measure: EA
• Case Quantity: 1
• UPC: 739236324108
• Country of Origin: China
