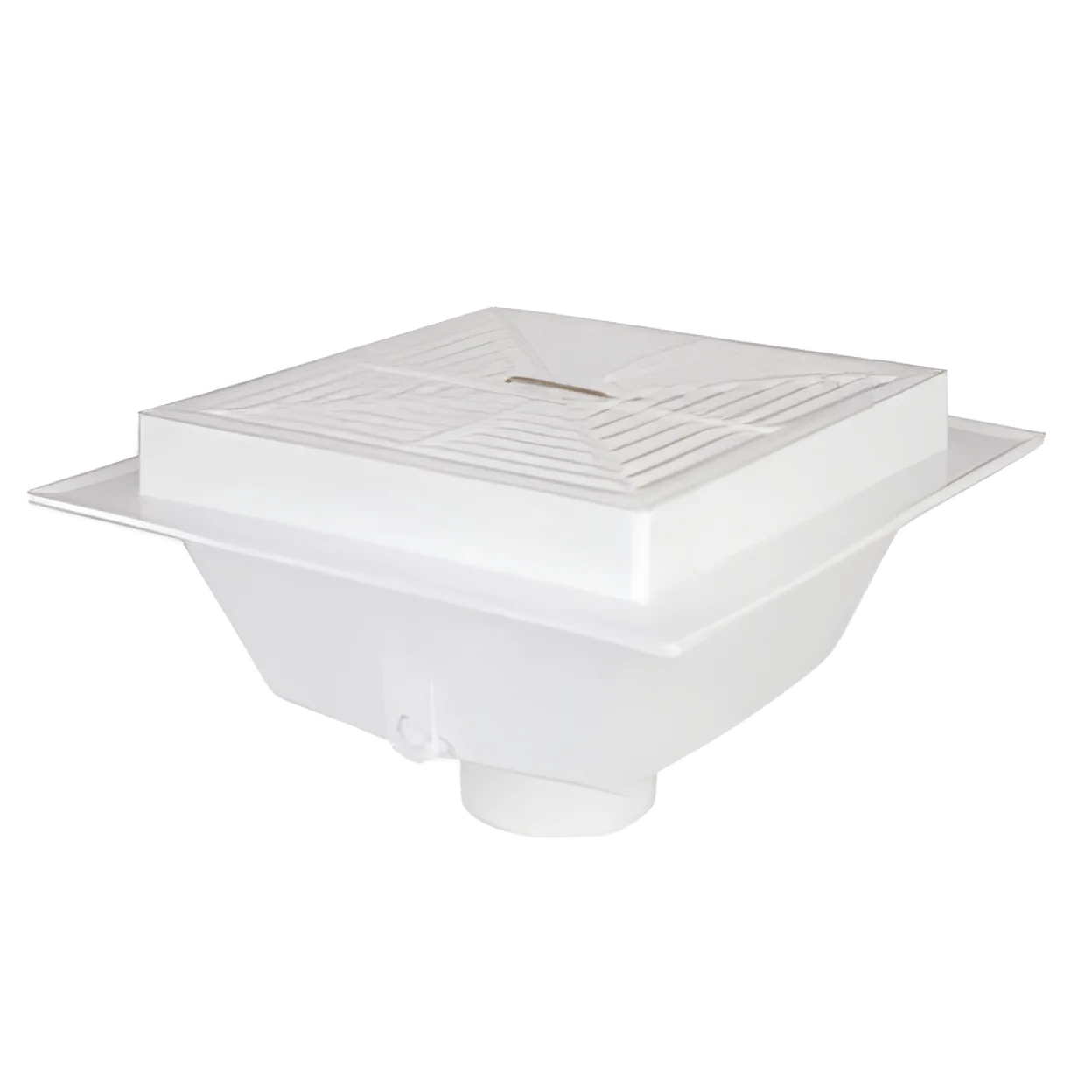

Sioux Chief 861-3P2 SquareMax 3 inch Square PVC Floor Sink with 1/2 Grate

Product Description

The Sioux Chief SquareMax 3 inch Square PVC Floor Sink with 1/2 Grate, model number 861-3P2, is designed for efficient drainage in plumbing systems. This floor sink is made from PVC and features a square shape with a drain size of three inches. The overall dimensions are eleven and three-sixteenths inches in length and width, and eight and five-sixteenths inches in depth.

• Includes a concrete anchor flange for secure installation.
• Designed for high temperature resistance, able to handle water up to one hundred eighty degrees Fahrenheit.
• Features a large sump area with smooth surfaces for improved drainage.

Product Highlights

This floor sink is ideal for use in kitchens, bathrooms, and commercial settings where effective water management is necessary.

Product Information

Standard Information

• Brand: Sioux Chief
• MPN: 861-3P2

Technical Specifications

• Material: PVC
• Drain Size: 3 inch
• Length: 11-3/16 inch
• Width: 11-3/16 inch
• Depth: 8-5/16 inch
• Bowl Length: 8-1/4 inch
• Bowl Width: 8-1/4 inch
• Bowl Depth: 6-3/8 inch
• Drain Connection: SCH 40 Hub
• Standards: ASTM D2665, ASME A112.6.7-01
