Product Description

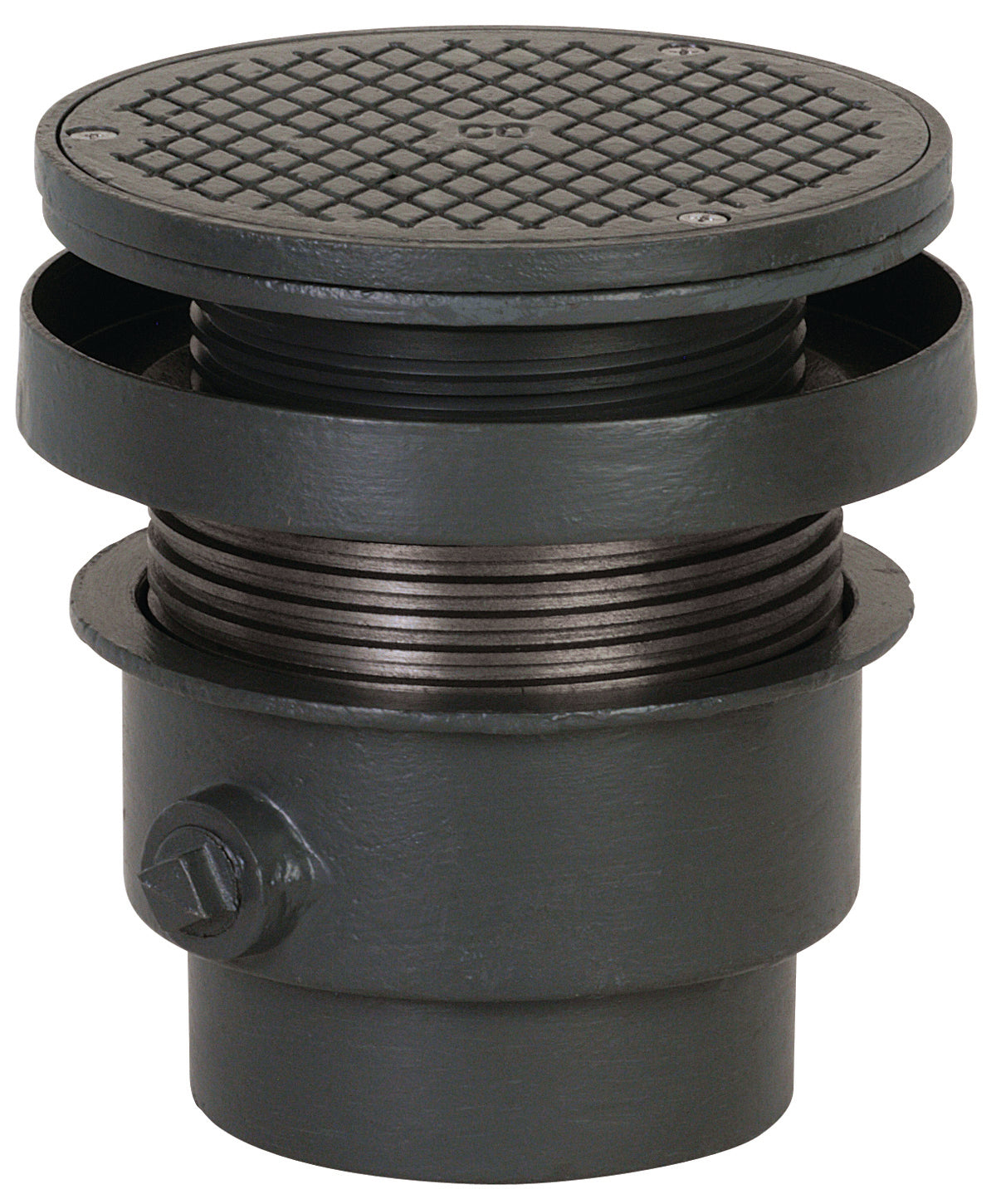

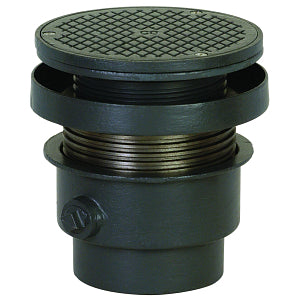

The SIOUX CHIEF 834-4DIR Cleanout Finish Line is designed for use in drainage systems, allowing for adjustments both before and after concrete is poured. The cleanout includes a slotted polypropylene or brass cleanout plug situated in the base adapter. Designed in accordance with ASME A112.36.2M-2002.
- Adjustable AFTER the pour
- Nickel-bronze covers for use in pedestrian areas. Ductile iron covers for use in heavy duty applications
- Ductile iron Base Adapter with polypro cleanout plug. Ductile iron Coring Sleeve and Head Adapter. Poly Coring Plug
Product Highlights
Adjustable cleanout with ductile iron construction, suitable for heavy-duty applications and pedestrian areas.
Product Information
Standard Information
-
Brand: SIOUX CHIEF
-
Manufacturer Part Number: 834-4DIR
-
Country of Origin: CN
Technical Specifications
-
Item Number: 834-4DIR
-
Brand: SIOUX CHIEF
-
UPC: 739236376473
-
Country of Origin: CN
-
UM: EA
-
Connection 1 Size: 4 IN
-
Connection 1 Type: No-Hub
-
Cover Material: Ductile Iron
-
Cover Style: Round
-
Load Rating: 6000 lb
-
ASME: ASME A112.36.2M 2002
-
Adjustable: Yes
-
Cover Shape: Round
-
Diameter: 6-1/2
-
Drain Base Height: 4-1/2
-
Drain Base Material: Ductile Iron
-
Fits Pipe Size: 4 in
-
Material: Brass, Plastic
-
Outlet Type: No Hub
-
Plug Diameter: 3-1/2
-
Plug Included: Yes
-
Product Type: Cleanout
-
Cleanout Size: 4 in
-
Cover Size: 6-5/8 in Dia
-
Domestic/Import: Import
-
Series: 834
-
Type: Adjustable
