Sioux Chief 832-25DSQ FinishLine 832 Series 2 in No-Hub Ductile Iron Floor Drain Assembly (5-7/8 in Square) S83225DSQ

Product Description

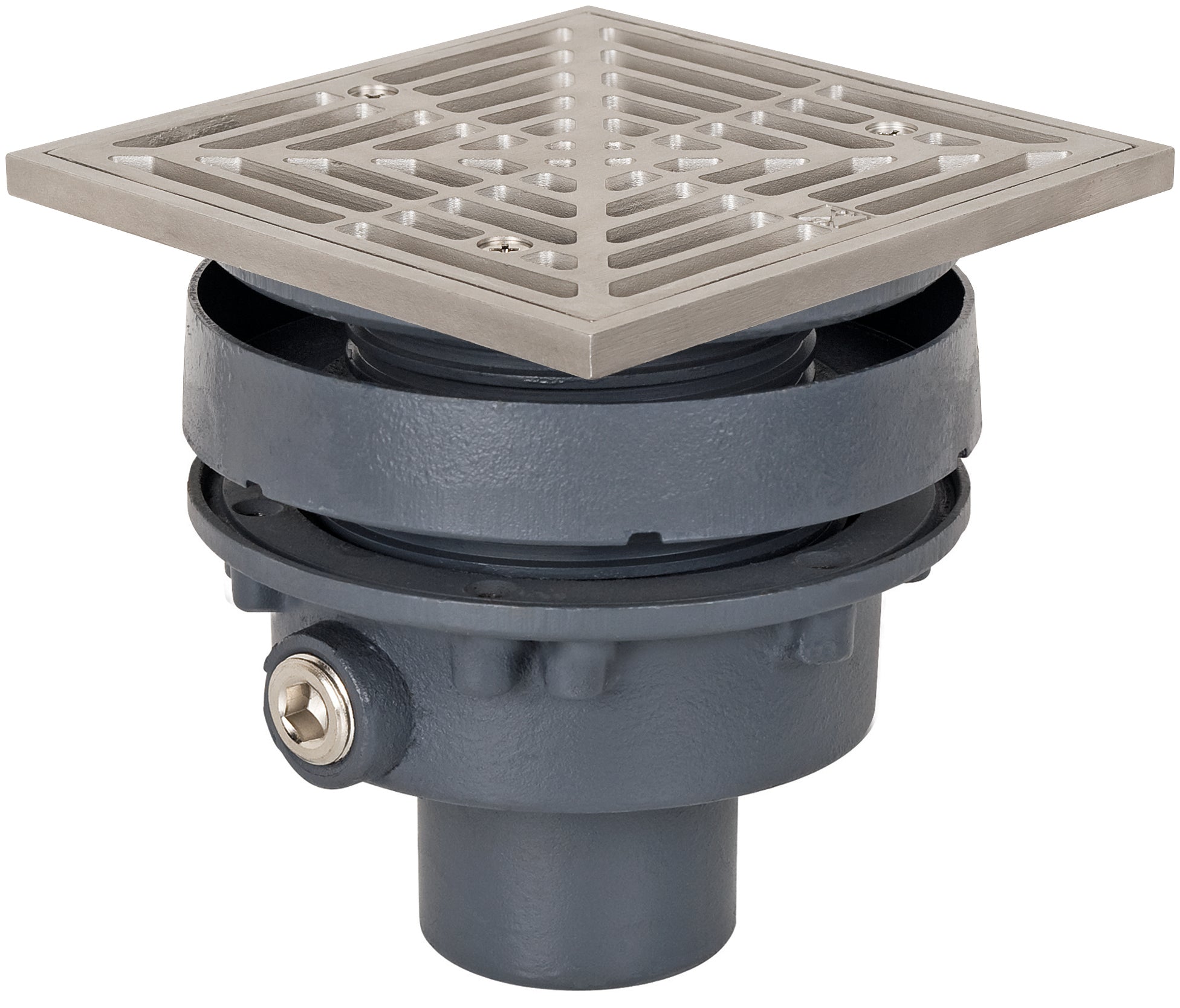

Sioux Chief 832-25DSQ is a FinishLine 832 Series floor drain assembly with a 2 in no-hub outlet and a ductile iron body. The unit includes a 5-7/8 in square 304 stainless steel grate, matching ring, removable strainer, and a plugged 1/2 in FIP trap primer port. Adjustable on-grade design allows adjustment after the concrete pour and includes a 3-3/4 in base adapter, coring sleeve, head adapter, and poly coring plug. Complies with ASME A112.6.3-2001.

• Ductile iron body with 2 in no-hub outlet and 5-7/8 in square 304 stainless steel grate, ring, and removable strainer
• Adjustable on-grade assembly with 3-3/4 in base adapter, coring sleeve, head adapter, and poly coring plug; adjustable after pour
• Features a plugged 1/2 in FIP trap primer port, 12.75 sq-in grate free area, 2000 lb stainless steel load rating, and ASME A112.6.3-2001 compliance

Product Highlights

Adjustable on-grade ductile iron floor drain with 2 in no-hub outlet and 5-7/8 in square 304 stainless steel grate.

Product Information

Standard Information

• Brand: SIOUX CHIEF
• Manufacturer Part Number: 832-25DSQ
• Country of Origin: China

Technical Specifications

• Brand: Sioux Chief
• MPN: 832-25DSQ
• Manufacturer Part Number: S83225DSQ
• Series: 832
• Type: On-grade / Adjustable
• Connection Type: No-Hub
• Outlet Size: 2 in
• Body Material: Ductile iron
• Grate Material: 304 stainless steel
• Grate Shape/Size: Square, 5-7/8 in
• Strainer: Removable stainless steel strainer
• Grid Free Area: 12.75 sq-in
• Trap Primer Port: 1/2 in FIP (plugged)
• Base Adapter Height: 3-3/4 in
• Included Components: Grate, ring, removable strainer, ductile iron base adapter, coring sleeve, head adapter, poly coring plug
• Load Rating: 2000 lb (stainless steel, light-duty, heel proof)
• Standards: ASME A112.6.3-2001
• Patent: US Patent #7,735,512
• Adjustable After Pour: Yes
• UPC: 739236307736
• Country of Origin: CN
• Item Number: 4107058
• Weight: 9.67 lb
