Sioux Chief 823-TX48SP Shower Pan Drain (48-In Linear Head)

Product Description

Sioux Chief 823-TX48SP is a 48-inch linear shower pan drain with a stamped stainless steel strainer and a 2" PVC/ABS Schedule 40 hub connection. The drain body is PVC with a stainless steel head and removable strainer, and the assembly supports one-directional slope for use with large-format tile and ADA or barrier-free applications. Adjustable height ranges from 1-1/2" to 3"; head width is 3-3/8" and depth is 7/8". Unit weight is 8.65 lb.

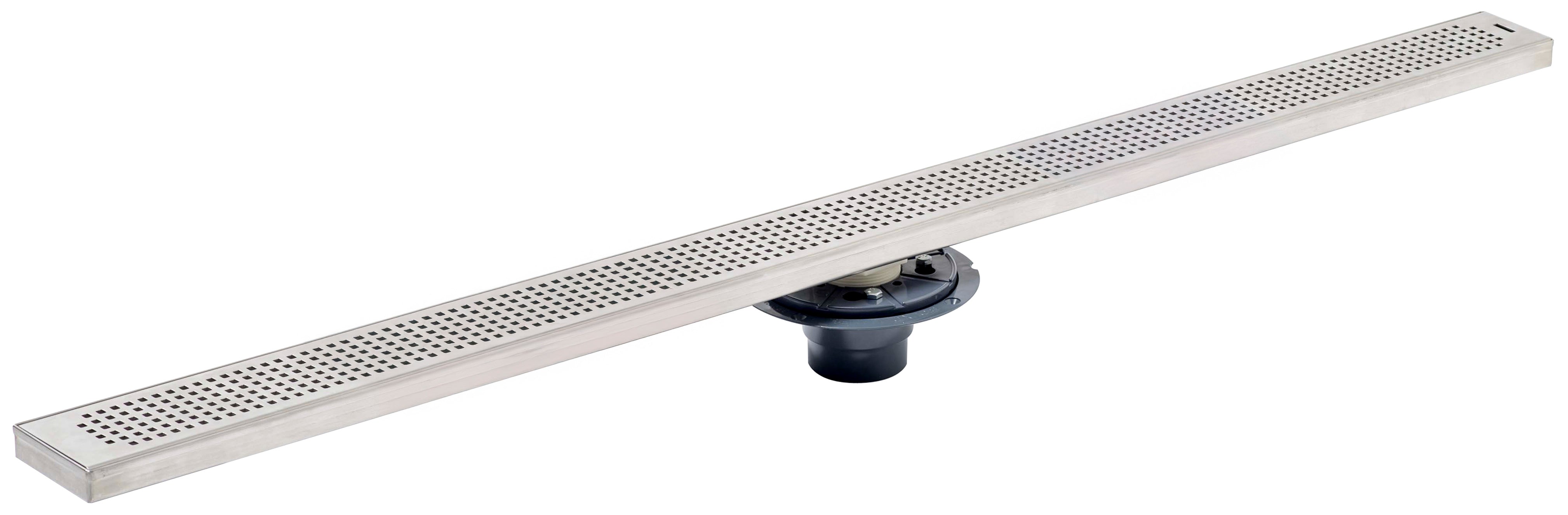

• 48-inch linear head with stamped square-holes stainless steel strainer; head width 3-3/8" and depth 7/8"
• 2" PVC/ABS Schedule 40 hub connection; drain body PVC, clamping collar polypropylene, adjustment adapter ABS
• Adjustable height 1-1/2" to 3"; includes steel-to-PVC transition bushing, strainer basket, hook-style key, and test plug

Product Highlights

48" stamped stainless steel linear head; 2" PVC hub; adjustable 1-1/2"–3" height; supports large-format tile and ADA/barrier-free installations.

Product Information

Standard Information

• Brand: SIOUX CHIEF
• Manufacturer Part Number: 823-TX48SP
• Country of Origin: CN

Technical Specifications

• Brand: Sioux Chief
• MPN: 823-TX48SP
• Product Name: Shower pan drain with 48 in linear head - stamped strainer
• Series: 823 Series
• Type: Linear shower drain
• Head Length: 48"
• Head Width: 3-3/8"
• Head Depth: 7/8"
• Adjustable Height: 1-1/2" - 3"
• Connection: PVC hub
• Connection Size: 2"
• Connection Standard: PVC/ABS Schedule 40 hub connection
• Drain Body Material: PVC
• Head/Strainer Material: Stainless steel
• Strainer Style: Stamped square-holes
• Clamping Collar Material: Polypropylene
• Adjustment Adapter Material: ABS

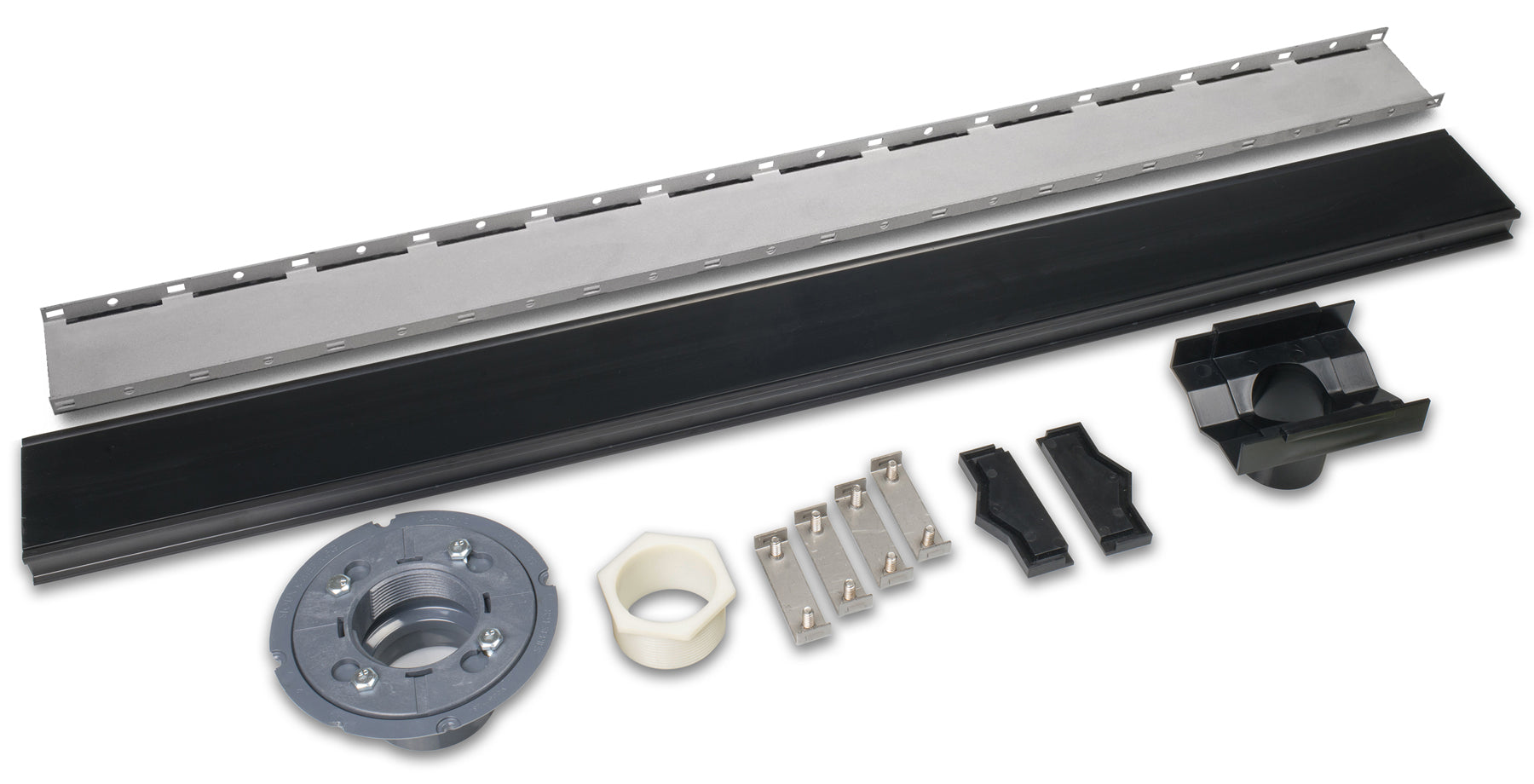

• Set Includes: Stainless steel drain, matching length strainer, steel-to-PVC transition bushing, PVC shower pan liner/flashing drain, strainer basket, hook-style key, test plug (part# 821-TP)
• Weight: 8.65 lb
• Finish: Brushed
• Suitable For: Tile floor; ADA and barrier-free applications
• Nominal Size: 2"
• UPC: 739236323682
• Country Of Origin: CN
