Sioux Chief 821-T2PCP Drain and Plug Shower Pan PVC Round 2 in

Product Description

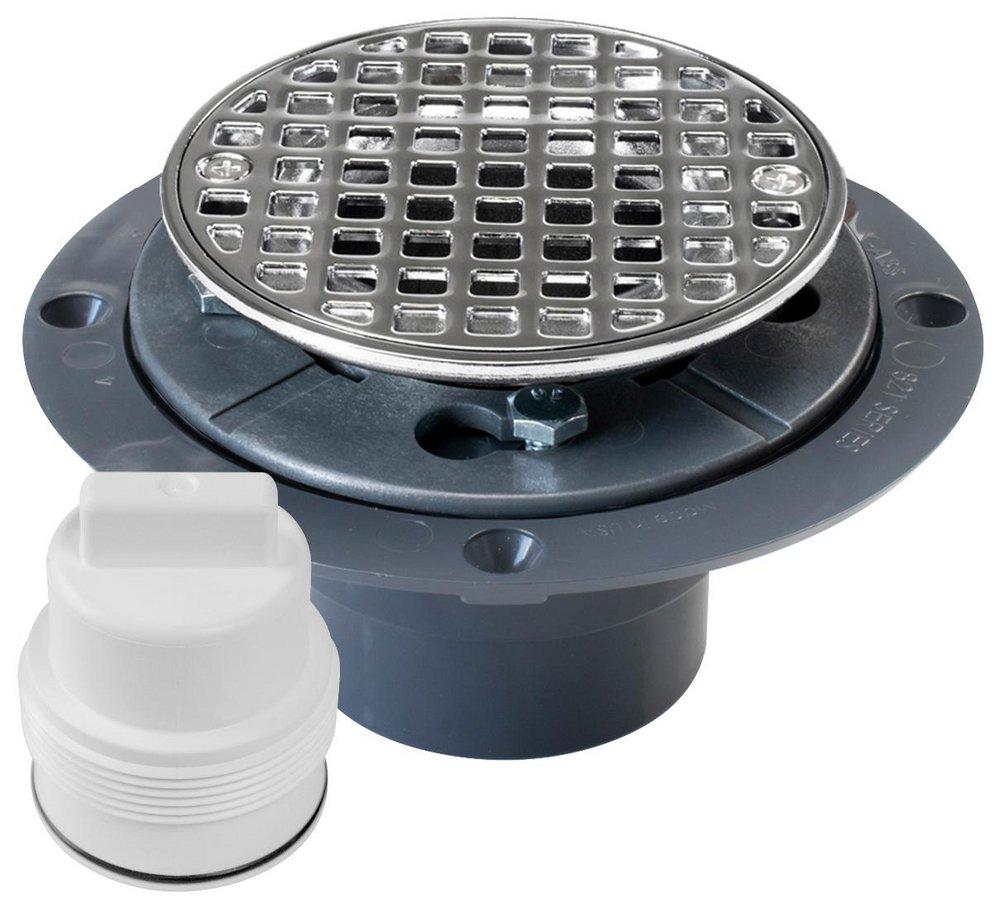

Sioux Chief 821-T2PCP is a PVC shower pan drain assembly with a 2 in nominal solvent-weld hub and a round strainer. It includes a Double Duty test plug that seals above the pipe and below the clamping collar for DWV and shower pan testing, and a beveled flashing base adapter with mounting holes for subfloor installation. The invertible clamping collar fastens with four screws into brass inserts. Grid diameter is 4-1/4 in and overall diameter is 6-5/8 in; designed to ASME A112.18.2-2005 / CSA B125.2-05.

• 2 in Schedule 40 hub connection for solvent-weld to DWV pipe
• Double Duty test plug seals above pipe and below clamping collar for DWV and water tests
• Beveled flashing base adapter, invertible clamping collar with four screws into brass inserts; 4-1/4 in grid

Product Highlights

PVC shower pan drain with Double Duty test plug, 2 in solvent-weld hub, 4-1/4 in grid, ASME/CSA compliant

Product Information

Standard Information

• Brand: SIOUX CHIEF
• Manufacturer Part Number: 821-T2PCP
• Country of Origin: US

Technical Specifications

• Brand: Sioux Chief
• MPN: 821-T2PCP
• Series: 821
• Type: Drain and plug shower pan assembly
• Material: PVC (drain base); steel/chrome-plated strainer
• Shape: Round
• Pipe Diameter: 2 in nominal
• Connection: 2" Sch. 40 hub (solvent weld)
• Grid Diameter: 4-1/4 in
• Overall Diameter: 6-5/8 in
• Features: Double Duty test plug; invertible clamping collar with brass inserts; beveled flashing base adapter with mounting holes
• Standards: ASME A112.18.2-2005 / CSA B125.2-05
• Finish: Chrome-plated strainer
• UPC: 739236381163
• Country of Origin: US
• Weight (lbs): 1.8331
