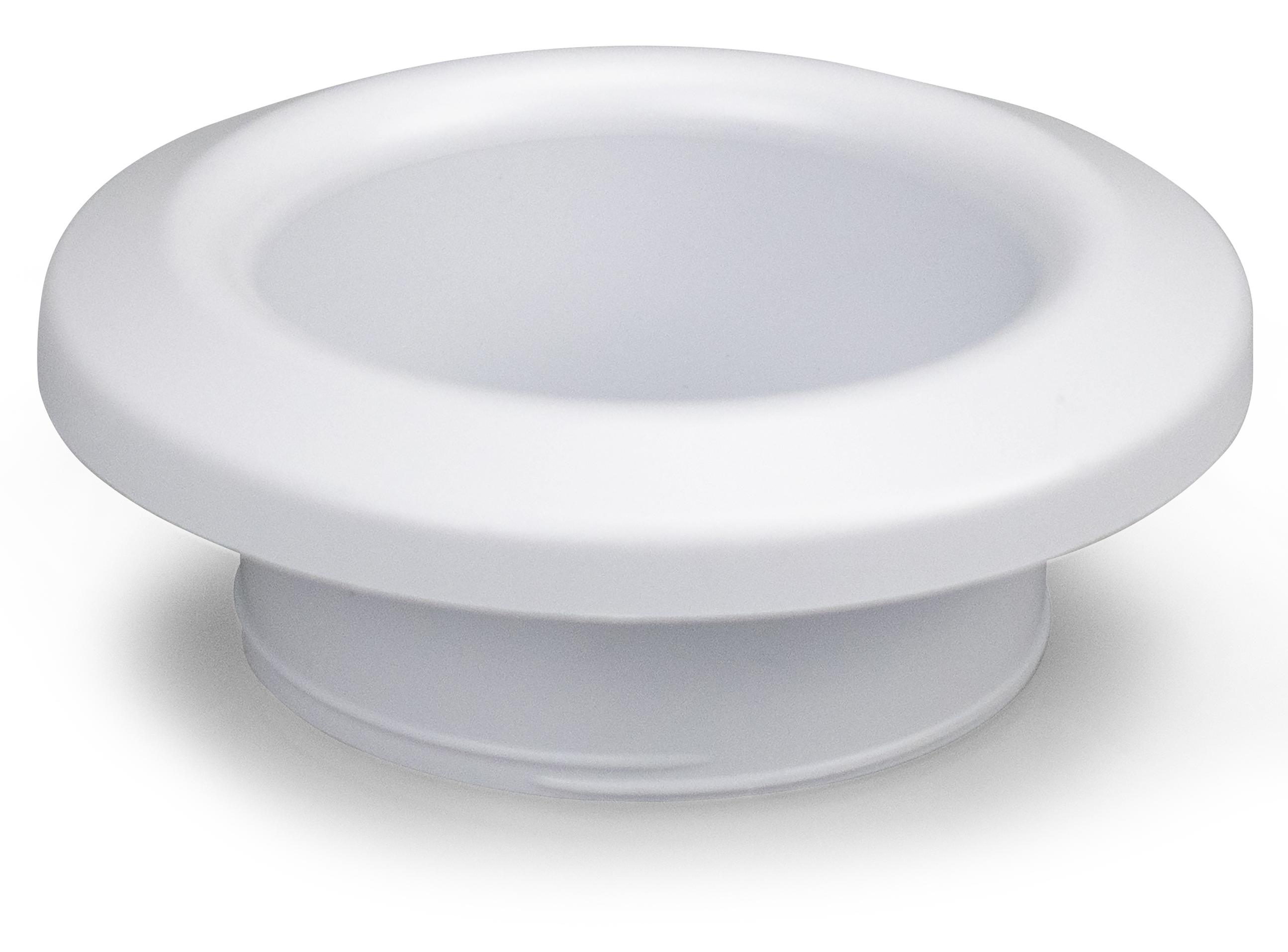

Sioux Chief 699RF Proplate Fire Rated Frame

Product Description

The SIOUX CHIEF 699RF is a fire rated frame designed to protect wall penetrations where plumbing rough-in plates meet fire-rated assemblies. This escutcheon-style frame maintains the integrity of fire-rated walls and ceilings by closing the gap around pipes at the point of penetration. It is used in new construction and retrofit applications where building codes require fire-rated cover plates. Licensed plumbers and finish contractors typically install this component as part of code-compliant rough-in work in residential and light commercial projects.

The 699RF is suited for installations in fire-rated wall and ceiling assemblies where pipes pass through gypsum board or similar fire-rated substrates. It provides a clean, finished appearance while satisfying inspection requirements for fire-rated penetrations. This frame is commonly specified in multifamily residential, commercial, and institutional construction where fire-code compliance at pipe penetrations is mandatory.

Key Features

• Fire rated construction for use in fire-rated wall and ceiling assemblies
• Designed to cover and protect pipe penetrations at rough-in locations
• Suitable for new construction and retrofit installations
• Provides a finished appearance while meeting fire code requirements
• Compatible with standard plumbing rough-in plate applications

Compatibility

Designed as an OEM-style replacement and standard fitment fire rated frame for use with plumbing pipe penetrations in fire-rated wall and ceiling assemblies.

Installation Notes

Installation is typically performed by a licensed plumber or finish contractor during rough-in or finish plumbing stages. Shut off water supply and ensure the work area is safe before beginning any pipe penetration work. Installation must comply with applicable local building codes and fire codes governing fire-rated wall and ceiling penetrations. Consult the authority having jurisdiction to confirm code acceptance before installation.

Technical Specifications

• UPC: 739236700353

Standard Information

• Brand: SIOUX CHIEF
• Manufacturer Part Number: 699RF
