Sioux Chief 699RA1-XR Proplate Fire Rated 3/8 Ang F1807 Rough-In

Product Description

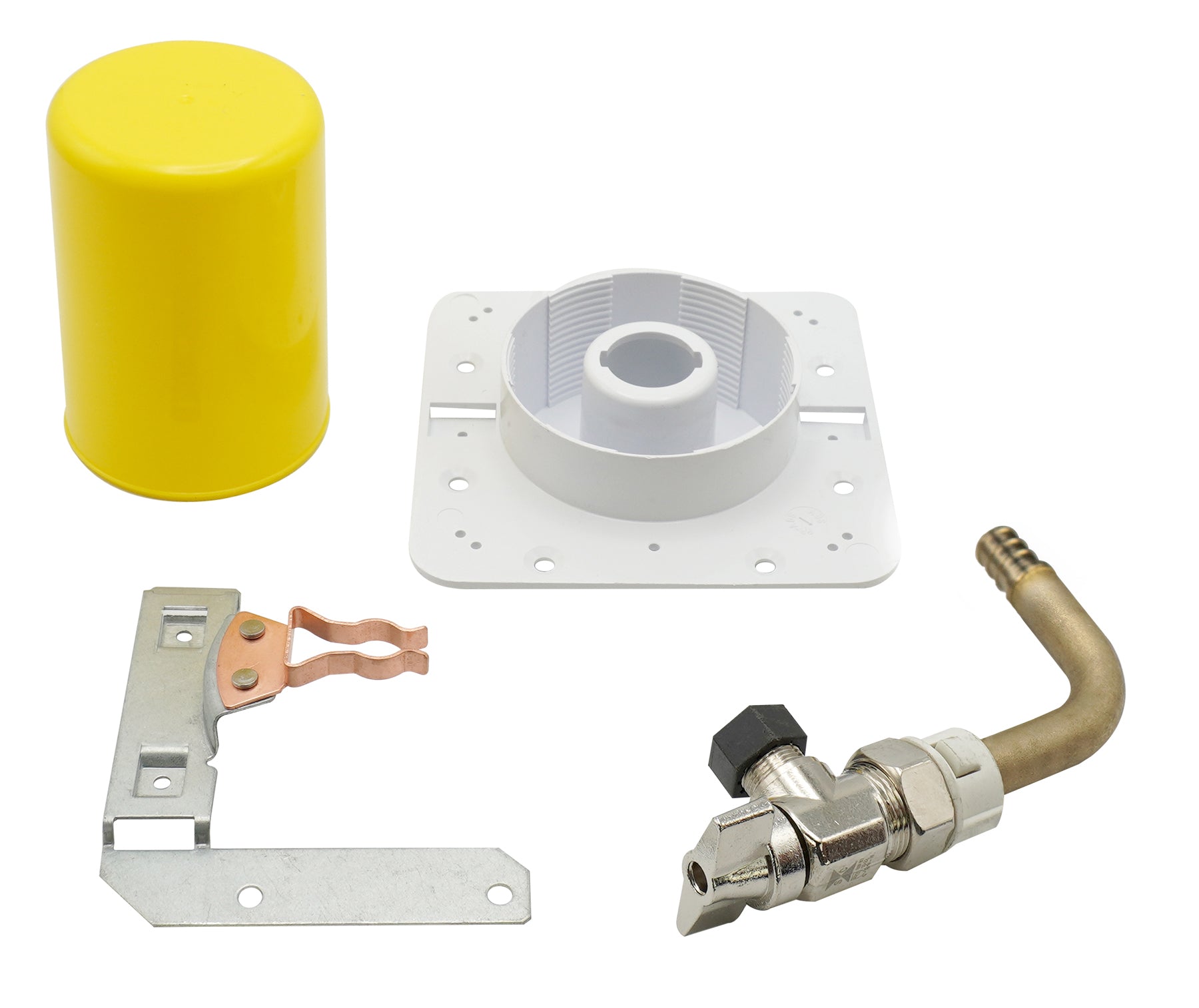

The SIOUX CHIEF 699RA1-XR is a single valve outlet plate from the 699R series, designed for accessible mounting of water supply in plumbing systems. It features a replaceable valve design and incorporates the valve, escutcheon, stub out, and bracket in one product. The plate is corrosion-proof and can be secured directly to a vertical stud or between studs.

• Installs at Rough - incorporates valve, escutcheon, stub out and bracket in one product.
• Patented, replaceable valve design.
• Quarter-turn ball valve with 3/8" OD compression connection.

Product Highlights

This fire-rated outlet plate ensures consistent, professional installations with fewer parts to manage and install. It includes a debris cover for protection during rough-in.

Product Information

Standard Information

• Brand: SIOUX CHIEF
• Manufacturer Part Number: 699RA1-XR
• Country of Origin: CN

Technical Specifications

• Connection 1 Size: 1/2 IN
• Connection 1 Type: F1807
• Connection 2 Size: 3/8 IN
• Connection 2 Type: Comp.
• Fire-Rated?: Yes
• Material: FR-ABS
• Specifications: 3/8 in Compression Outlet x 1/2 in PEX Connection
• Manufacturer: Sioux Chief
• Manufacturer #: 699RA1-XR
• Series: 699R
• Additional Information: 1/2 in F1807 PEX Connection, 3/8 in Outlet, 699R Series, 200 deg F Temperature Rating, 150 psig Pressure Rating
