Sioux Chief 699-A1-XR Omega Plate Rough Supply Box 3/8 Angle Stop X 1/2 Pex F1807 Connection

Product Description

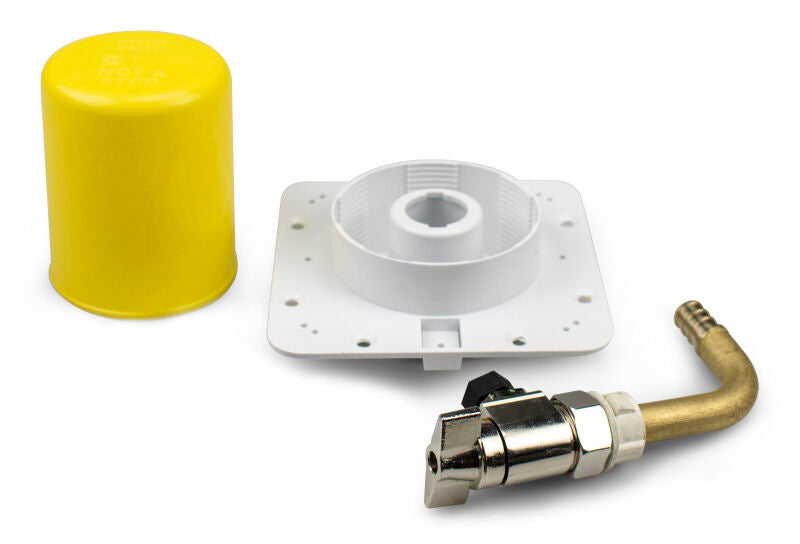

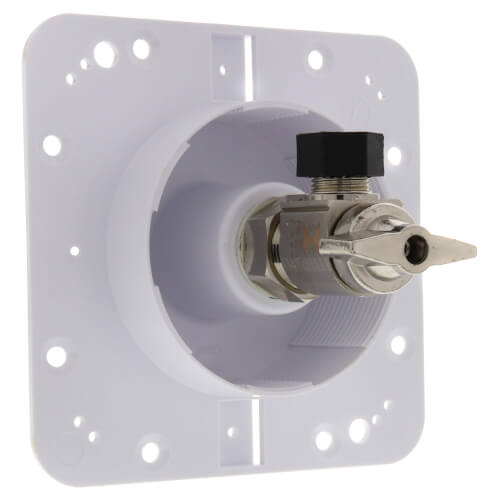

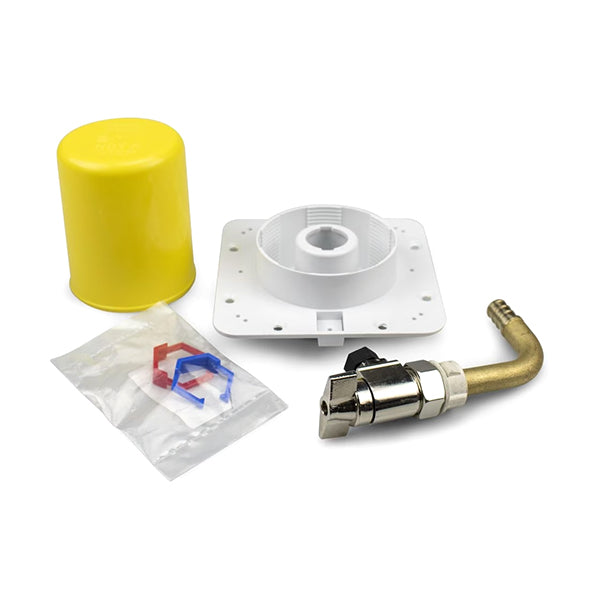

The Sioux Chief 699-A1-XR ProPlate supply access plate provides accessible mounting for water supply systems. Designed for installation directly to a vertical stud or between studs, it offers convenient access. The supply line can be installed above or below the plate. Constructed of durable ABS, it includes a polyethylene debris cover for protection during rough-in. This unit features a 3/8" lead-free brass valve and a 1/2" PEX crimp connection.

• Designed for 1/2 inch PEX inlet and 3/8 inch compression outlet.
• Mounts directly to a vertical stud or between studs for convenient access.
• Includes a polyethylene debris cover to protect the valve and connection.

Product Highlights

This ProPlate supply access plate integrates valve, escutcheon, stub out, and bracket for simplified rough-in installations.

Product Information

Standard Information

• Brand: SIOUX CHIEF
• Manufacturer Part Number: 699-A1-XR
• Country of Origin: United States

Technical Specifications

• Manufacturer: SIOUX CHIEF
• MPN: 699-A1-XR
• Series: OmegaPlate 699
• Inlet Size: 1/2 inch
• Outlet Size: 3/8 inch
• Inlet Connection Type: F1807 PEX
• Outlet Connection Type: Compression
• Product Type: Single Valve Outlet Plate
• Quantity: 1
• Material: ABS Plastic, Polyethylene
• Maximum Pressure: 150 PSIG
• Temperature Rating: 200 Degrees F
• Overall Width: 4-1/2 in
• Overall Height: 4-1/2 in
