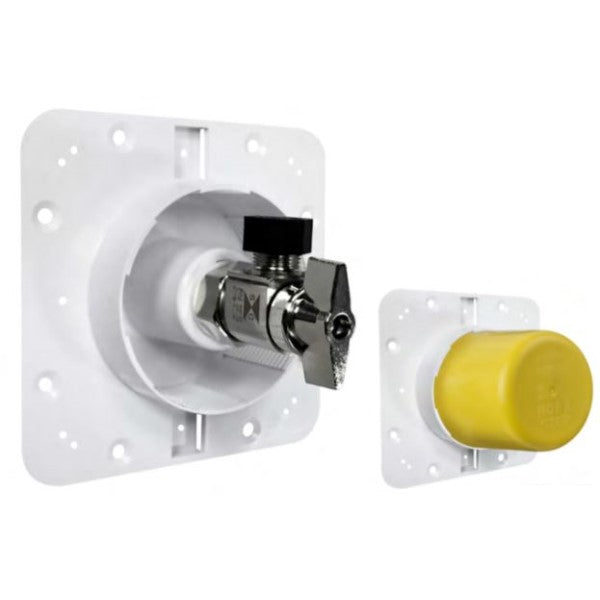

Sioux Chief 699-A1-MR OmegaPlate Single 3/8 in Shut-Off Valve Outlet Plate, 1/2 in MIP/F.SWT Connection

Product Description

The Sioux Chief 699-A1-MR is a single 3/8 inch shut-off valve outlet plate with a 1/2 inch MIP/F.SWT connection. This product integrates multiple components into one unit, making installation straightforward and efficient.

• Combines valve, escutcheon, stub out, and bracket in one product
• Compatible with standard 5/8 OD compression stops for easy valve replacement

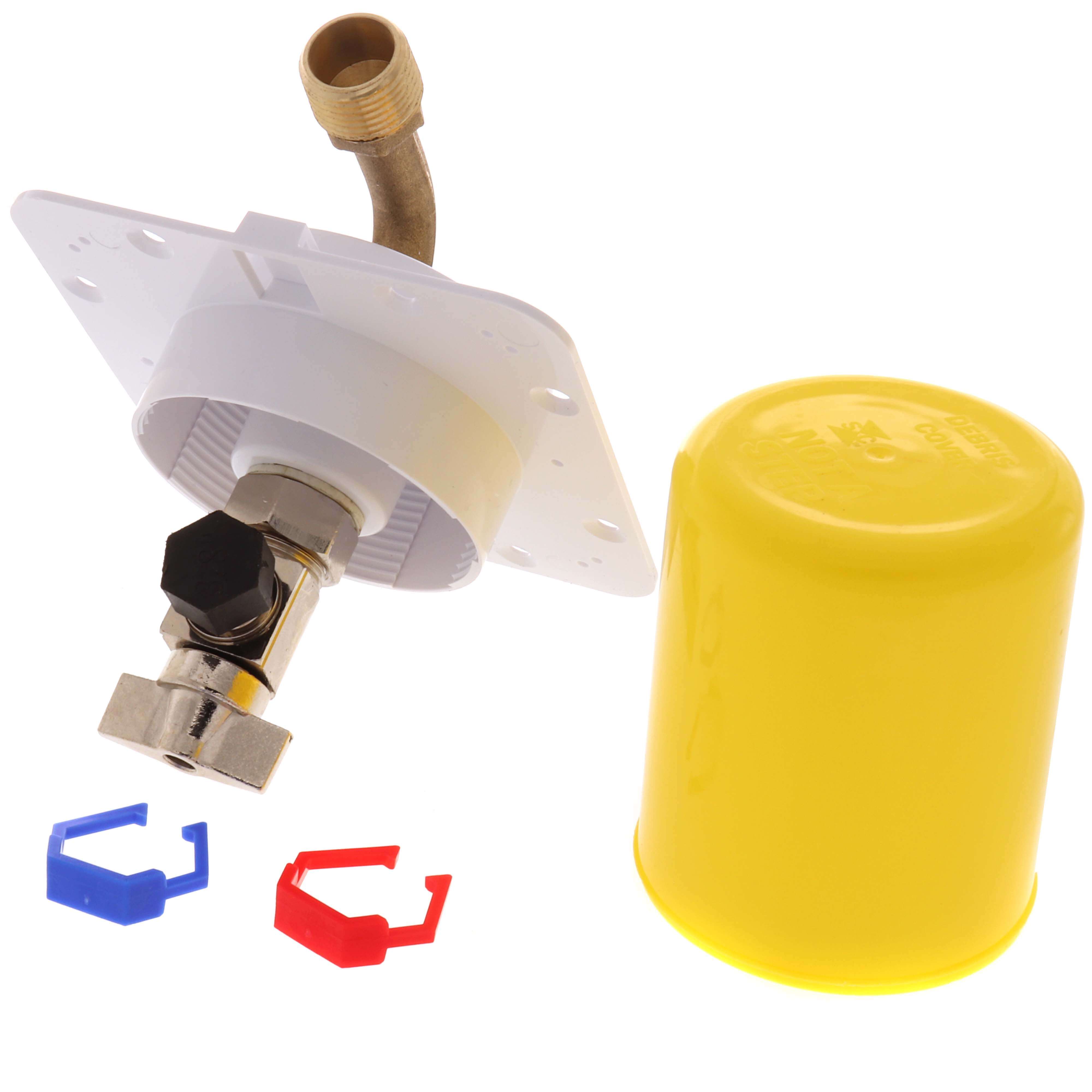

• Debris cover is included to protect the valve during installation

Product Highlights

Designed for easy installation, this outlet plate is suitable for various applications, including lavatories, toilets, and ice makers.

Product Information

Standard Information

• Brand: Sioux Chief
• MPN: 699-A1-MR

Technical Specifications

• Connection Type: 1/2 in MIP/F.SWT
• Frame Size ID: 2-1/2 in
• Frame Size OD: 4 in
• Material, Debris Cover: Polyethylene
• Material, Plate: ABS
• Material, Valve: No Lead Brass
• Maximum Working Pressure: 150 psig
• Maximum Working Temperature: 200 deg F
• Mfg Standards/Approvals: NSF-372 compliant, IAPMO listed plate and valves
• Nominal Size: 3/8 in
• Plate Size: 4-1/2 in
• Type: Outlet Plate Shut-Off Valve
• Valve Size, Extended Plate to Valve Outlet: 2-3/4 in
• Valve Size, Plate to Valve Supply: 1-1/2 in
• Valve Size, Standard Plate to Valve Outlet: 1-7/8 in
