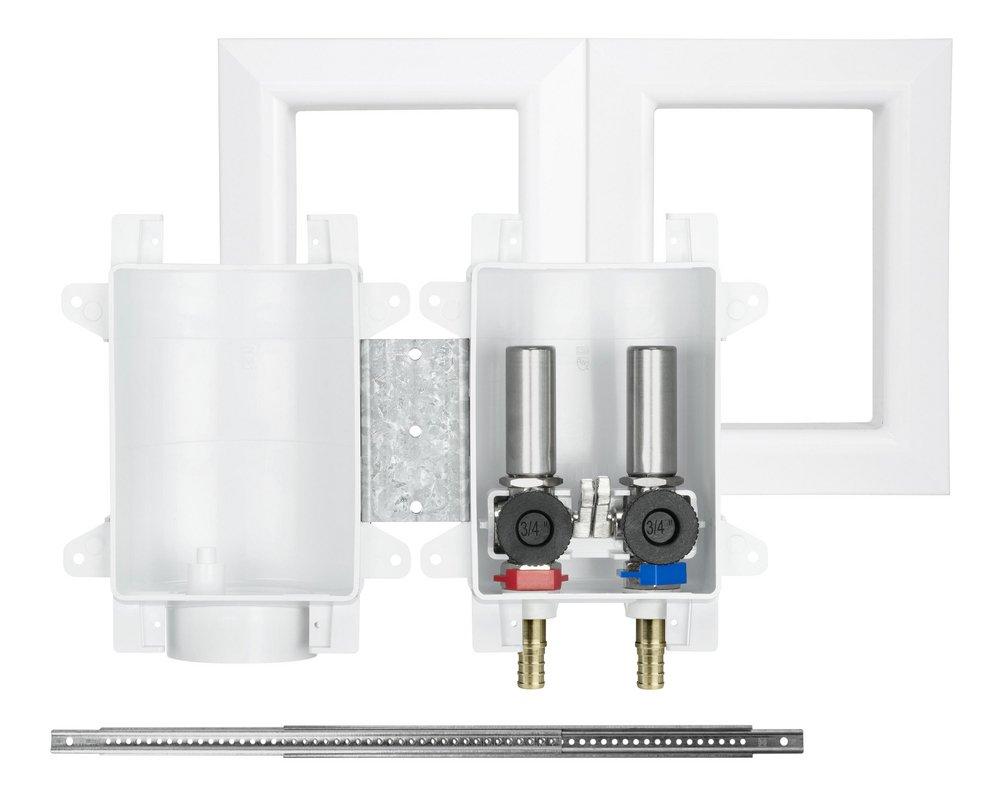

Sioux Chief 696RG2313XF Fire Rated OxBox 4 in x 5-1/2 in x 3-1/2 in Washing Machine F1807 PEX Supply Box

Product Description

The Sioux Chief 696RG2313XF is a fire rated washing machine supply box designed to separate supply and drainage systems efficiently. This unit is made from durable ABS and includes a lead-free brass valve for safety compliance. The OxBox is suitable for both residential and commercial installations.

• Features high-quality quarter-turn ball valves.
• Configurable for mounting from above or below.
• Security features that ensure stable installation over studs.

Product Highlights

This washing machine box offers reliable performance for plumbing systems while maintaining compliance with safety standards.

Product Information

Standard Information

• Brand: Sioux Chief
• MPN: 696RG2313XF

Technical Specifications

• Connection Type: PEX
• Connection Size: 1/2 inch
• Pressure Rating: 150 psi
• Material: ABS Outlet Box/Frame/Arrester Clip, Lead-Free Brass Valve Body
• Height: 7-1/4 inch
• Width: 11-1/2 inch
• Depth: 3-1/2 inch
• Box Size: 4 inch x 5-1/2 inch x 3-1/2 inch
• Valve Included: Yes
• For Use With: Washing Machine
• Includes: Mini-Rester Water Hammer Arrestor
• Drain Placement: Side Drain
• Standards/Approvals: ASME A112.18.1, ASSE 1010, NSF 372, IAPMO Listed
