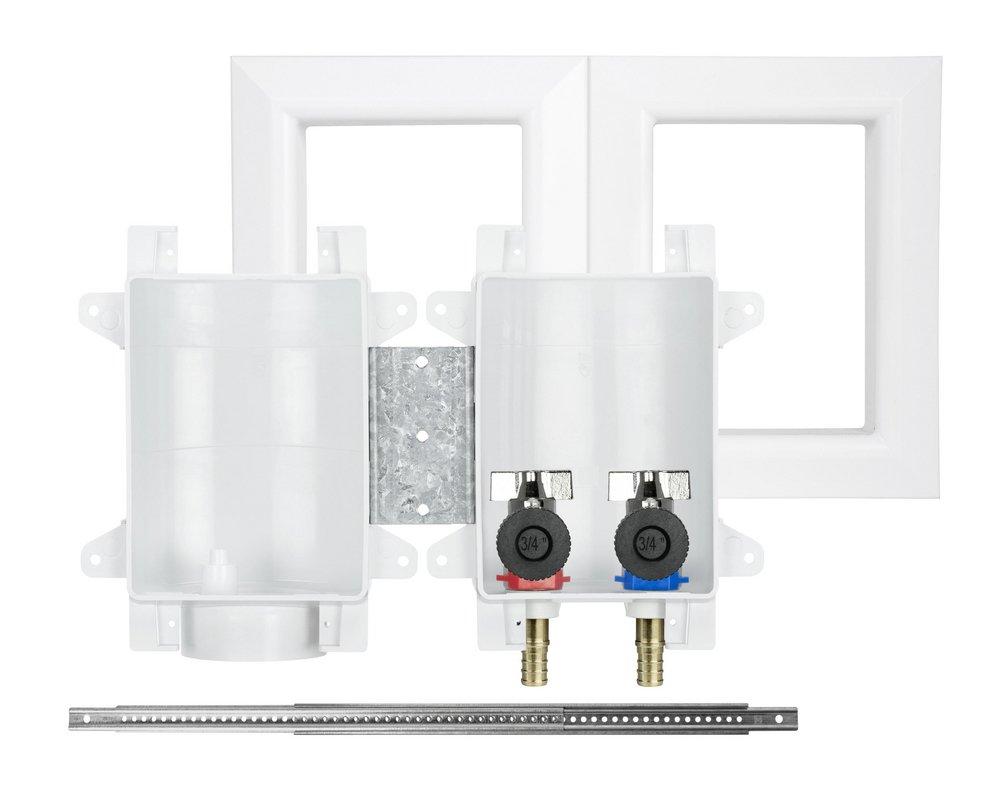

Sioux Chief 696RG2303XF OxBox Washing Machine F1807 PEX Supply Box

Product Description

The Sioux Chief 696RG2303XF is an OxBox washing machine supply box designed for reliable installation. This model features a compact design that separates supply and drainage systems, fitting seamlessly into stud bays. It allows for supply lines to be mounted from either above or below the box for added flexibility.

• Constructed to mount securely to stud or over studs
• Includes lead-free quarter-turn ball valves with three-quarter male hose-thread connections
• Enhanced installation for washing machine outlets

Product Highlights

This washing machine box simplifies plumbing tasks while maintaining compliance with plumbing standards.

Product Information

Standard Information

• Brand: Sioux Chief
• MPN: 696RG2303XF

Technical Specifications

• Type: Washing Machine Boxes
• Connection Type: F1807 (Crimp)
• Dimensions: 4 inches x 5-1/2 inches x 3-1/2 inches
• Material: ABS Plastic
• Valve Type: Lead-Free Chrome Plated Forged Brass
• Working Temperature: 250 degrees Fahrenheit
• Pressure Ratings: Air Pressure 100 PSIG, Testing Water Pressure 250 PSIG
• Frame Opening Size: 3-5/4 inches x 5-1/8 inches
