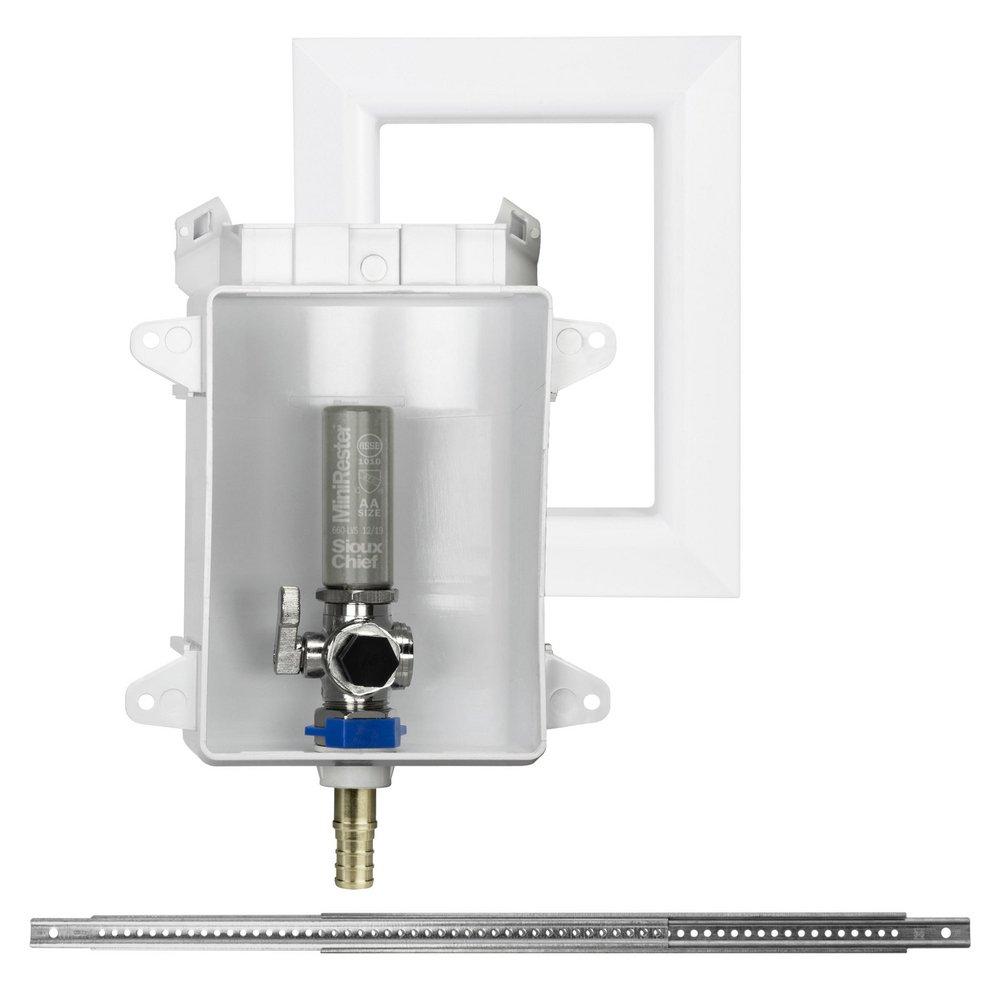

Sioux Chief 696RG1010XF OxBox 4 in x 5-1/2 in x 3-1/2 in Ice Maker F1807 PEX Supply Box

Product Description

The Sioux Chief 696RG1010XF is an OxBox ice maker supply box designed for efficient plumbing applications. This box is suitable for connecting supply lines from both above and below, making it versatile for various installations. The unit features a high-quality quarter-turn ball valve, allowing for easy water shut-off. Its construction ensures durability and reliability in both residential and commercial settings.

• Includes water hammer arrestor for noise reduction
• Securely mounts to studs for stability
• Fits standard 1/2 inch and 1/4 inch connections

Product Highlights

The Sioux Chief OxBox 696RG1010XF simplifies installation while maintaining high performance in plumbing systems.

Product Information

Standard Information

• Brand: Sioux Chief
• MPN: 696RG1010XF

Technical Specifications

• Type: Rough-In Boxes
• Connection Type: F1807 (Crimp)
• Nominal Size: 1/2 inch
• Connection Size: 1/4 inch
• Material: ABS Outlet Box/Frame, Chrome-Plated Forged Brass Valve, Galvanized Steel Bracket
• Valve Type: 1/4 Turn
• Width: 5-3/4 inch
• Depth: 3-1/2 inch
• Height: 7-1/4 inch
• Pressure Rating: 150 psi
• Temperature Rating: 200 deg F
• Includes: Water Hammer Arrestor
• For Use With: Ice Maker
• Frame Opening Width: 3-3/8 inch
• Frame Opening Height: 5-1/8 inch
• Standards/Approvals: ASME A112.18.1, ASTM E-814, E-119, ASSE 1010, UL 1479, NSF-372, IAPMO Listed
