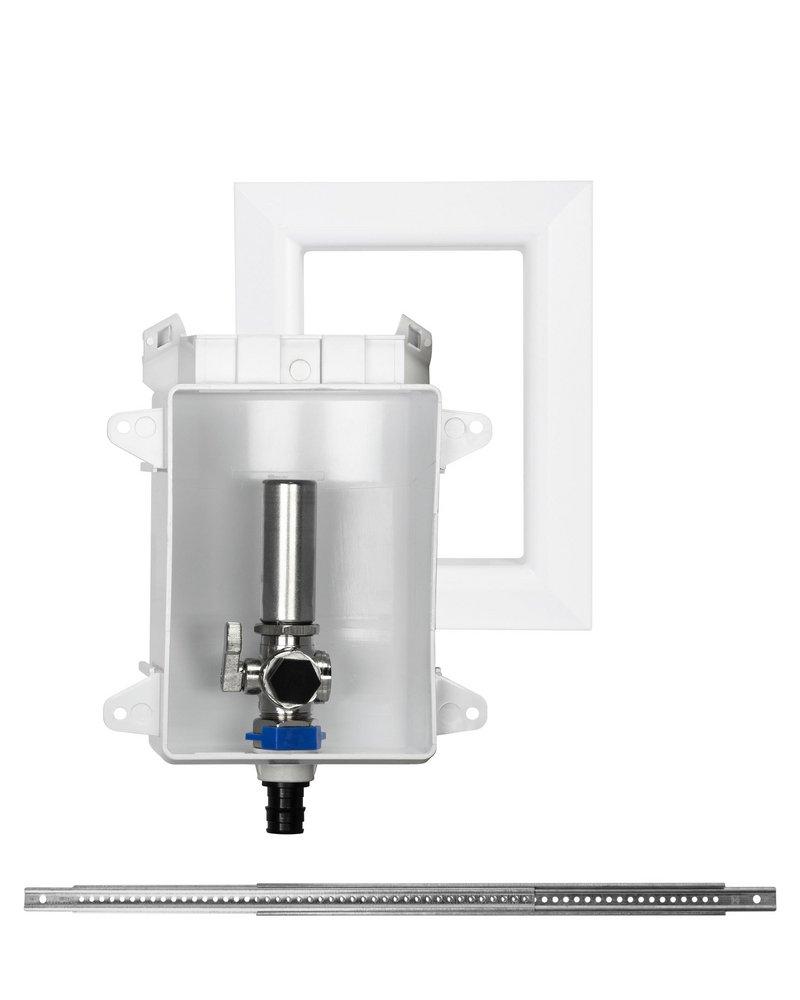

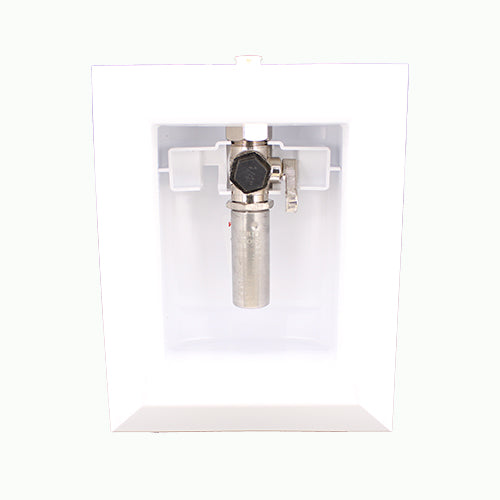

Sioux Chief 696RG1010WF OxBox 4 in x 5-1/2 in x 3-1/2 in Ice Maker F1960 PEX Supply Box

Product Description

The Sioux Chief OxBox 696RG1010WF Ice Maker Supply Box is designed for efficient installation in plumbing systems. This outlet box enables a reliable connection for ice makers using F1960 PEX. Its compact dimensions of four inches in width and three and a half inches in depth provide a snug fit in tight spaces. The box mounts securely to studs for enhanced stability and support.

• Includes a high-quality quarter-turn ball valve
• Supply lines can be connected from above or below
• Separates supply and drainage systems

Product Highlights

This OxBox houses an arrester and bracket that work together to minimize water hammer effects in the plumbing system. It is also built from ABS plastic for durability and long-lasting performance.

Product Information

Standard Information

• Brand: Sioux Chief
• MPN: 696RG1010WF

Technical Specifications

• Material: ABS Plastic
• Nominal Size: 1/2 inch
• Connection Size: 1/4 inch
• Box Size: 4 inches W x 3-1/2 inches D x 5-1/2 inches H
• Pressure Rating: 150 psi
• Temperature Rating: 200 degrees F
• Includes: Water Hammer Arrestor
• Standards/Approvals: ASME A112.18.1, ASTM E-814, IAPMO Listed
