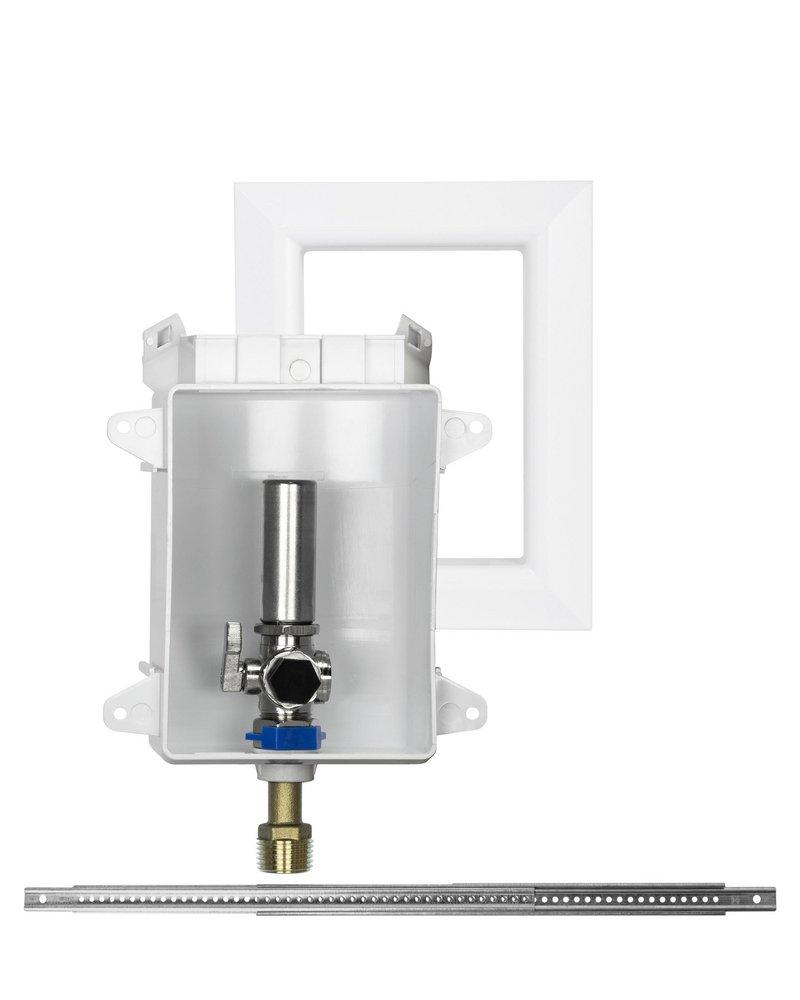

Sioux Chief 696RG1010MF Ice Maker Outlet Box with Water Hammer Arrester Fire-Rated

Product Description

The Sioux Chief 696RG1010MF Ice Maker Outlet Box provides a secure and reliable installation for your refrigerator water line. This fire-rated outlet box includes a lead-free, quarter-turn ball valve and a built-in water hammer arrester to prevent noise and damage in water pipes.

• Easy to install with female soldered 1/2-inch connections.
• Constructed from durable ABS plastic and features a fire-rated intumescent pad.
• Comes complete with a frame, mounting hardware, and a stainless steel water hammer arrester.

Product Highlights

Designed for long-lasting performance with chrome-plated, forged brass body in the valve ensuring resistance against corrosion and high temperatures.

Product Information

Technical Specifications

• Dimensions of Box: 4 inches width x 3.5 inches depth x 5.5 inches height.
• Material: ABS plastic for box, Galvanized Steel for brackets.
• Valve Details: 1/4 turn plain ball valve made from chrome-plated, forged brass.
• Working Conditions: Supports up to 250 degrees Fahrenheit and 250 PSI water pressure.
• Standards: Meets ASME A112.18.1, ASTM E814/E119, and NSF 61G.
