Sioux Chief 696RG1000XF OxBox Ice Maker Box Firerated

Product Description

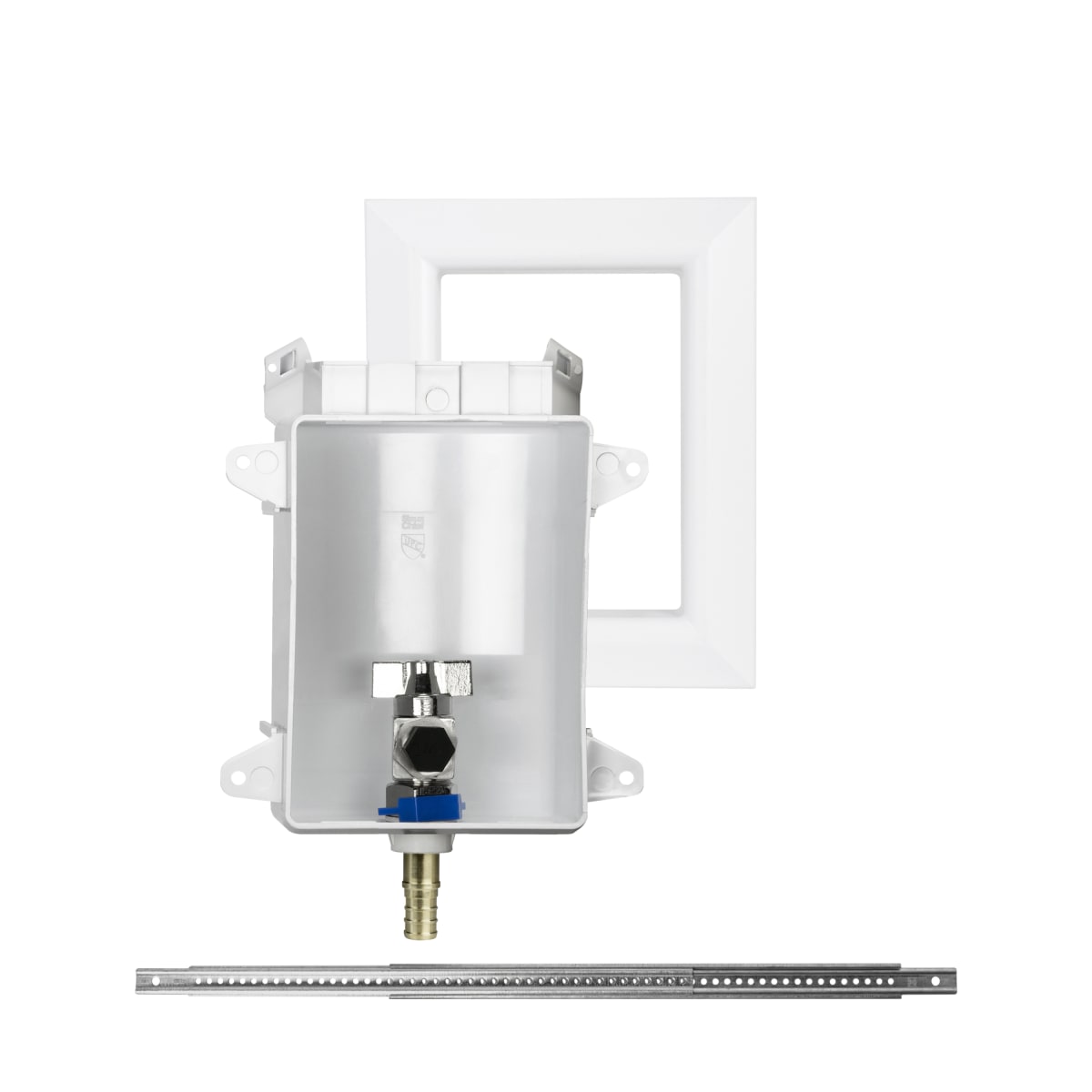

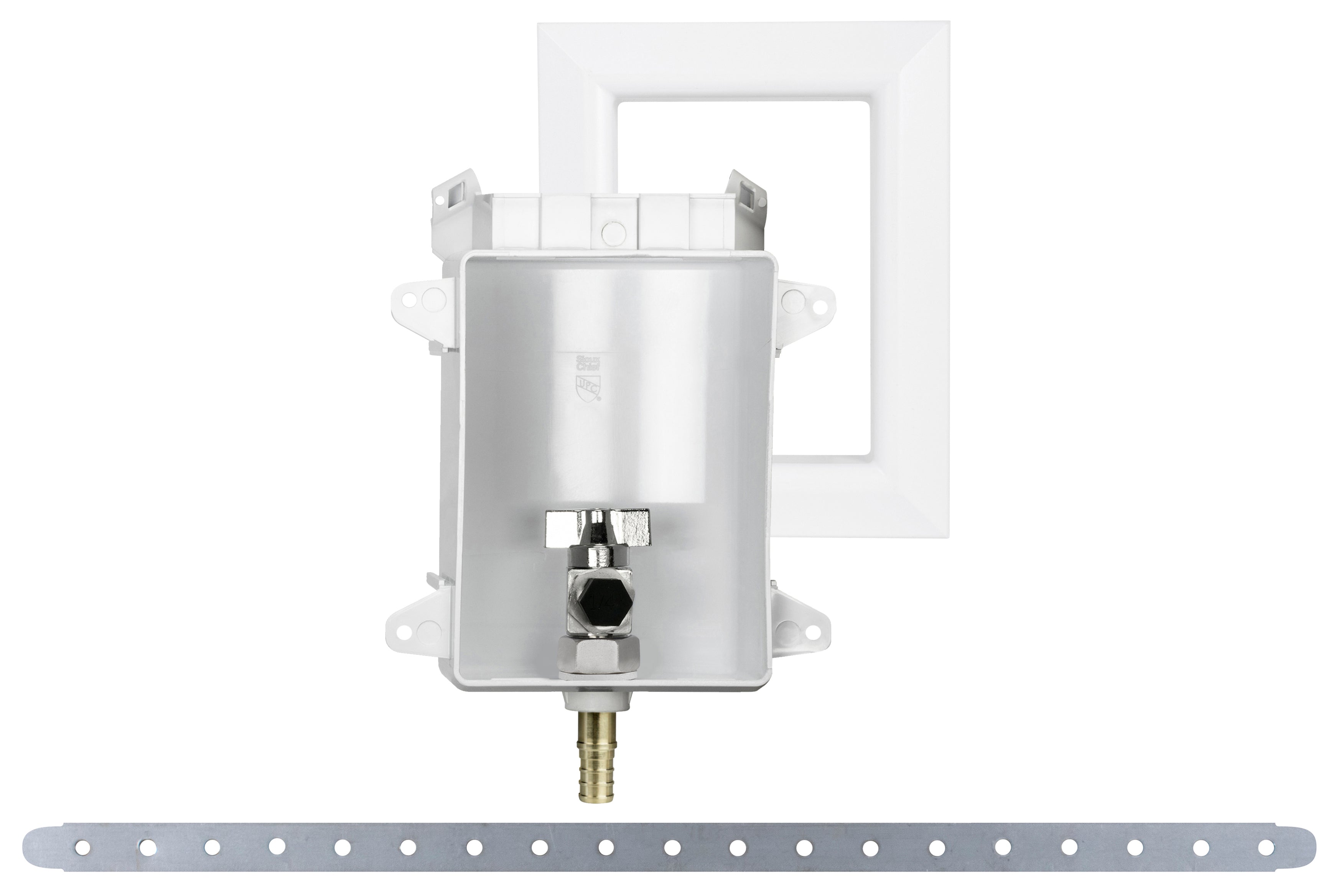

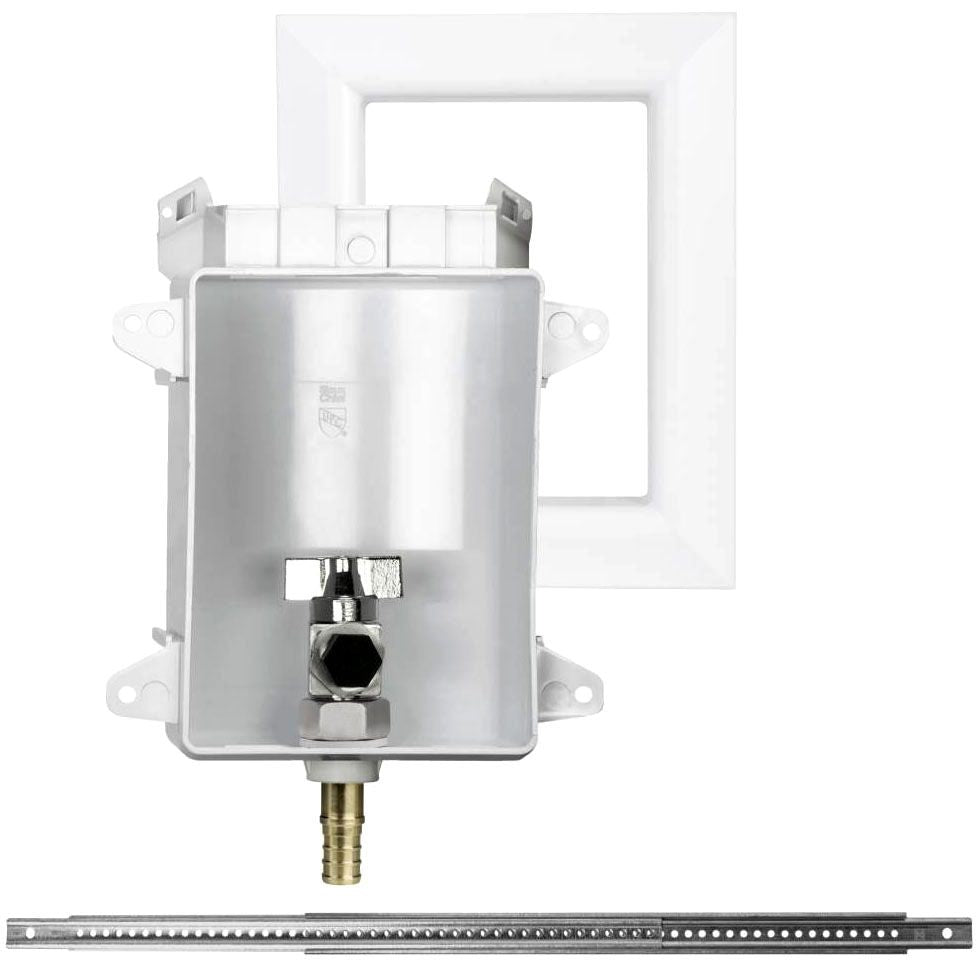

The SIOUX CHIEF 696RG1000XF OxBox Ice Maker Box is fire-rated and includes a frame. It features a 1/2 inch PEX pipe connection and is constructed from ABS plastic. The box measures 4 inches in width, 3-1/2 inches in depth, and 5-1/2 inches in height, with a face plate size of 5-3/4 inches width x 7-1/4 inches height.

• Boxes Mount Securely to Stud or Over Studs
• Box Mounts Easily to Stud for Top or Bottom Supply
• High-Quality Quarter-Turn Ball Valve

Product Highlights

This ice maker outlet box is fire-rated and includes a quarter-turn ball valve and frame for easy installation.

Product Information

Standard Information

• Brand: SIOUX CHIEF
• Manufacturer Part Number: 696RG1000XF
• Country of Origin: CN

Technical Specifications

• Type: Rough-In Boxes
• Connection_Type: F1807 (Crimp)
• Manufacturer: Sioux Chief
• Model #: 696
• PDW MFR CAT: 696RG1000XF
• Pittman #: 212448
• UPC: 739236100429
• Brand: SIOUX CHIEF
• Item Number: 696RG1000XF
• Connection 1 Size: 1/2 IN
• Connection 1 Type: F1807
• Connection 2 Size: 1/4 IN
• Connection 2 Type: Comp.
• Fire-Rated?: Yes
• Description: Nolead Fr Oxbox Ice F1807 W/frame
• Country of Origin: United States
• Material: ABS
• Domestic/Import: Domestic
• Inlet Size: 1/2 in
• Inlet Type: F1807 PEX Crimp
• Pressure Rating: 250 psig
• Series: 696R
• Temperature Rating: 250 deg F
• Drain Connection Size (in): 1/2 x 1/4 in
• Interior Depth (in): 3-1/2 in
• Water Connection Size (in): 1/2 x 1/4 in
