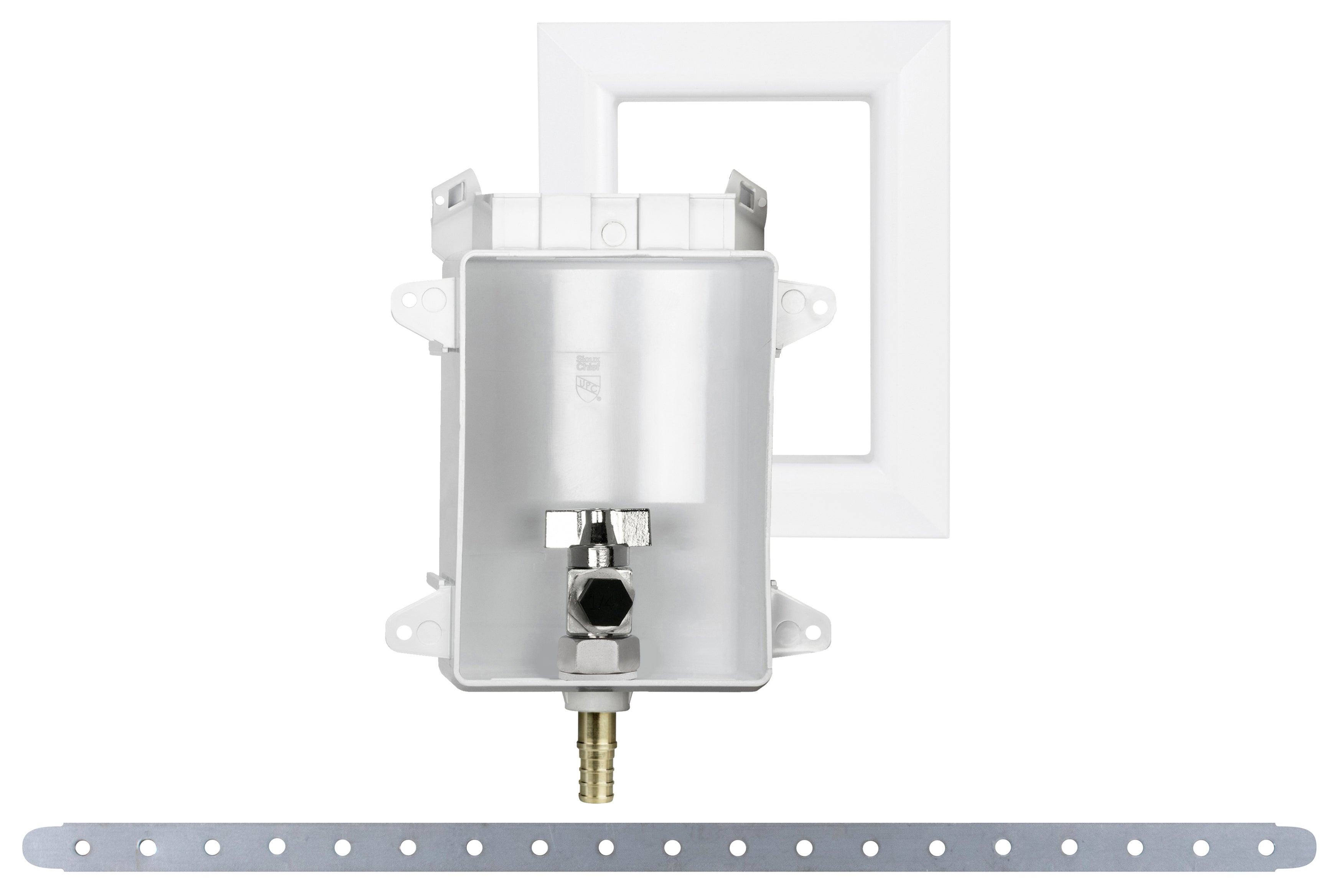

Sioux Chief 696RG1000XF Nolead Fr Oxbox Ice F1807 W/Frame

Product Description

The SIOUX CHIEF 696RG1000XF Nolead Fr Oxbox Ice F1807 W/Frame is designed for plumbing supply systems. This fire-rated ice maker outlet box features a 1/2" PEX F1807 Crimp connection and quarter-turn ball valves with a 1/4 in OD compression outlet. The unit is constructed from ABS and includes a galvanized steel bracket.

• Boxes mount securely to stud or over studs
• Box mounts easily to stud for top or bottom supply
• High quality quarter-turn ball valves with 1/4 in OD compression outlet connection

Product Highlights

Fire-rated ABS frame, 250 deg F max working temperature, and 250 psi max working/testing water pressure.

Product Information

Standard Information

• Brand: SIOUX CHIEF
• Manufacturer Part Number: 696RG1000XF
• Country of Origin: CN

Technical Specifications

• Brand: SIOUX CHIEF
• Item Number: 696RG1000XF
• UPC: 739236100429
• Country of Origin: CN
• UM: EA
• PGB: Supply > Access > Ice Maker - 1/4" Outlet > OxBox™ 1/4" Outlet, Fire-Rated > Non-Arrester > With Frame
• Series: 696R
• Type: Fire-Rated
• Material: ABS
• Dimensions: 7-1/4 in H x 5-3/4 in W
• Manufacturer: Sioux Chief
• Manufacturer #: 696RG1000XF
• Inlet Type: F1807 PEX Crimp™
• Pressure Rating: 250 psig
• Inlet Size: 1/2 in
• Temperature Rating: 250 deg F
• Domestic/Import: Domestic
