Sioux Chief 6962313MF Laundry Box Sweat with Arrestors

Product Description

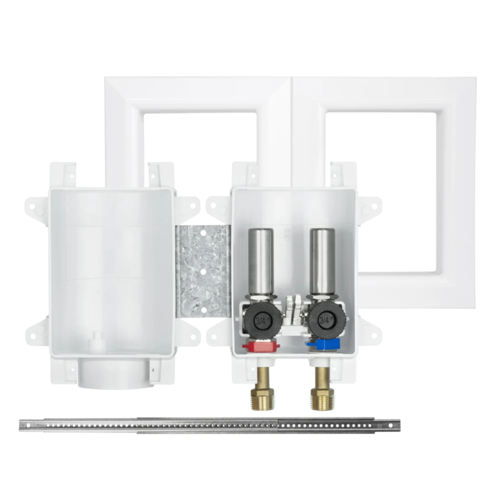

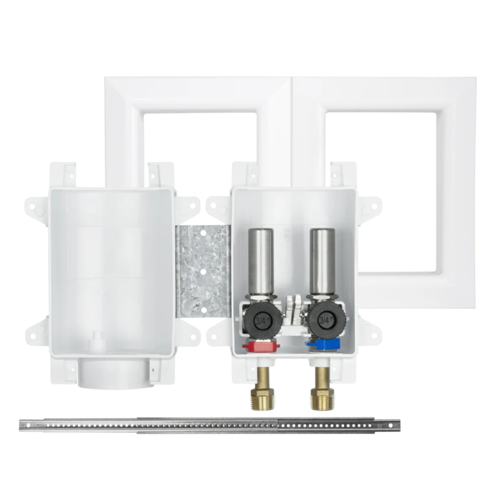

The Sioux Chief 6962313MF is a laundry outlet box designed for washing machines. This unit features a one-half inch female soldered pipe connection and a three-fourths inch male hose threaded connection. The box dimensions are four inches wide, three and a half inches deep, and five and a half inches tall.

• Includes a one-quarter turn forged brass ball valve.
• Provides a lead-free assembly according to ASME A112.18.1 standards.
• Compact design fits neatly between studs.

Product Highlights

The Sioux Chief laundry box separates supply and drain systems within the wall, ensuring better organization and functionality in plumbing configurations.

Product Information

Standard Information

• Brand: Sioux Chief
• Product Type: Washing Machine Outlet Box

Technical Specifications

• MPN: 6962313MF
• Dimensions: 4 inches Width x 3.5 inches Depth x 5.5 inches Height
• Face Plate Size: 11.5 inches Width x 7.25 inches Height
• Material: ABS Plastic
• Valve Type: 1/4 Turn Forged Brass Ball Valve
• Pressure Rating: 150 PSIG
• Applicable Standards: ASME A112.18.1, CUPC, IAPMO, NSF 372, ASSE
• Additional Features: Includes debris cover, galvanized steel bracket, arrester
