Sioux Chief 696-G2313VF OxBox 3/4 inches Outlet

Product Description

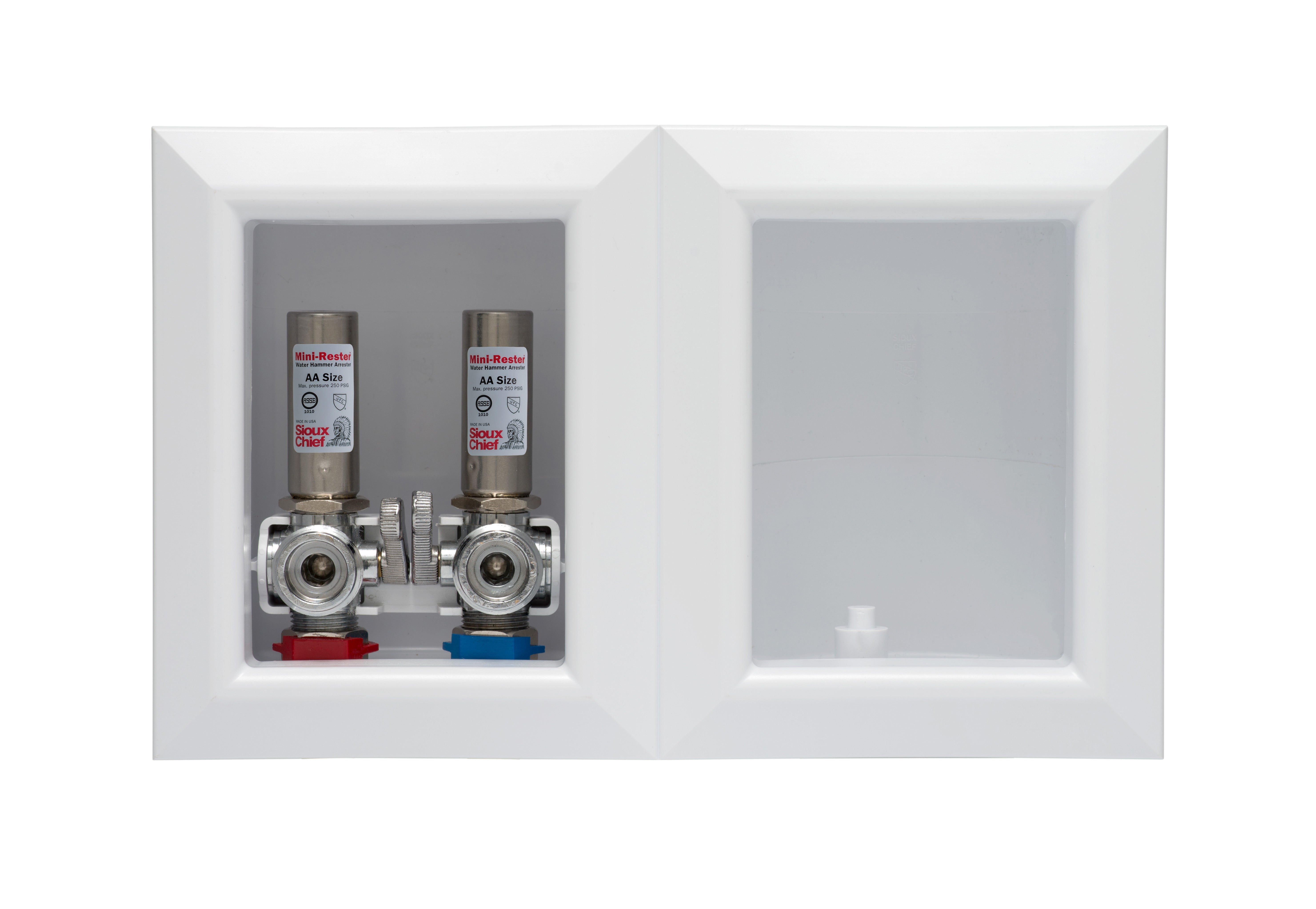

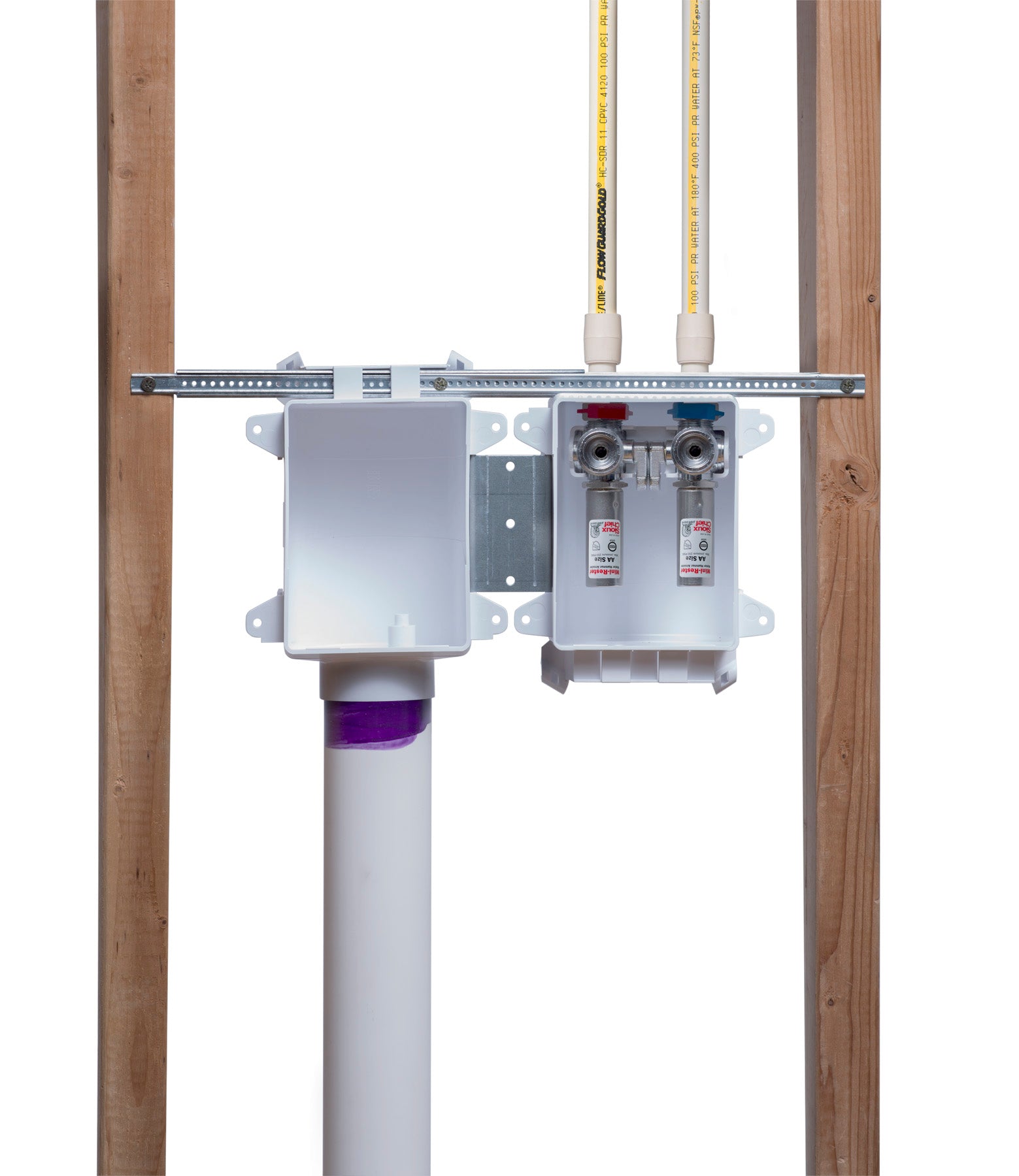

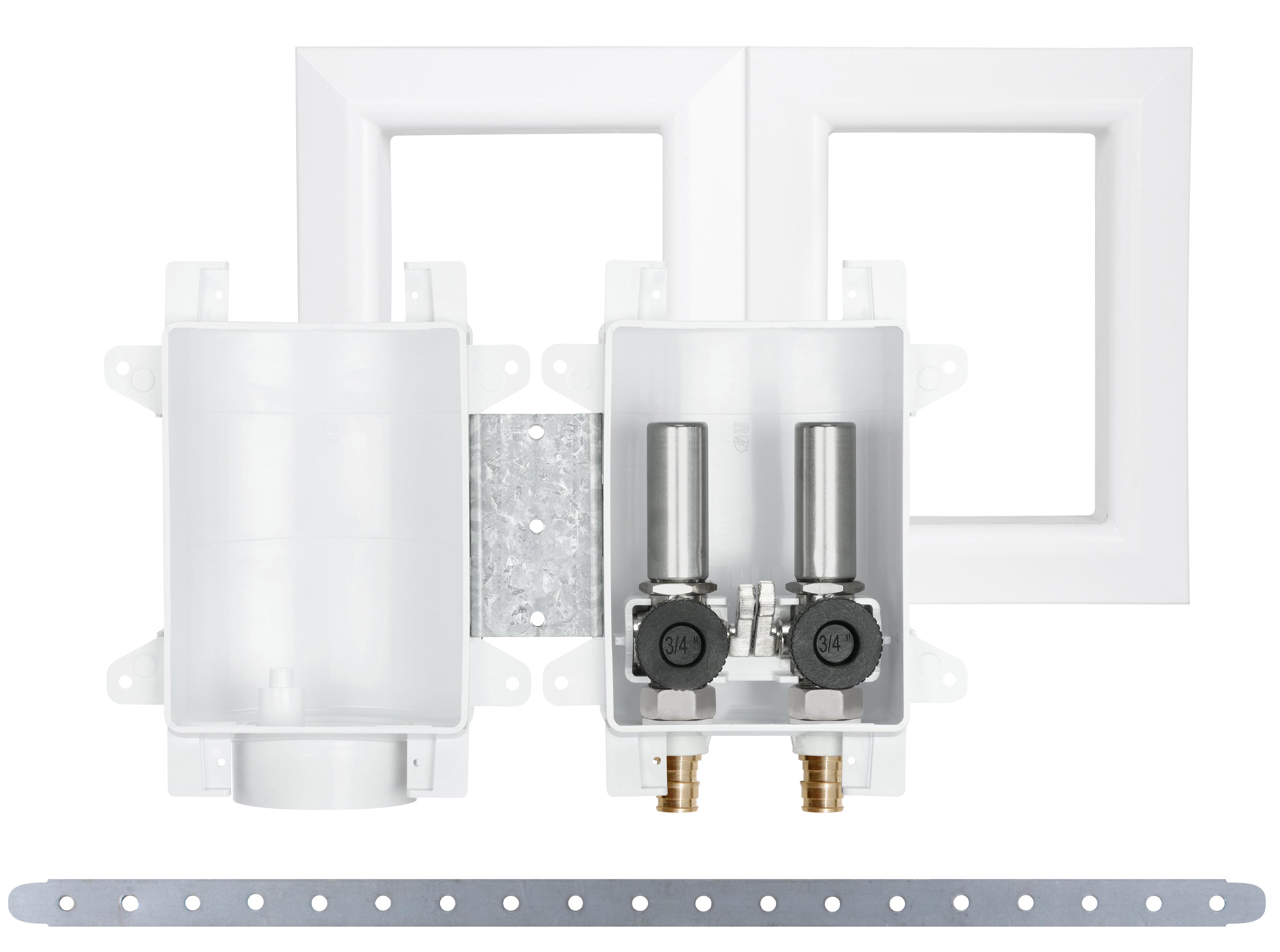

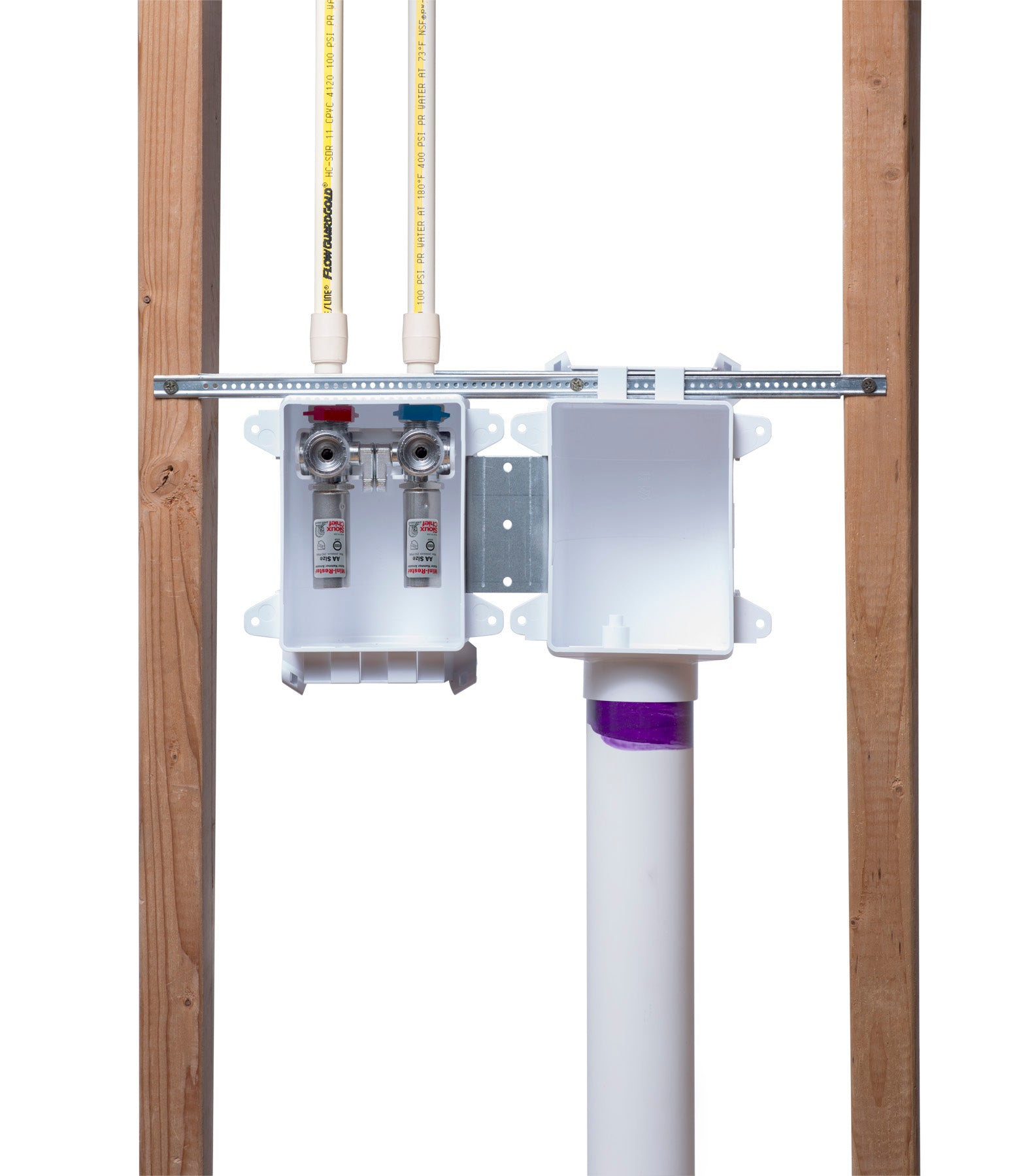

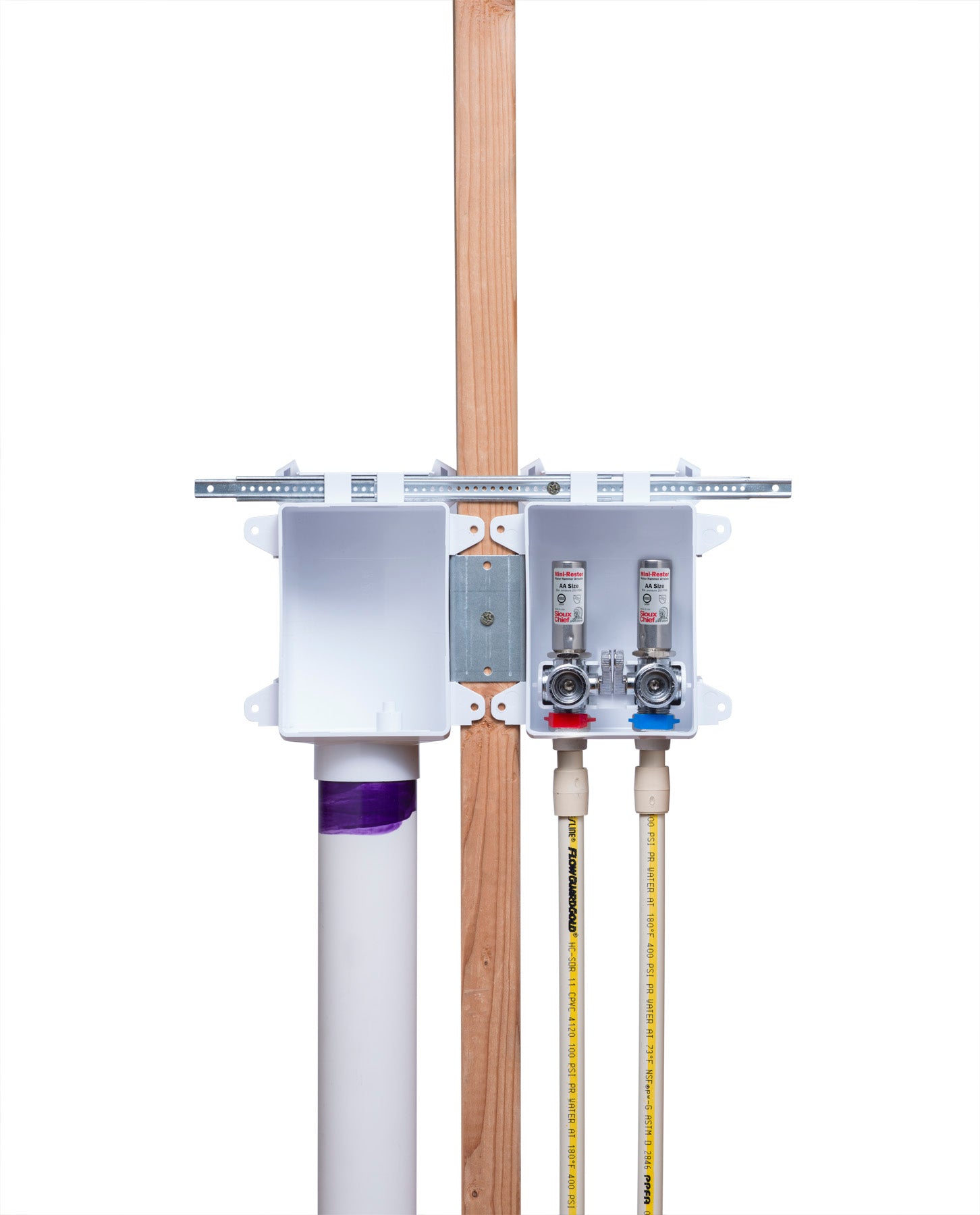

The SIOUX CHIEF 696-G2313VF OxBox™ is designed for residential and commercial plumbing supply and drainage systems. It accommodates supply lines from above or below and can be secured directly over a vertical stud or between studs using the provided bracket. Features quarter-turn ball valves with hose connections and includes a debris cover for protection during rough-in.

• Durable ABS boxes with quarter-turn ball valves.
• Mounts securely over stud or between studs.
• Test cap in drain box removes easily with pliers.

Product Highlights

The OxBox™ features separate boxes for supply and drainage, ensuring a flexible layout and easy installation.

Product Information

Standard Information

• Brand: SIOUX CHIEF
• Manufacturer Part Number: 696-G2313VF

Technical Specifications

• Arrester?: Yes
• Brand: Sioux Chief
• Connection 1 Size: 1/2 IN
• Connection 1 Type: F1960
• Connection 2 Size: 3/4 IN
• Connection 2 Type: Hose Thread
• Fire-Rated?: No
• Type: With Frame
• Includes Box: Yes
• Includes Water Hammer Arresters: Yes
• Separate Boxes: Yes
• Height (inches): 5.125
• Width (inches): 10.0
• Depth (inches): 3.50
• Faceplate Height (inches): 7.25
• Valve Mount: Bottom
• Domestic/Import: Domestic
• Inlet Size: 1/2 in
• Inlet Type: Viega PureFlow PEX
• Material: ABS
• Outlet Type: Viega PureFlow PEX
• Pressure Rating: 250 psig
• Series: 696
• Temperature Rating: 250 deg F
